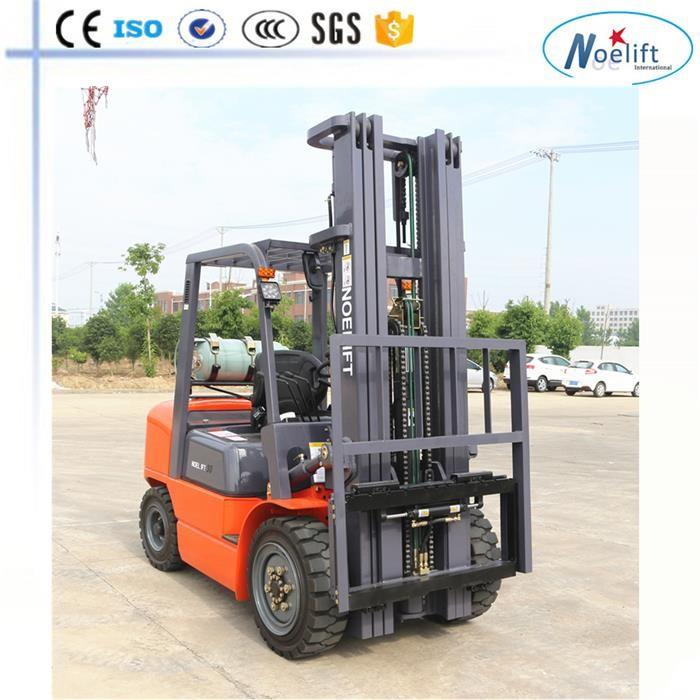

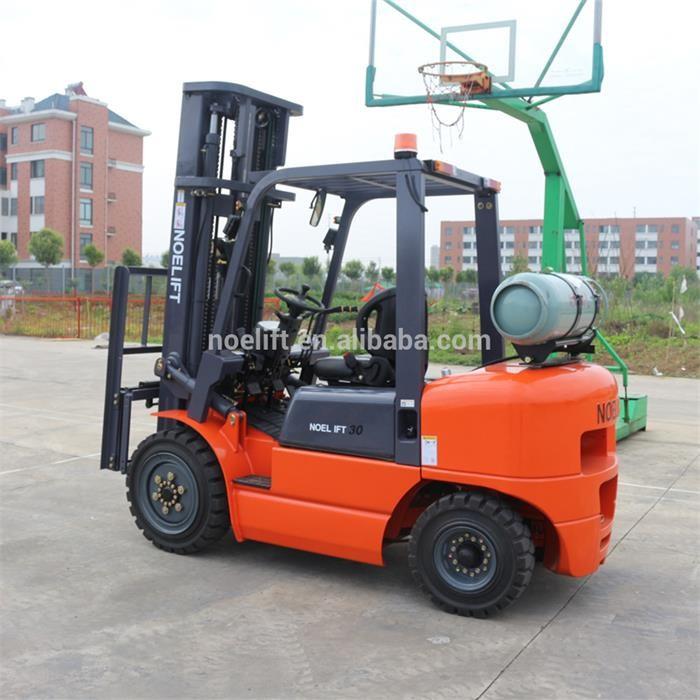

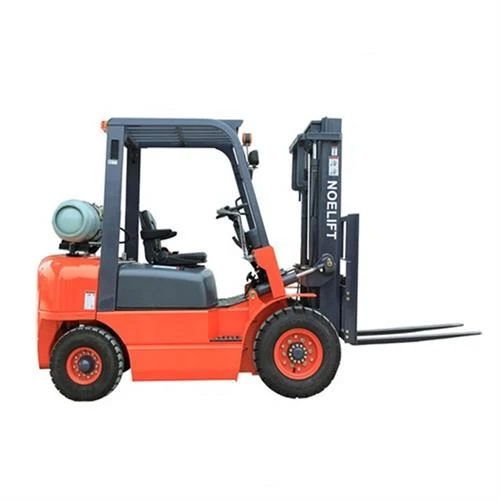

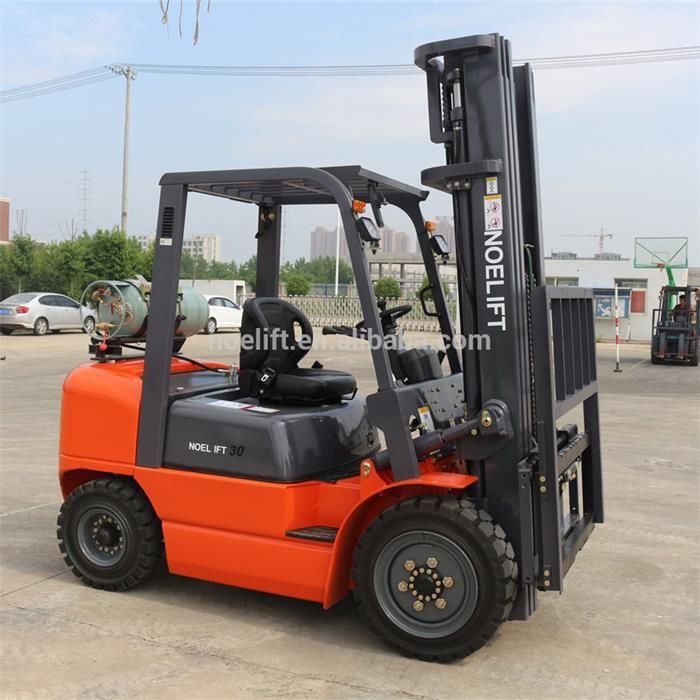

Gasoline LPG Forklift With Japanese Technology And Spare Parts
capacity: 1500kg, 2000kg, 2500kg, 3000kg, 3500kg
lift: 3000mm-6000mm
mast: 2 stages 3 maters
main configuration: GQ-4Y, IMPCO conversion device, electronic shift, electronic flameout, warning light, armrest seat belt
Send Inquiry
Product Introduction
Details Images
Our company
Certifications
| Model | unit | FD15 | FD20 | FD25 | FD30 | FD35 | FD40 |
| Power type | LPG | ||||||
| Rated capacity | kg | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 |
| Load center | mm | 500 | |||||
| Operator type | Drive in seat | ||||||
| Height of mast | mm | 1985 | 2000 | 2000 | 2065 | 2180 | 2150 |
| Free lift height | mm | 125 | 170 | 170 | 160 | 170 | 150 |
| Wheelbase | mm | 1400 | 1600 | 1600 | 1700 | 1700 | 1900 |
Min. turning radius (outside) | mm | 2060 | 2170 | 2240 | 2400 | 2420 | 2700 |
| Fork size | mm | 920*100*35 | 1070*100*40 | 1070*125*45 | 1070*125*50 | 1070*130*50 | |
| Quantity of wheels | 2X/2 | ||||||
| Type of tyres | Penumatic | ||||||
| Battery | v/ah | 12/80 | |||||
| Total weight | kg | 2680 | 3320 | 3680 | 4270 | 4700 | 5310 |
