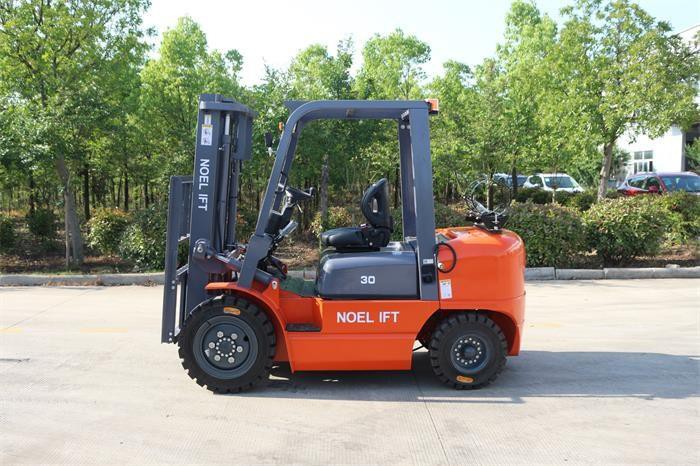

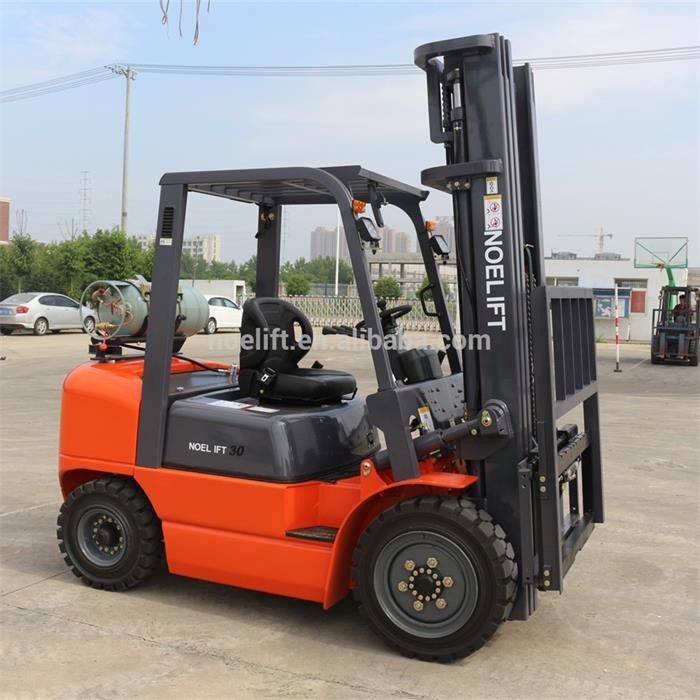

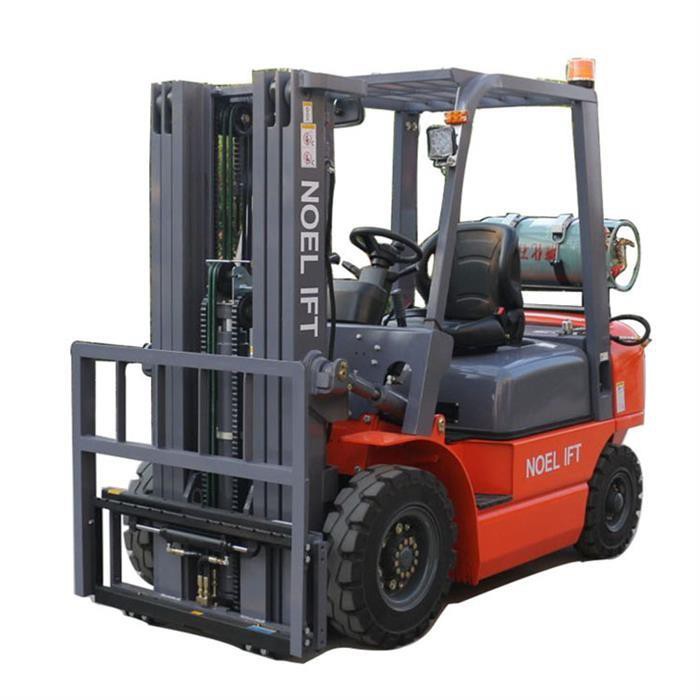

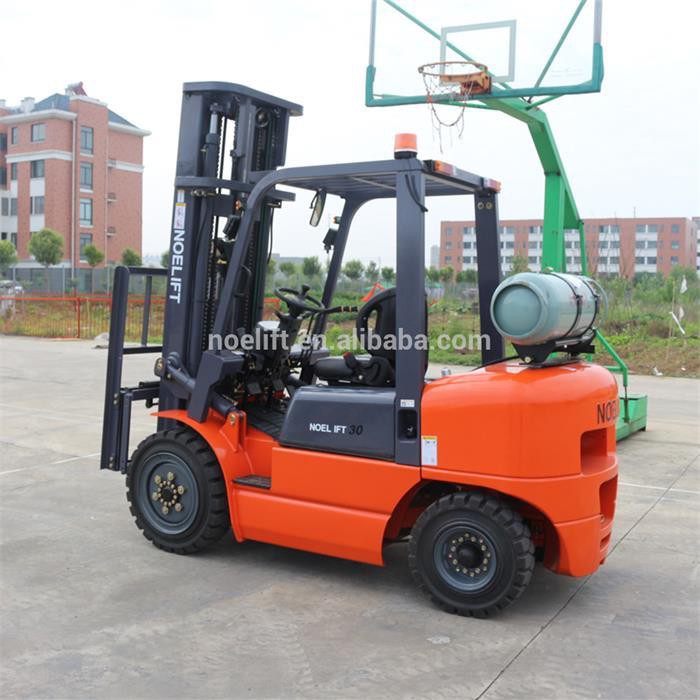

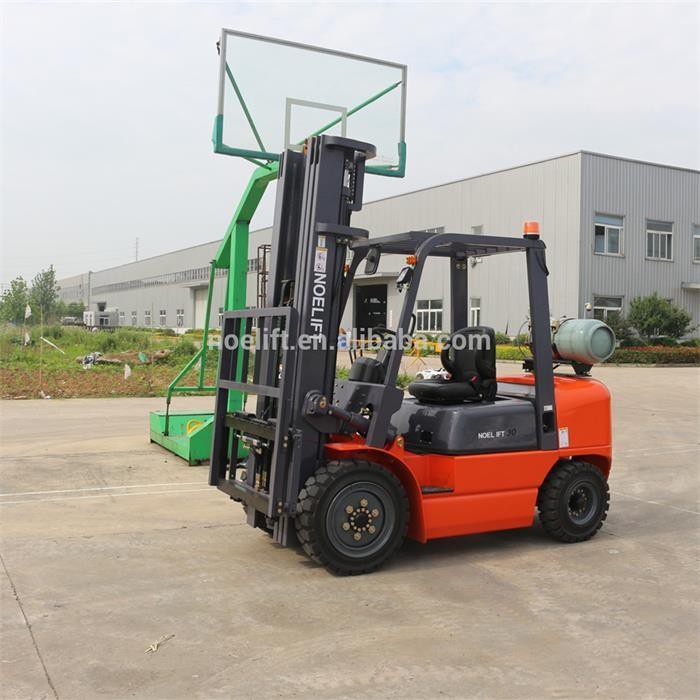

Gasoline LPG Forklift With CE Certification Truck
video

Gasoline LPG Forklift With CE Certification Truck

capacity: 1500kg, 2000kg, 2500kg, 3000kg, 3500kg lift: 3000mm-6000mm mast: 2 stages 3 maters main configuration: GQ-4Y, IMPCO conversion device, electronic shift, electronic flameout, warning light, armrest seat belt
Send Inquiry
Product Introduction

gasoline forklift Main Specification:


1. Standard China high pressure common rail engine, optional Japan Isuzu engine;


2. Automatic hydraulic transmission with TCM technology;


3. Standard 2-stage 3000mm mast, optional 3-stage 4500mm mast and others;


4. Standard 920/1070mm fork, optional 1220mm and others fork;


5. Optional side shifter, fork positioner, paper roll clamp, bale clamp and other attachments;


6. Standard pneumatic tire, optional solid tire and non mark tire;


7. Warning and rear light;


8. Special-big radiator for top-hot area.

double-rear-wheel-3-stage-mast-LPG (1)

Details Images


FGL细节


Our company

company

stacker

forklift 1

forklift 2

forklift 3

forklift

forklift4





Certifications







QQ图片20181211164222(1)


Model
unitFD15FD20FD25FD30FD35FD40
Power type
LPG
Rated capacitykg150020002500300035004000
Load centermm500
Operator type
Drive in seat
Height of mastmm198520002000206521802150
Free lift heightmm125170170160
170150
Wheelbasemm1400160016001700
17001900

Min. turning radius

(outside)

mm206021702240240024202700
Fork sizemm920*100*351070*100*401070*125*451070*125*501070*130*50
Quantity of wheels
2X/2
Type of tyres
Penumatic
Batteryv/ah12/80
Total weightkg2680
33203680427047005310
