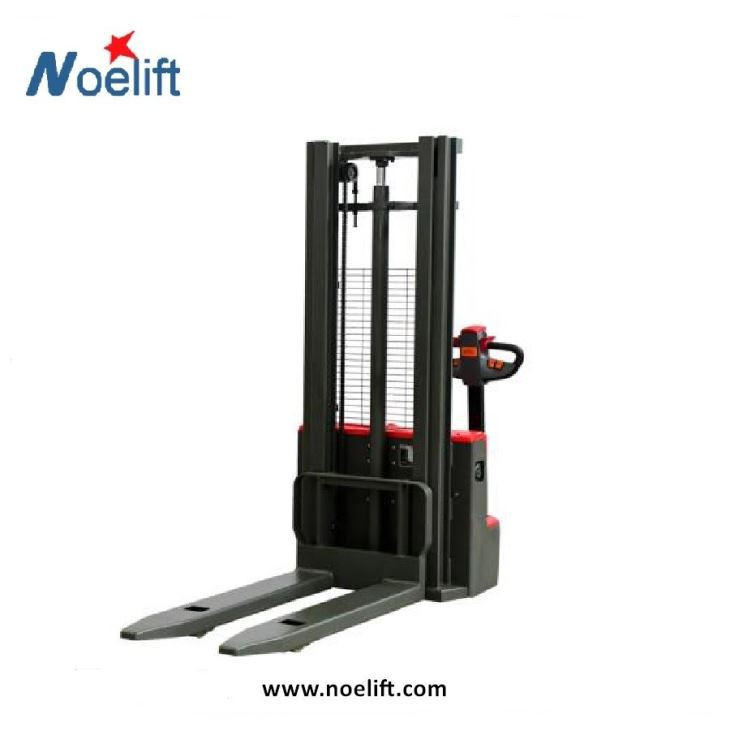

1.0-1.5T Electric Walkie Stacker With MAX Lifting Height 3000mm
1.0-1.5T Electric Walkie Stacker With MAX Lifting Height 3000mm
Electric Walkie Stacker adopts the latest permanent magnet drive technology and has strong power with a maximum load of 1.5T.
●Short distance handling;
● short distance stacking;
● Ideal tools for loading, unloading and handling cargo in warehouses, supermarkets, workshops, and homes.
Send Inquiry
Product Introduction
1.0-1.5T Electric Walkie Stacker with MAX lifting height 3000mm
Main Features:
1.Electric walkie stacker use DC permanent magnet drive motor which provide strong power and excellent performance;
2.Maintenance-free battery;
3.Wide-view gantry design to improve work efficiency;
4. The whole forklift design is more reasonable with low center of gravity, small size, and low self-weight.
| Brand | NOELIFT | NOELIFT | |
| Model | TBD10 | TBD15 | |
| Power Type | Battery | Battery | |
| Operation Type | Walkie | Walkie | |
| Service weight(incl. battery) | kg | 560 | 560 |
| Rated Capacity | Q(kg) | 1000 | 1500 |
| Load Center | C(mm) | 500 | 500 |
| Lifting height | h3(mm) | 2500 | 2500 |
| Forks size | l/e/s(mm) | 1150/160/60 | 1150/160/60 |
| Front Overhang | x(mm) | ||
| Turning radius | Wa(mm) | 1440 | 1440 |
| Max. climbing ability | %(tanθ ) | 3/6 | 3/6 |
| Driving speed(load/unload) | km/h | 3.5/4 | 3.5/3.6 |
| Lifting speed(load/unload) | mm/s | 110/180 | 73/107 |
| Lowering speed(load/unload) | mm/s | 130/160 | 85/115 |
