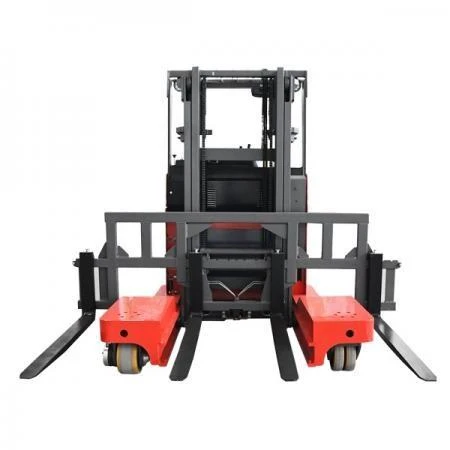

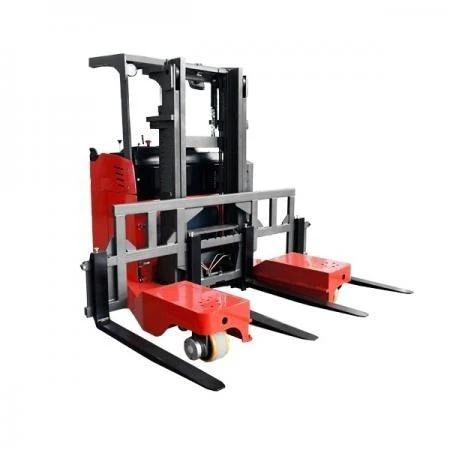

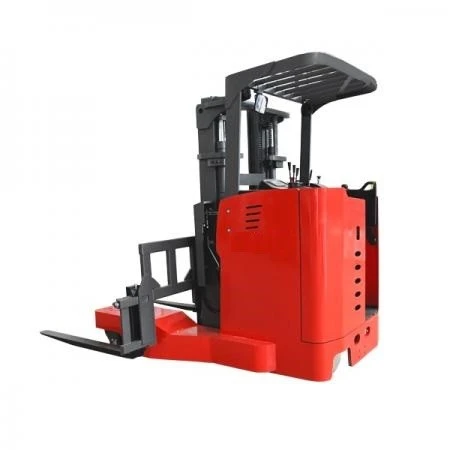

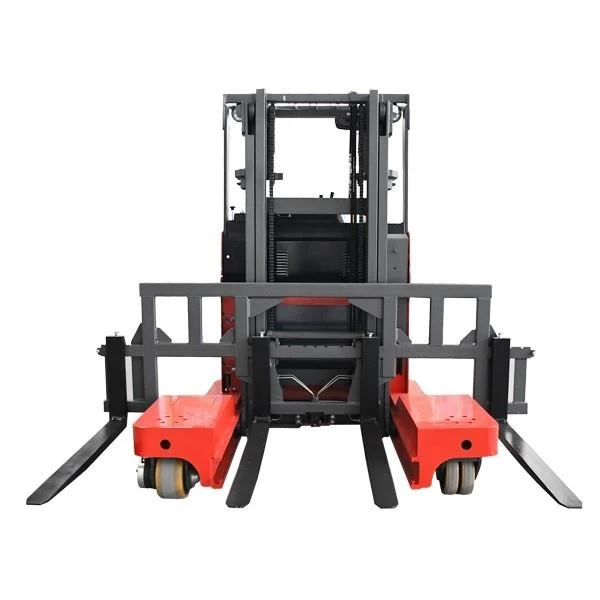

2.5 Ton 4 Direction Reach Truck
4 direction reach truck is used for long material handling in the very narrow aisle, lift height is 3m-8m, it can do side traveling without turning, the best choice for steel pipe, wood, rebar, metal profiles, and others, with the following features:
1.Very narrow aisle working
2.Long material handling
3.Increase warehouse capacity
4.High-cost performance
Send Inquiry
Product Introduction
2.5 Ton 4 Direction Reach Truck For Long Material Using
4 direction reach truck is used for long material handling in the very narrow aisle, lift height is 3m-8m, it can do side traveling without turning, the best choice for steel pipe, wood, rebar, metal profiles, and others, with the following features:
1. Very narrow aisle working
2.Long material handling
3.Increase warehouse capacity
4.High-cost performance
| Brand | NOELIFT | NOELIFT | |
| Model | TFB2530 | TFB2545 | |
| Power Type | Battery | Battery | |
| Operation Type | Stand on | Stand on | |
| Service weight(incl. battery) | kg | 3700 | 3900 |
| Rated Capacity | Q(kg) | 2500 | 2500 |
| Load Center | C(mm) | 500 | 500 |
| Lifting height | h3(mm) | 3000 | 4500 |
| Forks size | l/e/s(mm) | 920/100/45 | 920/100/45 |
| Front Overhang | x(mm) | 175 | 175 |
| Turning radius | Wa(mm) | 1975 | 1975 |
| Max. climbing ability | %(tanθ ) | ≤10 | ≤10 |
| Driving speed(load/unload) | km/h | 7.9/9 | 7.9/9 |
| Lifting speed(load/unload) | mm/s | 220/300 | 220/300 |
| Lowering speed(load/unload) | mm/s | 310/260 | 310/260 |
