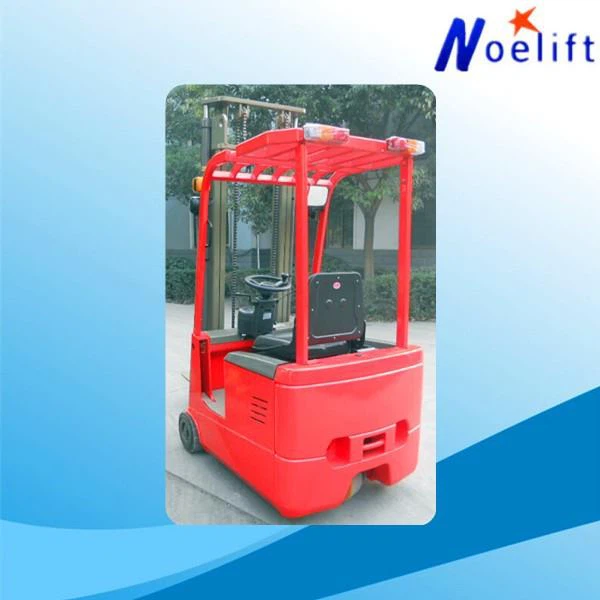

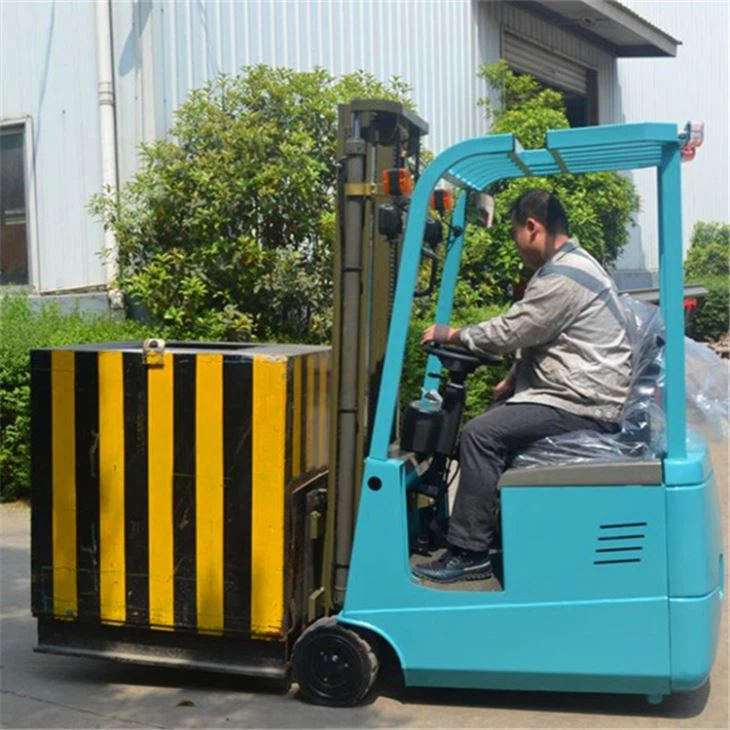

Electric Drive Seat Forklift 1.0ton 3000mm

2

Model

TKA10-30

TKA15-30

3

Load capacity Kg

1000

1500

4

Load center mm

500

500

5

Max. lifting height mm

3000

3000

6

Tilting angle(forward- backward) deg

2/4

2/4

7

Free lift mm

0

0

8

Wheel type

Polyurethane solid tire

9

Fork size(LxWxT)mm

920*100*35

920*100*35

10

Fork spread mm

545

655

11

Overall length(without forks) mm

1350

1450

12

Overall width mm

870

1100

13

Overall height mast closed mm

2070

2070

14

Overall height fork raised(without backrest) mm

3535

3535

15

Overhead guard height mm

1965

1965

16

Outside turning radius mm

1170

1272

17

Min. intersecting aisle mm

2700

3050

18

Max. walking speeds Km/h

7.2

7.0

19

Lifting speeds (Loaded/ Unloaded)mm/s

125/170

125/170

20

Grade abitity %

8

8

21

Total weight( with battery) Kg

1950

2170

22

Front tire

Φ305*127

Φ305*140

23

Rear tire

Φ267*127

Φ267*127

24

Wheel base(adjustable)mm

880-961

950-1031

25

Ground clearance mm

90

90

26

Service brake

hydraulic

27

Parking brake

mechanical

28

Battery V/Ah

24/360

24/480

29

Charger V/A

24/40

24/50

30

Driving motor Kw

2.8 AC

2.8 AC

31

Lifting motor Kw

3.5

3.5
