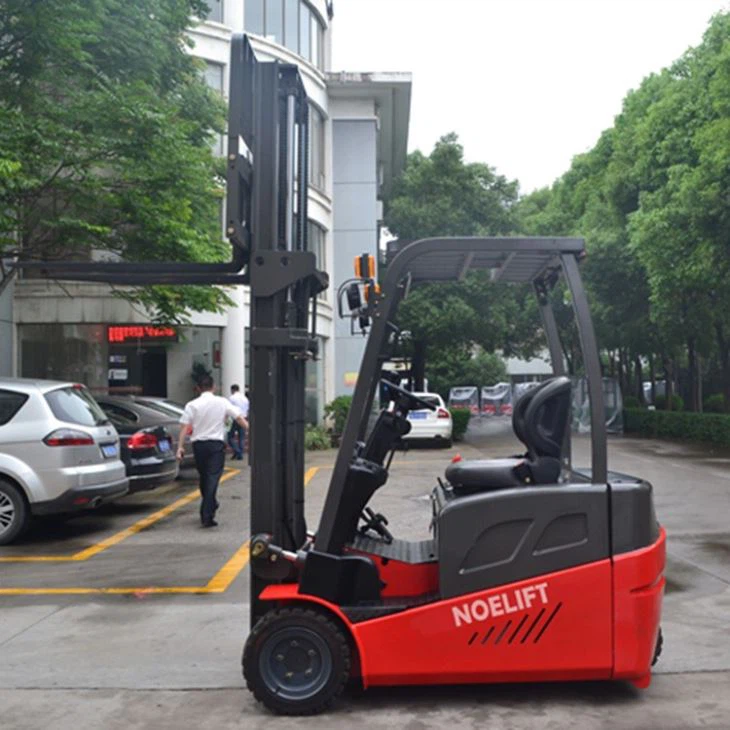

1.0 -1.5 Ton Three Wheel Electric Forklift Truck

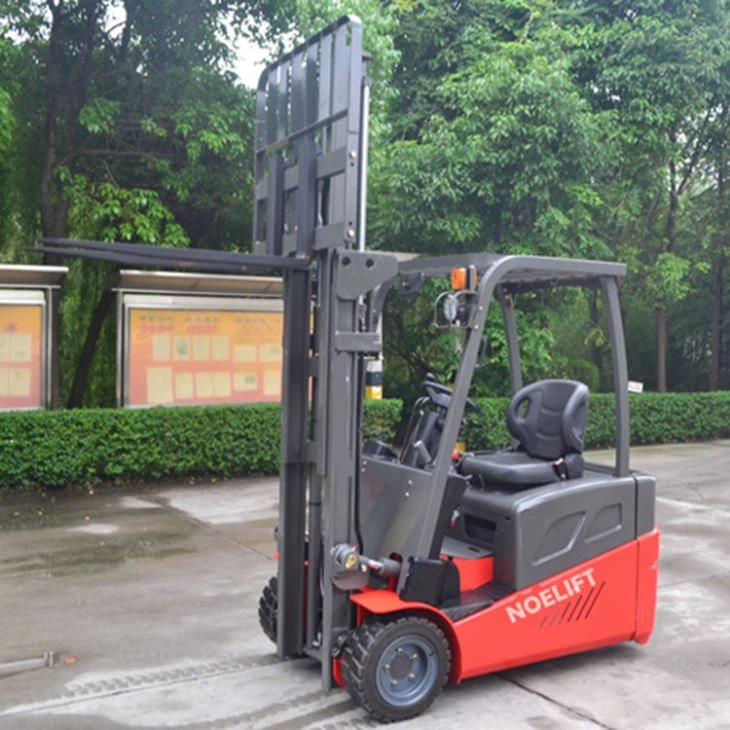

Three Wheel Electric Forklift Truck With AC Motor

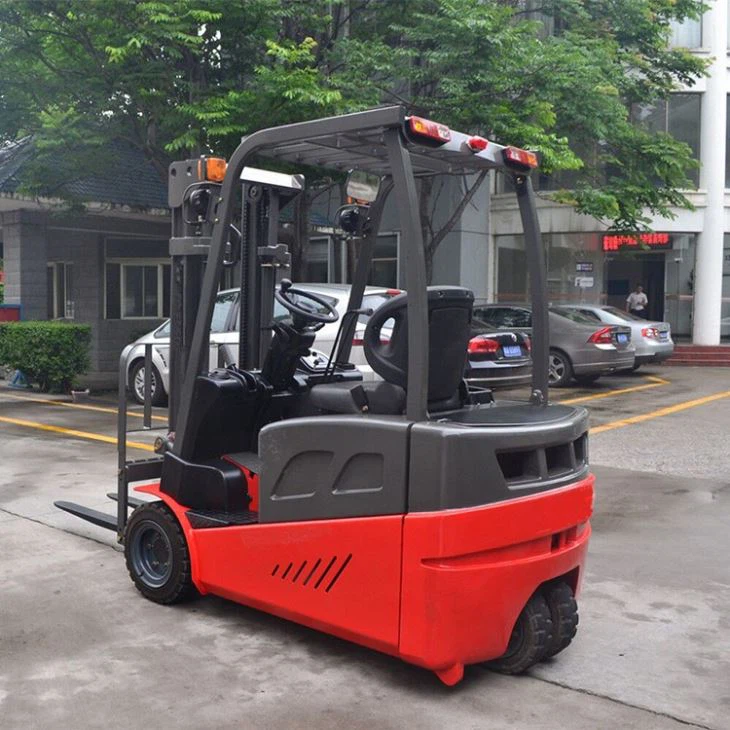

Three Wheel Electric Forklift Truck

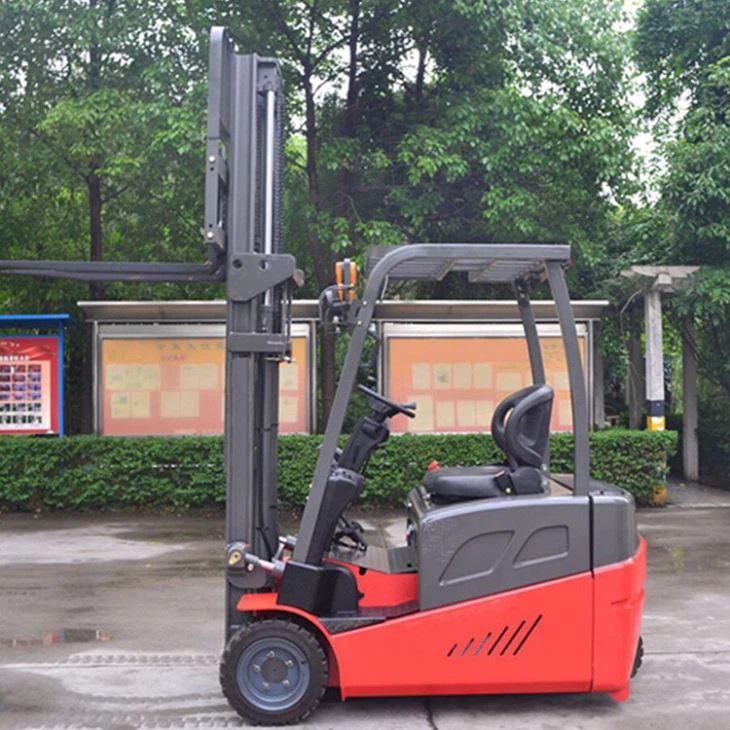

Three Wheel Electric Forklift With AC Motor

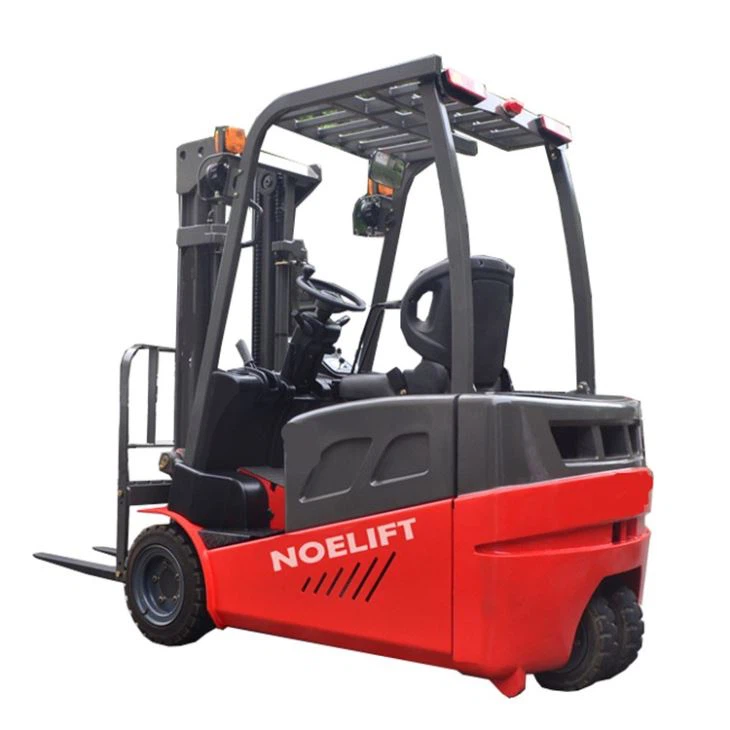

1.0 -1.5 Ton Electric Forklift Truck With AC Motor

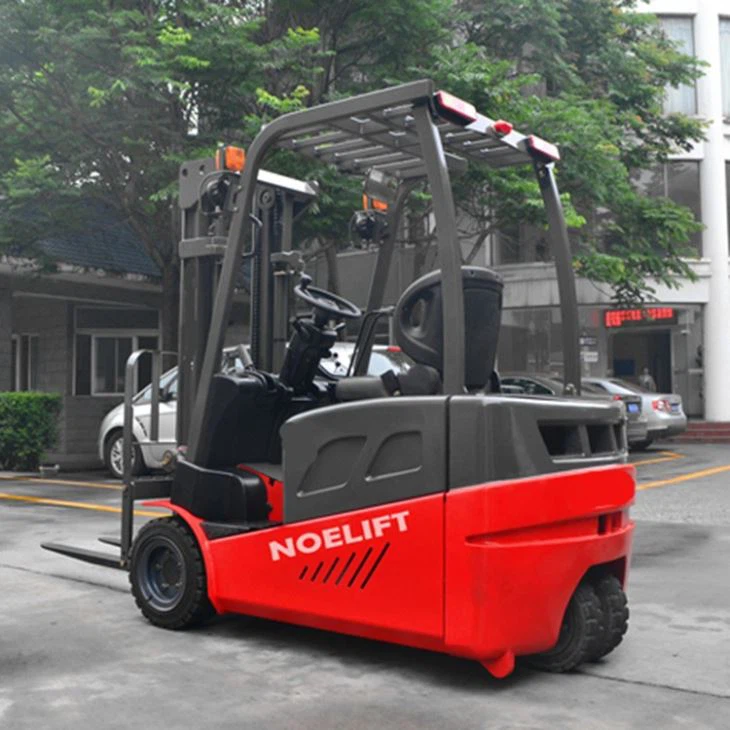

high quality Three Wheel Electric Forklift

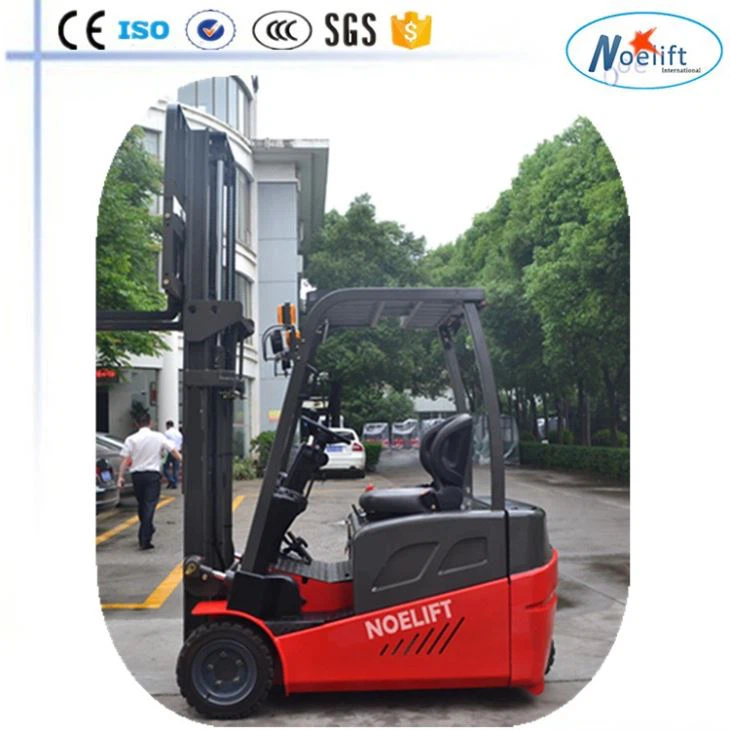

factorty Three Wheel Electric Forklift With AC Motor
three Wheel Electric Forklift Truck AC Motor
Specification Detailed Images Contact : Alex kuo|Team leader Hangzhou Noelift Equipment Co.,Ltd Tel:+86 15902116948 Email:sales05@noelift.com Wechat:+8615902116948 Skype/whatsapp：+8615902116948
Send Inquiry
Product Introduction
Super power 3 wheels electric forklift
FUll AC and maximum loading capacity is 2 tons
| 1 | Description | AC electric forklift truck (Double driving) | |
| 2 | Model | TKC1000 | TKC1500 |
| 3 | Load capacity (Kg) | 1000 | 1500 |
| 4 | Load center (mm) | 500 | 500 |
| 5 | Max. lifting height (mm) | 3000 | 3000 |
| 6 | Tilting angle (forward- backward) deg | 6/7 | 6/7 |
| 7 | Free lift (mm) | 0 | 0 |
| 8 | Wheel type | Solid | Solid |
| 9 | wheel (x=driVing wheel) | 2x/2 | 2x/2 |
| 10 | Fork size (LxWxT) (mm) | 1070x120x40 | 1070x120x40 |
| 11 | Fork spread (mm) | 920 | 920 |
| 12 | Overall length(with forks) (mm) | 3250 | 3350 |
| 13 | Overall width (mm) | 1160 | 1160 |
| 14 | Overall height mast closed (mm) | 2122 | 2122 |
| 15 | Overall height fork raised(with backrest) (mm) | 3915 | 3915 |
| 16 | Overhead guard height (mm) | 2050 | 2050 |
| 17 | Turning radius (mm) | 1790 | 1790 |
| 18 | Max. walking speeds (Km/h) | 14 | 14 |
| 19 | Grade abitity % | 15 | 15 |
| 20 | Front tire | 200/50-10 | 200/50-10 |
| 21 | Rear tire | 16x6-8 | 21x8-9 |
| 22 | Ground clearance (mm) | 95 | 95 |
| 23 | Service brake | hydraulic | hydraulic |
| 24 | Parking brake | mechanical | mechanical |
| 25 | Battery V/Ah | 48/600 | 48/600 |
| 26 | Charger V/A | 48/70 | 48/70 |
| 27 | Driving motor (Kw) | 4.5*2 | 4.5*2 |
| 28 | Lifting motor (Kw) | 8.6 | 8.6 |
| 29 | Control system | MOSFET | MOSFET |
