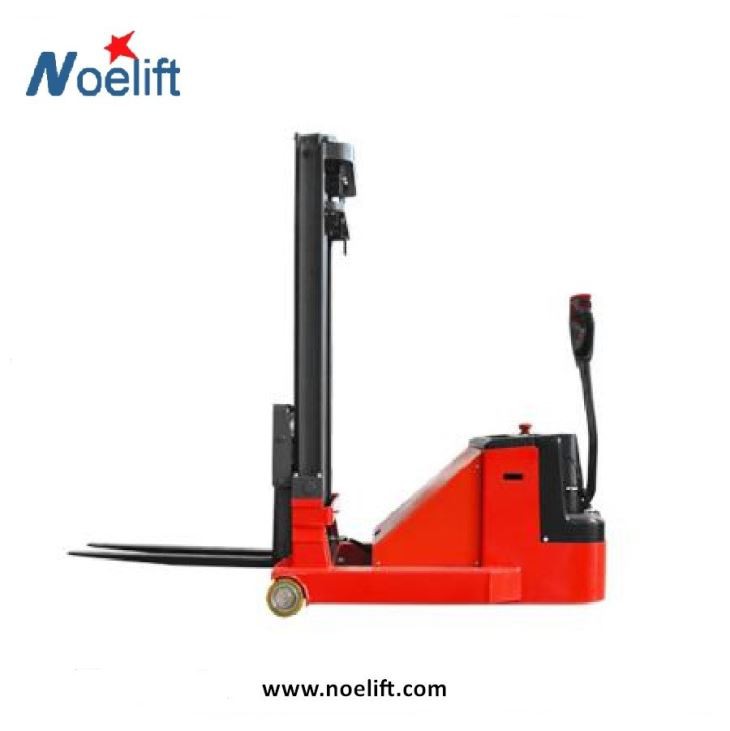

0.9T Walkie Counterbalance Stacker with Smart Charger
Main Features:
1.walkie counterbalance stacker use DC permanent magnet drive motor which provide strong power and excellent performance;
2. Maintenance-free battery and built-in charger makes it more convenient to charge;
3.Wide-view gantry design to improve work efficiency;
4. Sleeve type adjustable forged fork is easy to fold, easy to enter and exit all kinds of non-freight small elevators. It is also suitable for all kinds of pallet specifications.
Specification:
| Brand | NOELIFT | |
| Model | MBB09 | |
| Power Type | Battery | |
| Operation Type | Walkie | |
| Service weight(incl. battery) | kg | 1160 |
| Rated Capacity | Q(kg) | 900 |
| Load Center | C(mm) | 400 |
| Lifting height | h3(mm) | 2500 |
| Forks size | l/e/s(mm) | 850/80/35 |
| Front Overhang | x(mm) | 80 |
| Turning radius | Wa(mm) | 1300 |
| Max. climbing ability | %(tanθ ) | 3/5 |
| Driving speed(load/unload) | km/h | 3/3.5 |
| Lifting speed(load/unload) | mm/s | 145/215 |
| Lowering speed(load/unload) | mm/s | 105/105 |
Products Feature:
performance
● CURTIS controller makes the control performance is excellent, efficient and stable;
●It adopts a permanent magnet travel motor with excellent performance and low heat generation.
Comfort
●Compact design provides small size, space-saving, and smooth passage in a small passage;
● It is simple and beautiful with an integrated joystick. All operation functions can be easily done with one hand.
