Electric pallet stacker lift 3m with 2000kg from China

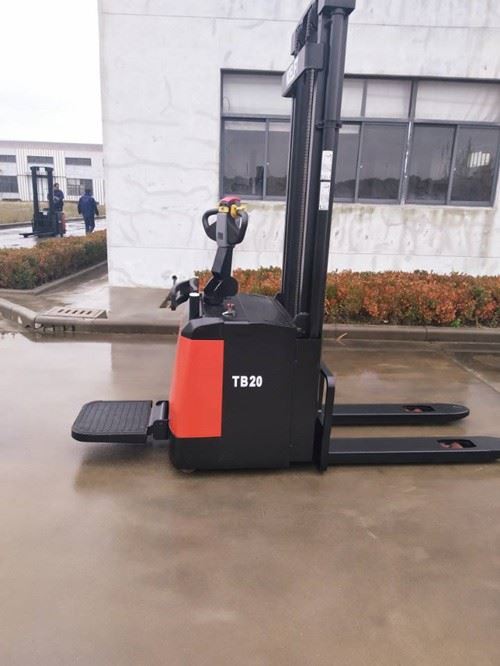

Electric pallet stacker ----- TB2030
PLATFORM PALLET STACKING FORKLIFTTRUCK
PRODUCT ADVANTAGE
1.Station-driven steering makes the control more convenient and flexible.
2.The latest CURTIS AC control system is accurate, stable and eficient.
3.Station driving pedal adopts shock absorption design, which greatly improves station riding comfort and reduces long driving fatigue.
4.The integrated control handle is simple and beautiful, and all operation functions can be easily completed by one hand.
5.The frame is a high strength steel frame structure with 5 fulcrums and low center of gravity. It has a large redundant bearing capacity.Long service life;
6.he whole system adopts imported waterproof connectors, all wires and cables have reliable protection, greatly improving the electrical system.Relabilt;
Specifications
| Manufacturer | NOELIFT | |
| Model | TB2030 | |
| Power type | Battery | |
| Driving style | Stand on | |
| Rated load | Q(kg) | 2000 |
| Load center | C(mm) | 600 |
| Bridge load at full load, drive side/load-bearing side | kg | 1149/1966 |
| Bridge load at unload, drive side/load-bearing side | kg | 807/308 |
| wheel type | PU | |
| Mast closed height | h1(mm) | 2025 |
| Lift height | h3(mm) | 3000 |
| Mast extended height with load-backrest | h4(mm) | 3506 |
| Drive motor power (S2-60min) | kw | 1.5 |
| Lift motor power, (S3-15%) | kw | 2 |
| Battery, voltage/rated capacity | V/Ah | 24/210* |
| Battery weight | kg | 200 |
| Battery replacement method | Side pull | |
| Mast series | Single cylinder duplex mast |
pictures and details
certifications
