Heavy Forklift

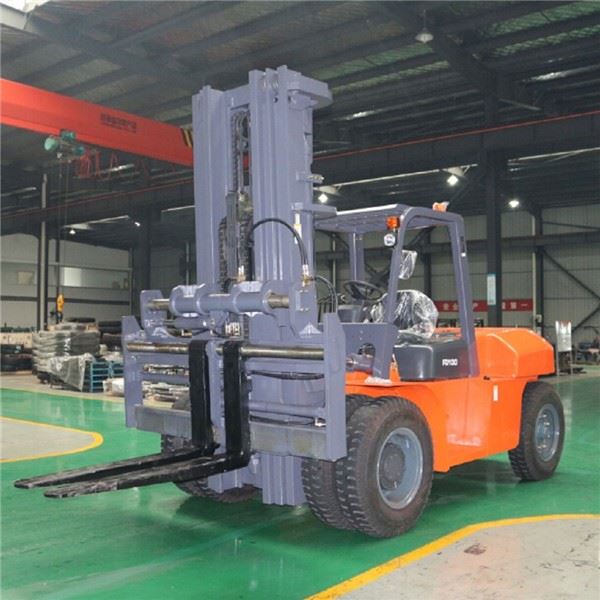

Heavy china Forklift

Heavy Forklift

Forklift with different various attachments Advantages New condition diesel forklift truck with ISUZU engine or China top engine. Lifting height is optional from 3000-6000mm. Various attachments is optional. With advantages as following, 1,Integration electric elements 2,Buffer device for...

Send Inquiry

Product Introduction

Product Description

Construction lift trucks 10ton diesel engine forklift, heavy duty forklift, forklift truck

10Ton diesel forklift, heavy duty forklift is a perfect forklift for outdoor and indoor applications such as trucking, warehouse, shipping, distribution, lumber yards, machinery movers, brickyards, manufacturing,construction plant and more. It adopts advanced ergonomic technology optimizes the design of control system, improves the comfortable and safe of operation.

Product Picture

heavy-duty-forklift

Specifications of 8-12 tons forklift
Manufacture
Model		Unit	FD80	FD100	FD120
Power type			DIESEL	DIESEL	DIESEL
Rated capacity		kg	8000	10000	12000
Max lift height		mm	3000	3000	3000
Load centre		mm

Mast extend height		mm	4380	4320	4350
Max lift height of fork		mm	3000	3000	3000
Mast closed height		mm	2500	2840	2870
Free lift height		mm	205	100	180
Distance from seat to overhead guard		mm		1080	1020
Overall length (Without fork)		mm	3600	4270	2430
Overall Width		mm	1995	2165	4820
Front overhang		mm	590	720	720
Rear overhang		mm	760	742	900
Wheel base		mm	2250	2800	3200
The height of traction pin		mm	395	520	520
Min. ground clearance		mm	200	225	240
Fork Size		mm	1220X150X75	1220X175X80	1220X175X80
The distance between forks		mm	1840/300	2460/450	2460/450
Tread(front/rear)		mm	1470/1700	1600/1800	1600/1700
Min. Turning Radius(outside)		mm	3370	4080	4720
Mast tilt angle		deg

Total weight		kg	9850	12860	13520

Tire	Quantity
Tire	Type
Transmission Type		Automatic
