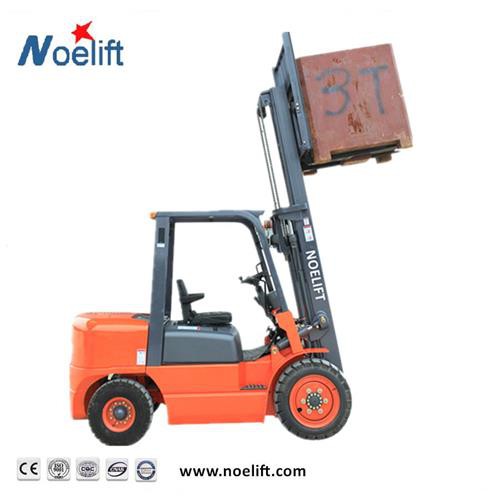

Diesel Forklift Engine Optional
capacity: 1500kg 1800kg 2000kg 2500kg 3000kg 3500kg 4000kg 5000kg 6000kg 7000kg 8000kg 10000kg
lift: 3000mm-6000mm
mast: 2 stages 3 maters
main configuration: xin chai engine，Electronic hydraulic shift, electronic flameout, warning light, armrest seat
Send Inquiry
Product Introduction
| Model | unit | FD15 | FD18 | FD20 | FD25 | FD30 | FD35 | FD40 | FD45 | FD50 | FD60 | FD70 | FD80 | FD100 |
| Power type | DIESEL | |||||||||||||
| Rated capacity | kg | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 5000 | 6000 | 7000 | 8000 | 10000 |
| Load center | mm | 500 | 600 | |||||||||||
| Operator type | Drive in seat | |||||||||||||
| Height of mast | mm | 1985 | 1985 | 2000 | 2000 | 2065 | 2180 | 2150 | 2330 | 2500 | 2500 | 2500 | 2500 | 2840 |
| Free lift height | mm | 125 | 125 | 170 | 170 | 160 | 170 | 150 | 140 | 205 | 205 | 205 | 205 | 100 |
| Overhead guard height | mm | 2070 | 2070 | 2070 | 2070 | 2090 | 2090 | 2105 | 2245 | 2450 | 2450 | 2450 | 2450 | 2560 |
| Wheelbase | mm | 1400 | 1400 | 1600 | 1600 | 1700 | 1700 | 1900 | 2100 | 2250 | 2250 | 2250 | 2250 | 2800 |
Min. turning radius (outside) | mm | 2060 | 2060 | 2170 | 2240 | 2400 | 2420 | 2700 | 2740 | 3250 | 3370 | 3370 | 3370 | 4080 |
| Fork size | mm | 920*100*35 | 920*100*40 | 1070*100*40 | 1070*125*45 | 1070*125*50 | 1070*130*50 | 1220*150*55 | 1220*150*55 | 1220*150*60 | 1220*150*70 | 1220*150*75 | 1220*175*80 | |
| Quantity of wheels | 2X/2 | 4X/2 | ||||||||||||
| Type of tyres | Penumatic | |||||||||||||
| Battery | v/ah | 12/80 | 24/2*80 | |||||||||||
Optional Equipments
1.Janpan engine ISUZU or Mitsubishi,EPA koller engine ,Euro III engine are optional.
2.Lifting Height 3m-6m.
3.Full-free Duplex or Triplex Mast.
4.Side Shift, Solid Tires, Suspension Seat, fork positiner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp ect.
Details Images
Certifications
diesel forklift from 1.5ton to 10ton
