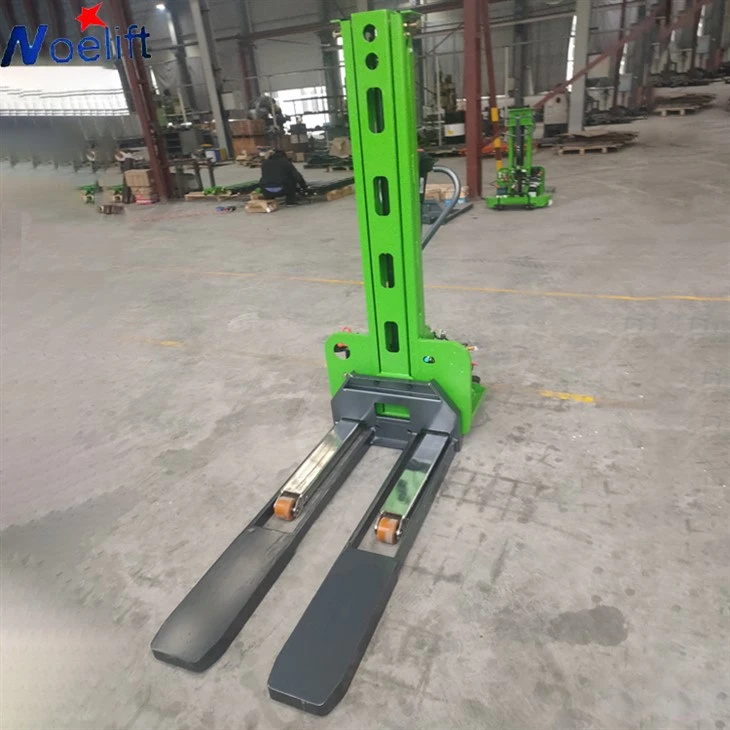

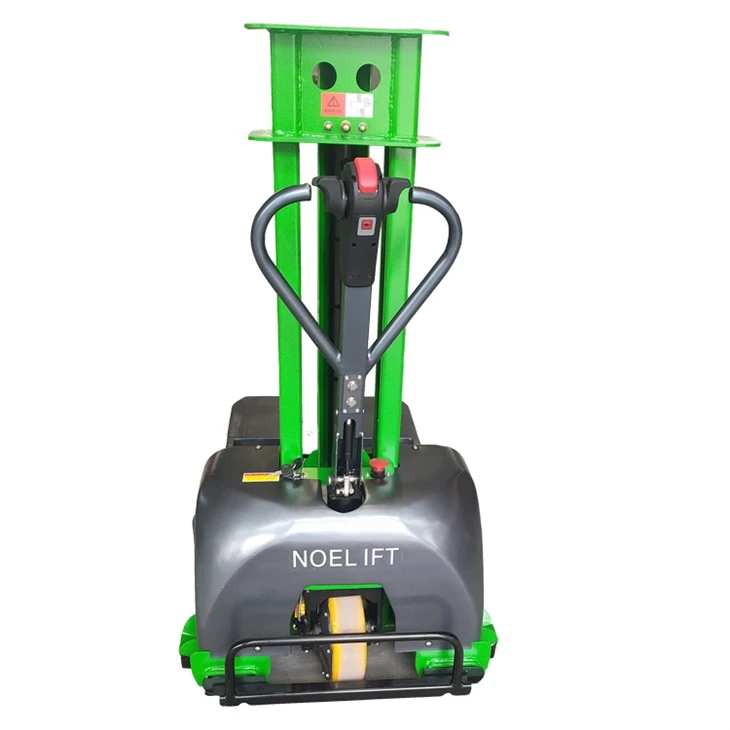

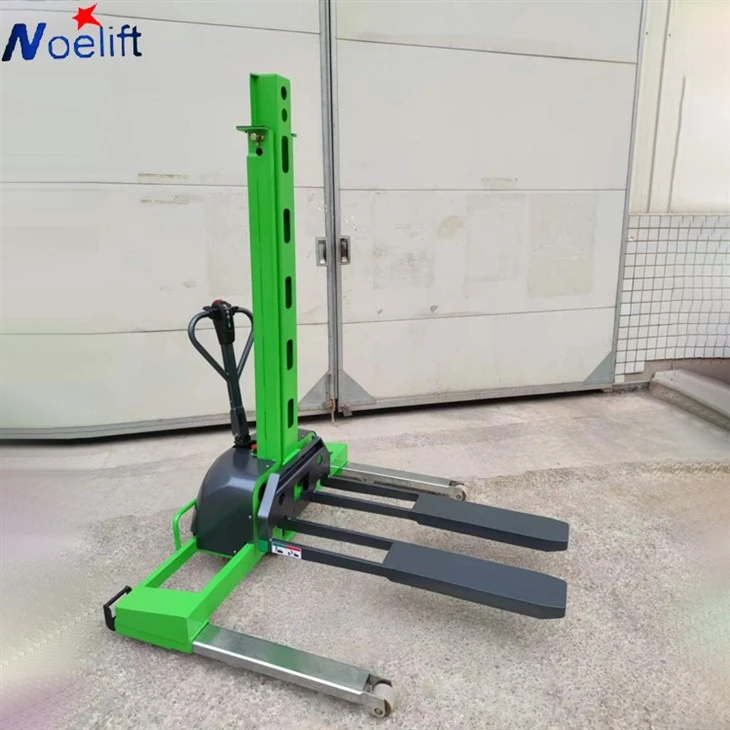

Semi Electric Jack Up Forklift



Semi electric self load stacker is a very practical material handling equipment that combines the advantages of human power and electric power to transport heavy objects easily and efficiently. It is widely used in industrial production, logistics and warehousing and other fields, and is an important part of modern logistics equipment.

First of all, the semi electric self load stacker has flexible and convenient operation performance. It uses a combination of manual propulsion and electric lifting, which is simple and convenient to operate. Users can easily push the goods to the target position through human power, and then adjust the height through electric lifting. This can not only greatly improve work efficiency, but also avoid excessive fatigue of workers, making it safe and reliable.

Secondly, semi electric self load stacker has a wide range of applications. It can be used to carry heavy goods, such as heavy machinery, equipment, computer main cabinets, etc. Also, its smaller size makes it easy to maneuver through tight passages and spaces. In addition, this equipment is also very important in the field of logistics and warehousing. It can quickly load and unload goods into the warehouse through trucks and other transportation vehicles, and quickly move them to the required shelves to achieve efficient warehousing management.

The semi electric self load stacker is an efficient, practical and safe logistics handling equipment. In the field of modern manufacturing and logistics warehousing, it has become one of the indispensable equipment.



Semi electric jack up forklift  CDD



Standard
1.1	Manufacturer		NOELIFT	NOELIFT	NOELIFT	NOELIFT	NOELIFT	NOELIFT
1.2	Model		CDD0508	CDD0509	CDD0510	CDD0511	CDD0512	CDD0513
1.3	Power type		Battery	Battery	Battery	Battery	Battery	Battery
1.4	Driving style		Walkie	Walkie	Walkie	Walkie	Walkie	Walkie
1.5	Rated load	kg	500	500	500	500	500	500
1.6	Load center	mm	400	400	400	400	400	400
1.7	Wheelbase	mm	758	758	758	758	758	758
Weights
2.1	Total Weight(Include Battery)	KG	230	235	240	245	250	255
2.2	Battery weight	KG	13.5	13.5	13.5	13.5	13.5	13.5
Wheel
3.1	wheel type		Nylon	Nylon	Nylon	Nylon	Nylon	Nylon
3.2	Bearing wheel size	mm	φ70*60	φ70*60	φ70*60	φ70*60	φ70*60	φ70*60
3.3	Balanced wheel size	mm	φ100*45	φ100*45	φ100*45	φ100*45	φ100*45	φ100*45
3.4	Number of wheels(universal/bearing)		2/2	2/2	2/2	2/2	2/2	2/2
Size
4.1	Min.Fork Height	mm	85	85	85	85	85	85
4.2	Max. Fork Height	mm	800	900	1000	1100	1200	1300
4.3	External Distance Between Forks	mm	535	535	535	535	535	535
4.4	Length of Fork	mm	1150	1150	1150	1150	1150	1150
4.5	Width of Fork	mm	155	155	155	155	155	155
4.6	Overall Length	mm	1570	1570	1570	1570	1570	1570
4.7	Width	mm	786	786	786	786	786	786
4.8	Overall Height(Mast Closed)	mm	1097	1197	1297	1397	1497	1597
4.9	Overall Height(Min. Fork Height)	mm	1118	1218	1318	1418	1518	1618
4.10	Min.Turning Radius	mm	1100	1100	1100	1100	1100	1100
Function
4.1	Lift Speed	mm/s	55	55	55	55	55	55
4.2	Descent Speed	mm/s	70	70	70	70	70	70
4.3	Lift Motor	KW	DC0.8	DC0.8	DC0.8	DC0.8	DC0.8	DC0.8
4.4	Battery Voltage/Capacity	V/AH	12V/45AH	12V/45AH	12V/45AH	12V/45AH	12V/45AH	12V/45AH





1. One-stop solutions offer



2. OEM services offer



3. 24 hours non stop service offer



4. Track the products for you once every two days, until you get the products.



5. During warranty, spare parts delivery within one week for free.

NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
