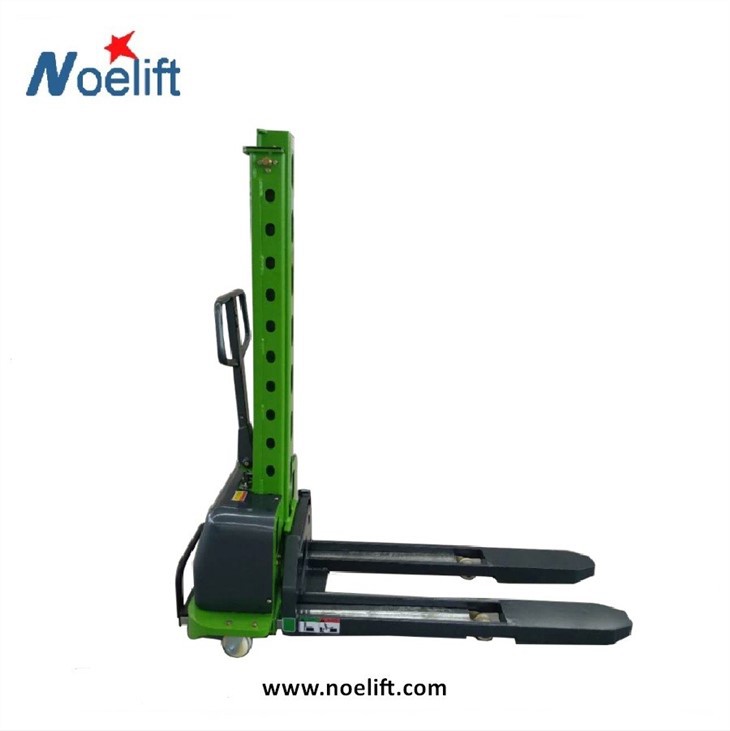

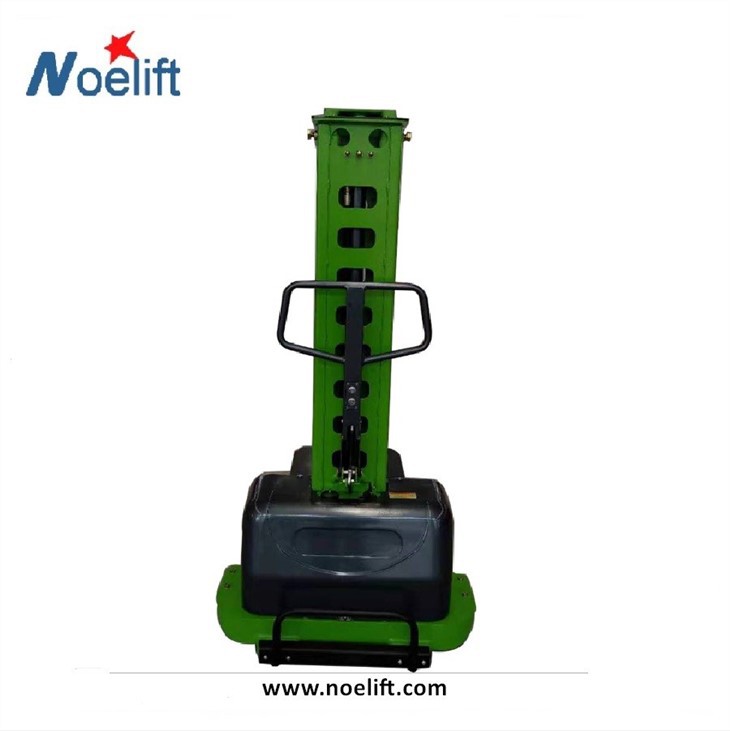

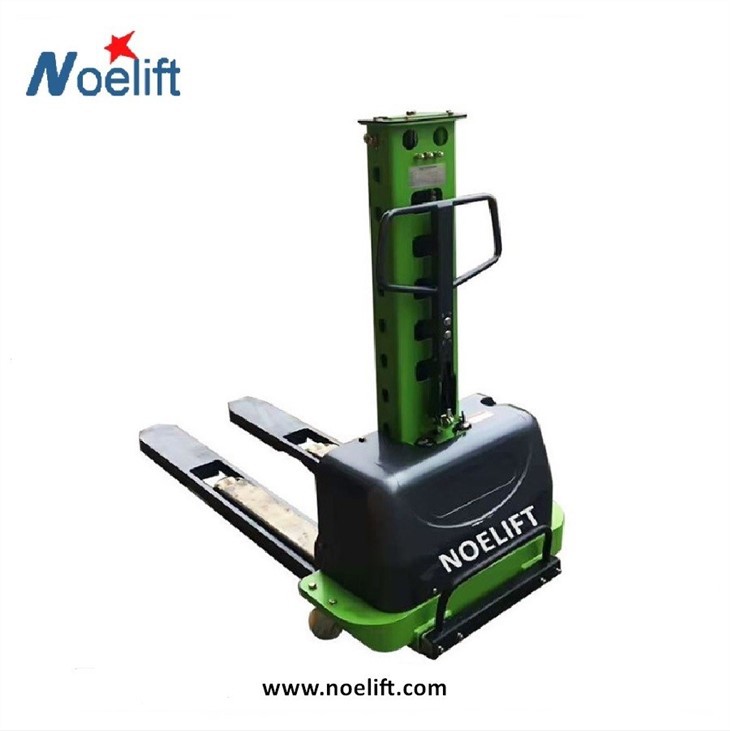

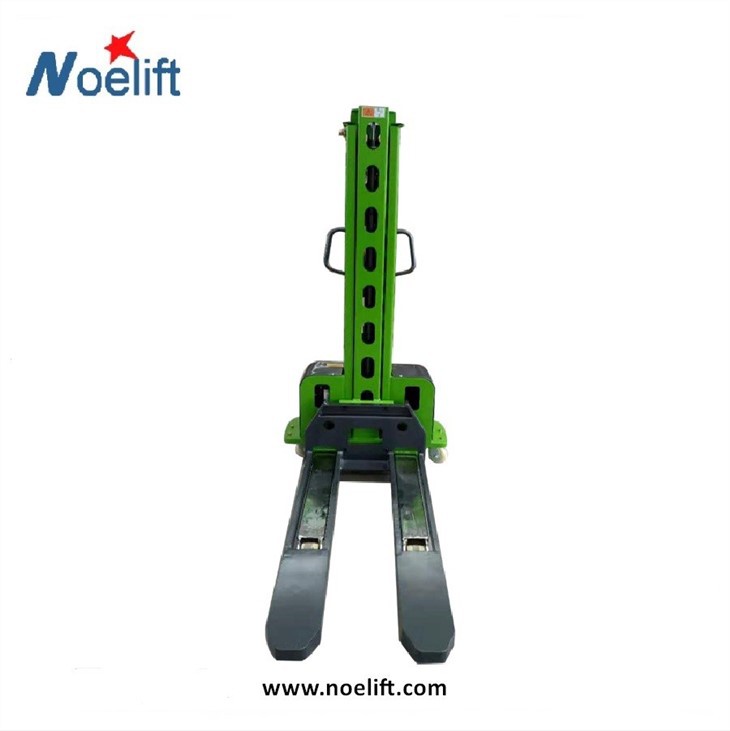

Portable Self-loading Stacker

Special design for small environment operation.

More stable breaker.

Steering chain auxiliary device.

DC lifting motor, manual driving.

Over discharge function.

800mm/1000mm/1200mm/1300mm customized mast

Model		Unit	CDD05Z
Basic Parameter
Type of Power			Battery
Max. Load		kg	500
Load Center		mm	400
Wheelbase		mm	758
Wheel distance FR		mm	380
Wheel distance RR		mm	665
Type of Operation			Walk
Wheel
Material of Wheel			Nylon
No. of wheel			2/2
Bearing wheel size		mm	Φ70*60
Balanced wheel size		mm	Φ100*45
SIZE
Min. fork height		mm	85
Max. fork height		mm	800/900/1000/1100/1200/1300
External distance betw-een forks		mm	535
Length of fork		mm	1150
Width of fork		mm	155
overall length		mm	1570
width		mm	786
overall height(mast clo-sed		mm	1097/1197/1297/1397/1497/1597
overall heught(Min. for-k height		mm	1118/1218/1318/1418/1518/1618
Min. turning radius		mm	1100
PERFORMANCE
Lift speed		mm/s	55
Descent speed		mm/s	70
Lift motor		kw	DC0.8
battery voltage		V	12
Battery capacity		Ah	45
WEIGHT
Battery		kg	13.5
Total weight(include battery)		kg	230/235/240/245/250/255
