ELECTRIC PICKER ORDER
Heavy Load Capacity: 1,200 kg to 1,300 kg
High Picking Elevation: Platform lift heights from 3.0 m up to 9.5 m (Working height up to 11.26 m)
Chassis Advantage: Counterbalanced design for versatile pallet access without front straddle legs
Drive & Voltage: 48V High-Performance Full AC System with Regenerative Braking
Steering & Control: Electric Power Steering (EPS) with proportional hydraulic speed regulation

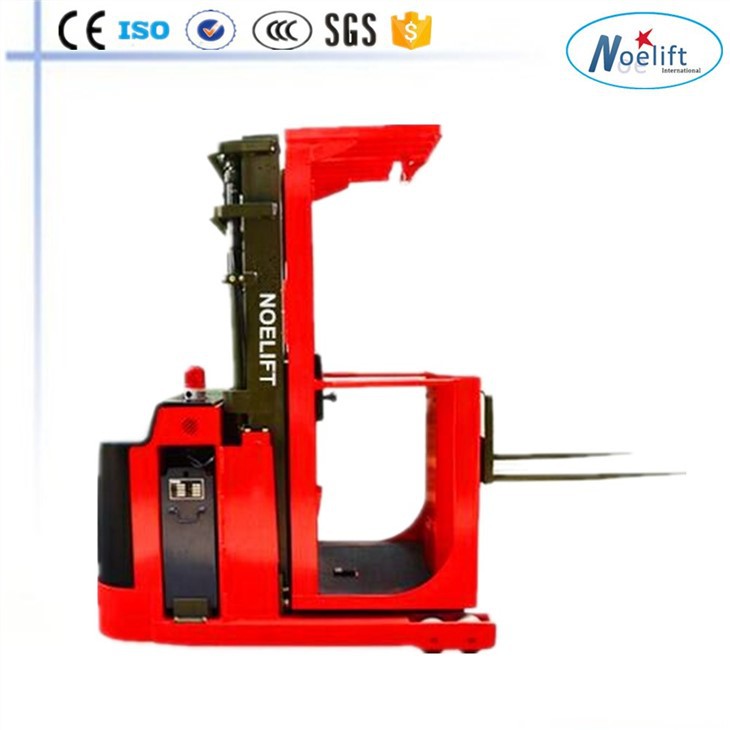

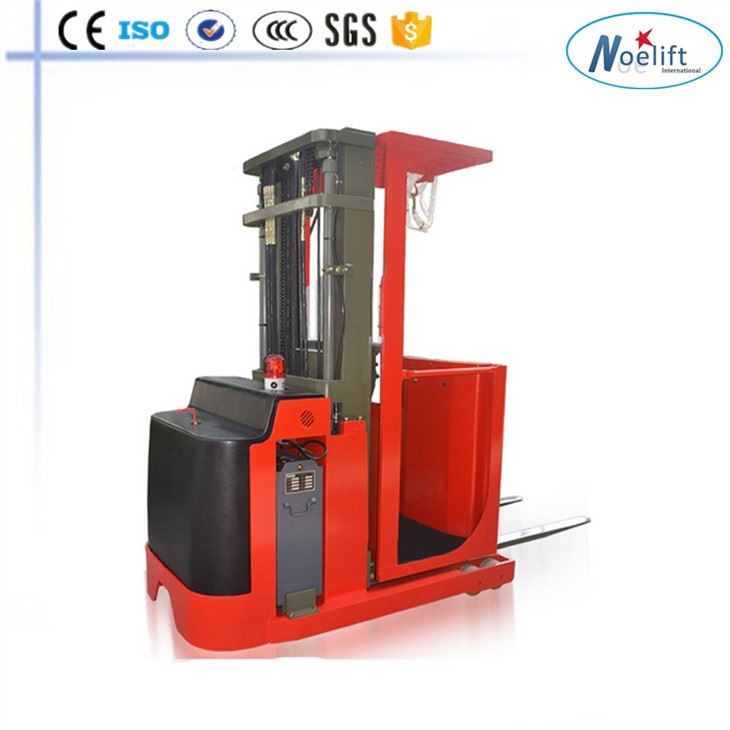

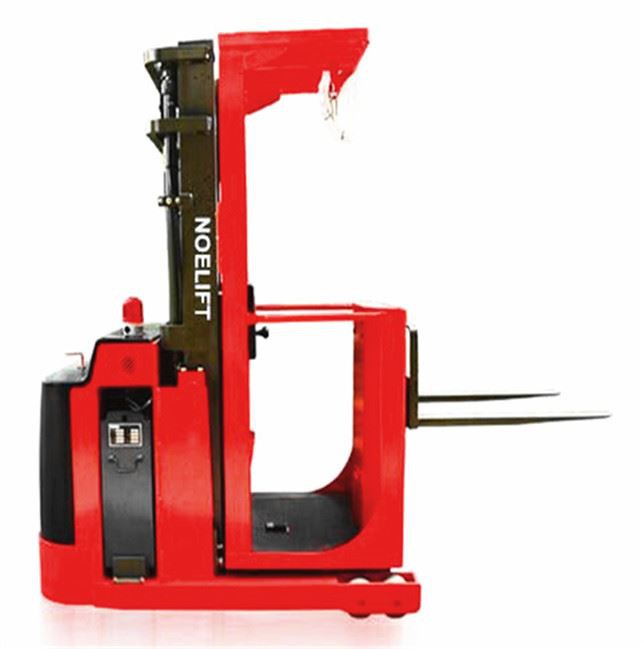

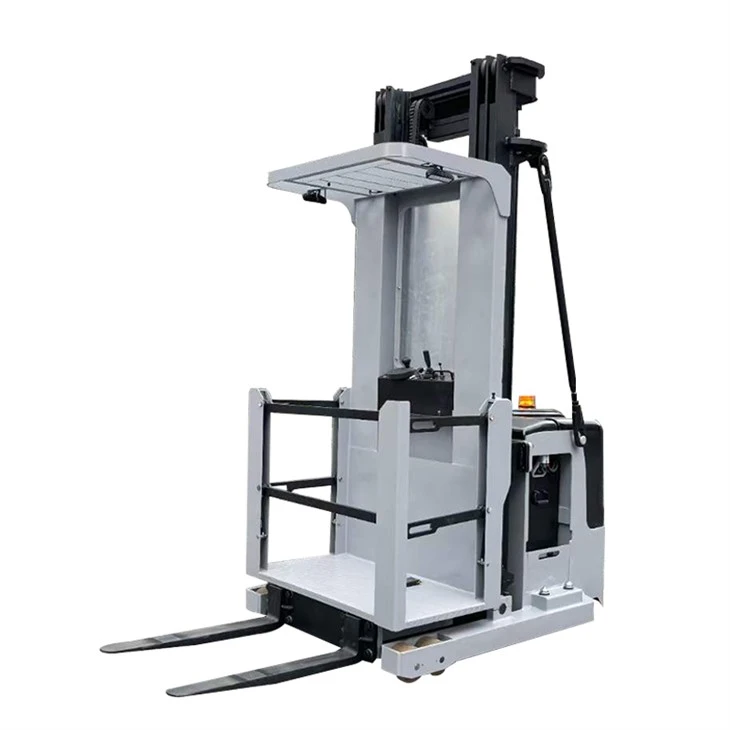

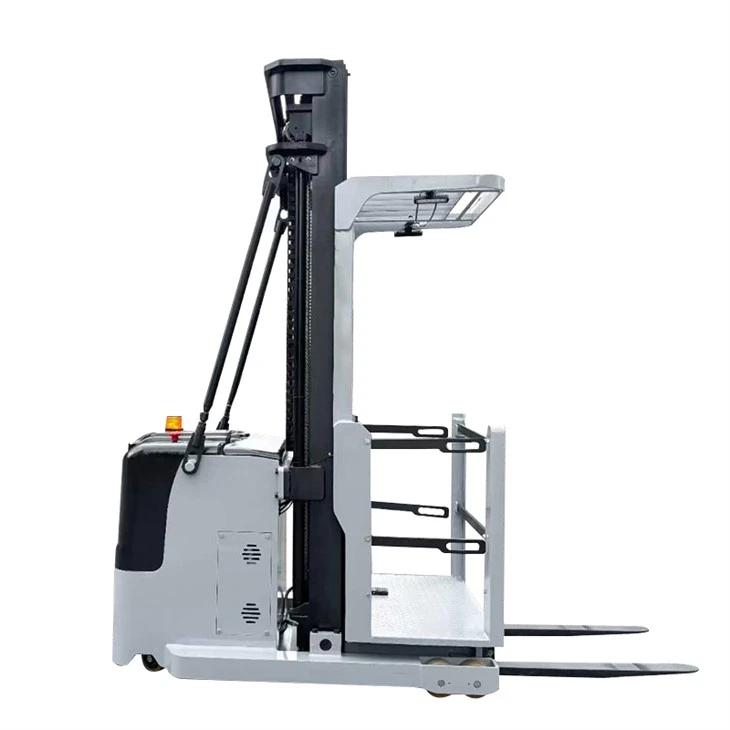

Noelift Heavy-Duty Counterbalanced Electric Order Picker (High-Bay Picking Truck)
The Noelift Heavy-Duty Counterbalanced Electric Order Picker is specialized for full-palette and high-level split-case order fulfillment in demanding high-bay warehouses. Designed with a heavy-duty counterbalanced chassis, it provides superior stability at lift heights from 3.0 to 9.5 meters without requiring outrigger legs. Powered by a high-torque 48V AC system and imported CURTIS controller, this order picker allows operators to seamlessly combine high-reach pallet handling with fast manual piece selection in narrow VNA aisles.
Key Features & Advantages
High-Altitude Safety Protection
A safety guard arm equipped with a switch ensures that the forklift can only operate when fully engaged

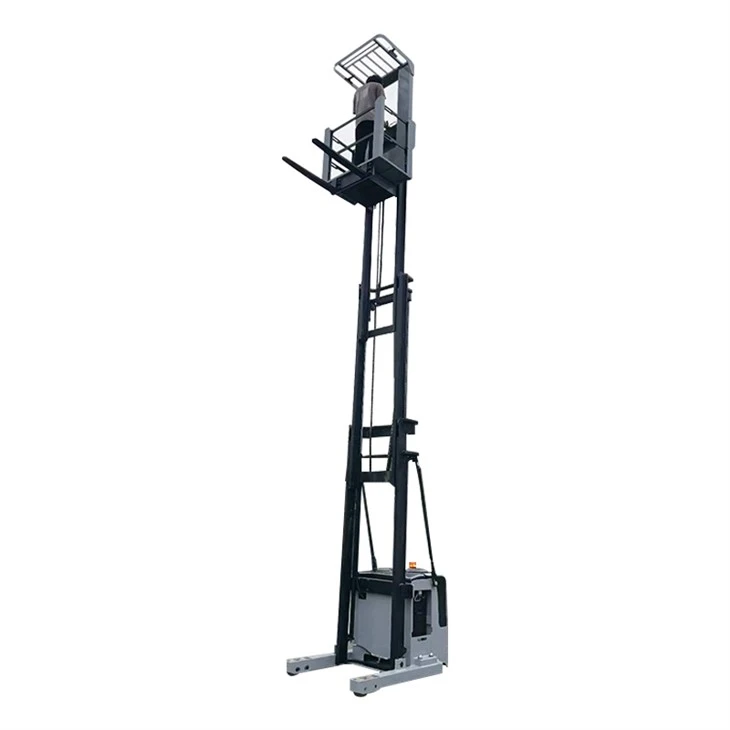

High-Bay Person-Up Platform & Mast Stability
Engineered with heavy-duty German mast channels and dual lifting cylinders. Minimizes platform sway at high elevations (up to 9.5m), providing maximum confidence and safety for high-bay inventory selecting
Advanced 48V AC System with Intelligent Speed Control
Equipped with a powerful 48V AC drive motor and CURTIS controller. Features automatic speed reduction proportional to lift height and steering angle, guaranteeing safe travel while elevated
Comfort & Convenience
Convenient battery top cover and side panels for effortless maintenance.
Semi-enclosed cab and auxiliary lift function for safer picking and enhanced comfort
Diverse configuration options
Modular Design
Adaptable to various pallet sizes and aisle widths
Navigation Options
Mechanical rail guidance, aisle mode function, electromagnetic navigation, and permanent magnet navigation available
Control Configurations
Standard front-mounted control panel (mast side), optional rear-mounted (fork side) or dual control panels
Aisle Safety Features
Optional end-aisle deceleration and stop function prevents high-speed collisions with pedestrians, walls, or vehicles
Zone Controls
Optional zone-specific height/speed limiting
AI Safety Systems
Optional AI collision avoidance and laser obstacle detection safety features
Specifiction parameters
| Model | THA | THA | |
| Vehicle Model Code | THA12 | THA13 | |
| Power type | Battery | Battery | |
| Operation | Picking | Picking | |
| Load capacity | Q(kg) | 1200 | 1300 |
| Load center distance | C(mm) | 600 | 600 |
| Front overhang | x(mm) | 322 | 277 |
| Wheelbase | y(mm) | 1670 | 1555 |
| Service Weight(incl. battery) | kg | / | / |
| Axle loading, laden, front/rear | kg | / | / |
| Axle loading, unladen, front/rear | kg | / | / |
| Tyre type, front/rear | Polyurethane Tyre | Polyurethane Tyre | |
| Tyre size, front | mm | φ343×120 | φ343×120 |
| Tyre size, rear | mm | φ152×105 | φ152×105 |
| Wheels number, front/rear (X=driven) | 4 / 1X | 4 / 1X | |
| Track width, front | b10(mm) | 1368 | 1368 |
| Mast retracted height | h1(mm) | 4084 | 4084 |
| Free Lift height (standard) | h2(mm) | 1764 | 1764 |
| Lift height | h3(mm) | 9500 | 9500 |
| Mast extended height | h4(mm) | 11750 | 11750 |
| Max. picking height | h12+1600(mm) | 11260 | 11260 |
| Overhead guard height | h6(mm) | 2310 | 2320 |
| Platform height | h7(mm) | 225 | 230 |
| Platform height, raised | h12(mm) | 9660 | 9660 |
| Ground clearance, min fork surface | h13(mm) | 65 | 70 |
| Overall length | l1(mm) | 3438 | 3298 |
| Overall width | b1/ b2(mm) | 1070/1520 | 1070/1520 |
| Fork dimensions | l/e/s(mm) | 1200/100/40 | 1220/100/50 |
| Fork outside spread | b5(mm) | 340-700 | 635 |
| Width over guide rollers | b6(mm) | 1625 | 1625 |
| Ground clearance below mast, laden | m1(mm) | 98 | 98 |
| Ground clearance, center of wheelbase, laden | m2(mm) | 50 | 50 |
| Right angle stacking aisle width (1200×1000) | Ast(mm) | 1770 | 1770[2] |
| Turning radius | Wa(mm) | 1940 | 1826 |
| Main aisle width | (mm) | ≥(3540+200)[3] | ≥(3400+400)[3] |
| Travel Speed, laden/unladen | km/h | 10月10日 | 10月10日 |
| Lifting Speed, laden/unladen | mm/s | 380/450 | 380/400 |
| Lowering Speed, laden/unladen | mm/s | 380/380 | 400/400 |
| Max straight gradeability, laden/unladen | %(tanθ ) | 5/8[4] | 5月8日 |
| Service brake | Electromagnetic brake/Regenerative brake | Electromagnetic brake/Regenerative brake | |
| Parking brake | Electromagnetic brake | Electromagnetic brake | |
| Drive motor, rating S2=60 | kw | 5.8 AC | 5.8 AC |
| Lift motor, rating S3=15% | kw | 14 AC | 14 AC |
| Battery voltage/nominal capacity K5 | (V)/(Ah) | 48/400[6] | 48/600[5] |
| Battery replacement method | Side pull | Side pull | |
| Steering system | Electrical steering | Electrical steering |
Target Applications & Industries
High-Bay Distribution Logistics
Managing multi-level rack picking in high-cube fulfillment warehouses
Heavy Components & Machinery Fulfillment
Picking larger industrial parts, heavy hardware, and boxed equipment
3PL Logistics Warehouses
Handling diverse mixed-pallet picking and case selection for third-party logistics
Narrow Aisle High-Density Storage
Navigating VNA layouts with maximum vertical space utilization
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Our services
1.Warranty: 12 months or 2,000 operating hours.
2.Spare Parts Support: Worldwide shipping available.
3.OEM/ODM: Customization available for color, mast height, and battery type.
