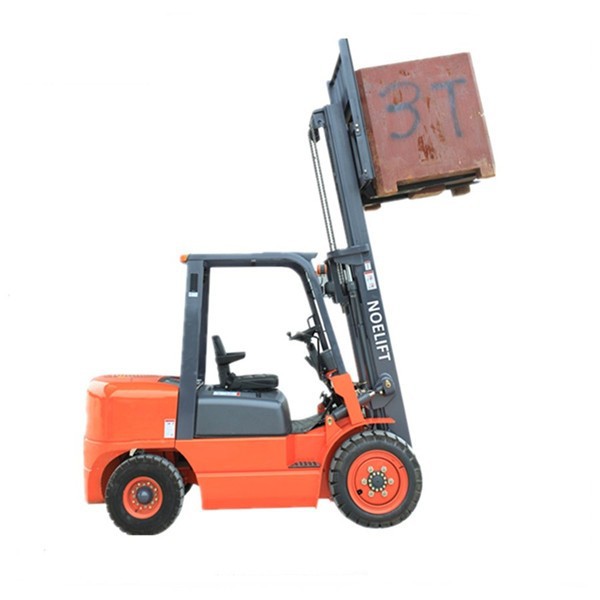

6600lbs CE Sit Down Forklift With Diesel Engine
FORKLIFT TRUCK, FORKLIFT, FORKLIFTS, FORKLIFT TRUCKS LOAD CAPACITY 1-12TONS OPTIONS
1. Advanced Hydraulic Automatic Transmission.
2. Shimadzu's Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
3. Electric-hydraulic Directional Control Valve.
4. The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
5. The Maintenance Free Radiators adopt Germany Technology.
6. Adopt Priority Steering System, which improve the work efficiency.
7. Original Toyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
8. Thicker reinforcing overhead guard protective device, ensure the safety.
9. Middle muffler, more environmental.
PARAMETER
General | 1 | Model | FD30 | |||
4 | Power type | Diesel | ||||
2 | Rated capacity | kg | 3000 | |||
3 | Load center | mm | 500 | |||
5 | Operator type | SIT DOWN | ||||
6 | Tyre type | Front/Rear | 28x9-12-12PR/6.50-10-10PR | |||
7 | Number of wheels(X=driven)) | Front/Rear | 2X2 | |||
Dimensions | 8 | Lifting height | mm | 3000 | ||
9 | Free lift height | mm | 145 | |||
10 | Fork size | LxWxT | mm | 1070×125×45 | ||
11 | Mast tilt range | F/R | 6/12 | |||
12 | Overall Length(Without fork) | mm | 2698 | |||
13 | Overall width | mm | 1225 | |||
14 | Mast lowered height | mm | 2070 | |||
15 | Mast extended height | mm | 4250 | |||
16 | Overhead guard height | mm | 2090 | |||
17 | Turning radius(Outside) | mm | 2400 | |||
18 | Fork overhang(Wheel center to fork face) | mm | 498 | |||
19 | Min.right angle stacking aisle width (Add load length and clearance) | mm | 2885 | |||
36 | Wheelbase | mm | 1700 | |||
37 | Tread | Front | mm | 1000 | ||
38 | Rear | mm | 970 | |||
39 | Ground clearance | Lowest | mm | 135 | ||
40 | Wheel base center | mm | 140 | |||
DETAILS
With wide view operation space
With clear display
with back alarm
with Japan imported ISUZU engine or China top XINCHAI C490
with hard-wearable solid tire or pneumatic tire
FORKLIFTS DELIVERY PICTURES
OUR SERVICES
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warrarnty, spare parts delivery within one week for free.
