Automatic 3t Hydraulic Diesel Forklift
Engine Brand: ISUZU, MITSUBISHI, KOBOTA, VM, YANMAR
diesel forklift Description

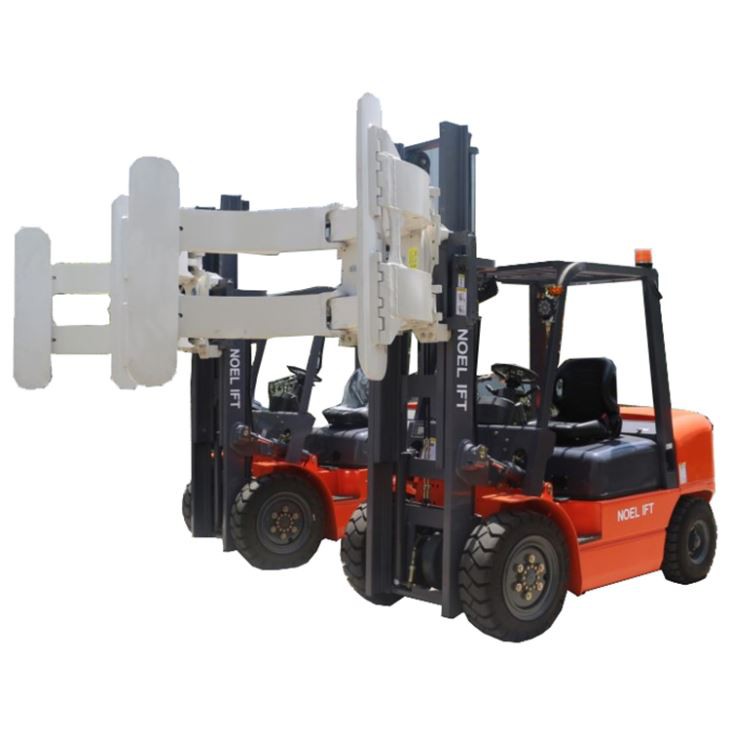

FORKLIFT WITH VARIOUS ATTACHMENTS OPTIONAL
such as paper roll clamp, bale clamp, pull/push clamp, tire clamp so on.
Noelift forklifts under ISO9001:2008 and CE norms.
One of the most durable workhorses in the material handling industry, diesel forklifts can handle a wide range of unit loads and are built to resist the demands of outdoor operations. Fuel for engines is readily available and simple to use, allowing engine forklifts to operate exceptionally well in challenging conditions, such as damp or unclean ones.
Important parameters
| manufacture | Noelift | ||||
| model | FD20 | FD25 | FD30 | FD35 | |
| power type | Diesel/Gasoline/LPG | ||||
| capacity | kg | 2000 | 2500 | 3000 | 3500 |
| load center | mm | 500 | |||
| lift height | mm | 3000-6000 | |||
| free lift height | mm | 140 | 145 | ||
| fork size | mm | 1070*120*40 | 1070*120*45 | 1070*125*45 | 1070*130*45 |
| mast tilet angle | deg | 6/12 | |||
| front overhang | mm | 484 | 489 | 494 | 500 |
| overall length | mm | 2510 | 2580 | 2720 | 2775 |
| overall width | mm | 1150 | 1225 | ||
| mast lowered height | mm | 2050 | 2080 | 2230 | |
| mast extended height | mm | 4040 | 4272 | ||
| overhead guard height | mm | 2060 | 2090 | ||
| turning radius | mm | 2170 | 2240 | 2460 | 2540 |
| service weight | 3550 | 3880 | 4380 | 4750 | |
| front tire | 7.00-12-12PR | 28*9-12-12PR | 28*9-12-14PR | ||
| rear tire | 6.00-9-10PR | 6.50-10-10PR | |||
certification
Company Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
