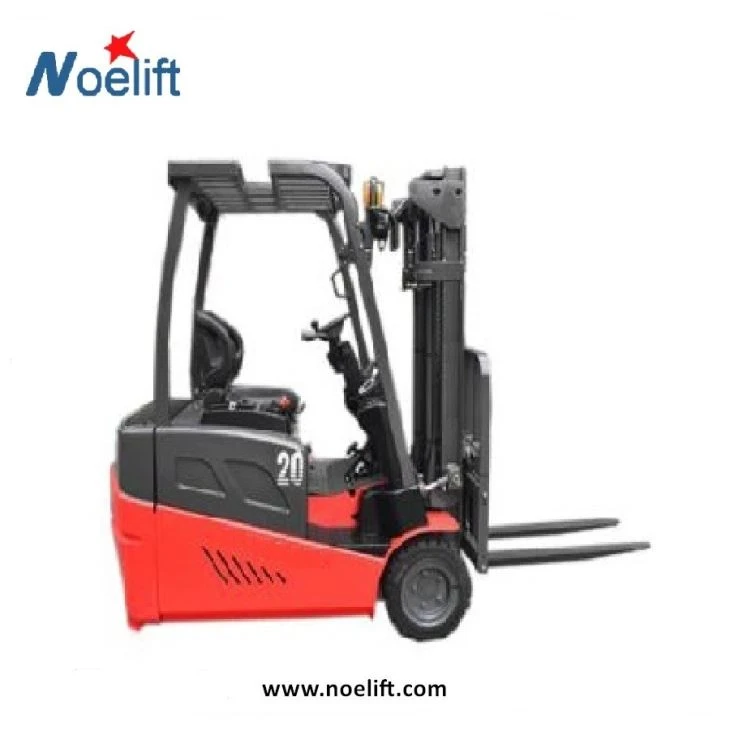

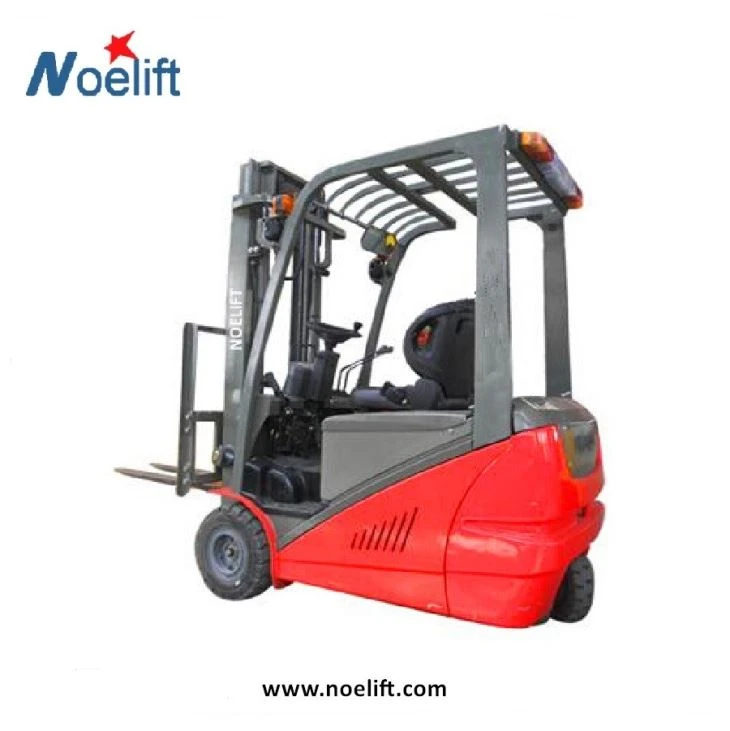

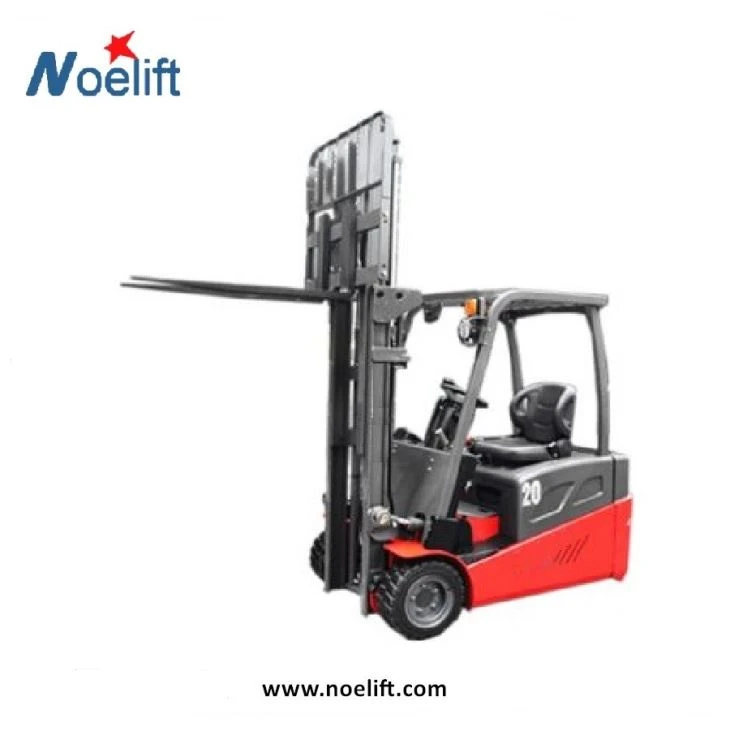

Full AC System 3 Wheel 1.6-2.0 Ton Electric Counterbalance Forklift
Full AC 3 WHEEL ELECTRIC FORKLIFT 1.5T 2.0T
Loaded Capacity: 1ton, 1.5tons. Optional lift height: 3000-6000mm.
for battery to let the world with lower center.of gravity.t s improve safety during working.
Hiheficient spur gears of transverse crvemodel can play a higher level of energycificcemenern Luss reduce 25% comordmore working time and satisfy the normal requirements.
AC brushless drive motor to reduce the make the forklift with long time using based on normal! output
Romps ANIarY Boake SystemNOT SLIDING DOWN
| Specification: | |||
| Brand | NOELIFT | NOELIFT | |
| Model | TKC16 | TKC20 | |
| Power Type | Battery | Battery | |
| Operation Type | Seated | Seated | |
| Service weight(incl. battery) | kg | 3050 | 3200 |
| Rated Capacity | Q(kg) | 1600 | 2000 |
| Load Center | C(mm) | 500 | 500 |
| Lifting height | h3(mm) | 3000 | 3000 |
| Forks size | l/e/s(mm) | 1070/100/35 | 1070/100/40 |
| Front Overhang | x(mm) | 345 | 345 |
| Turning radius | Wa(mm) | 1660 | 1660 |
| Max. climbing ability | %(tanθ ) | 12/14 | 13/15 |
| Driving speed(load/unload) | km/h | 12/13 | 12/13 |
| Lifting speed(load/unload) | mm/s | 260/340 | 260/340 |
| Lowering speed(load/unload) | mm/s | / | / |
Standard Configuration
| Optional
|
