Electic Forklift
Product Description 1.5ton mini 3-wheel electric forklift truck TKA series 1. Rated load capacity: 1500 kg 2. maximum lift height: 4500mm 3. AC drive motor with strong applicability 4. suitable for small space operation and storey operation ADVANTAGE: 1. Safety neutral device which does not...
Send Inquiry
Product Introduction
Product Description
Advantage : Mini electric forklift,more convenient for narrow place.
Dual-motor front wheels drive with Electric differential speed shows excellent sensitivity, optimum acceleration, travelling and climbing capacity.
Integrated load-sensing steering unit and low-noise gear pump make lower noise;
Standard configuration DC voltage converter balances use of the battery to fully extend the battery life;
Tool box and file folder
Battery lateral extraction
Low noise gear pump
Full hydraulic steering
Full suspension seat with belt and switch
Operator presence system
Rear handle with horn
Dual-motor front wheels drive with Electric differential speed shows excellent sensitivity, optimum acceleration, travelling and climbing capacity.
Integrated load-sensing steering unit and low-noise gear pump make lower noise;
Standard configuration DC voltage converter balances use of the battery to fully extend the battery life;
Tool box and file folder
Battery lateral extraction
Low noise gear pump
Full hydraulic steering
Full suspension seat with belt and switch
Operator presence system
Rear handle with horn

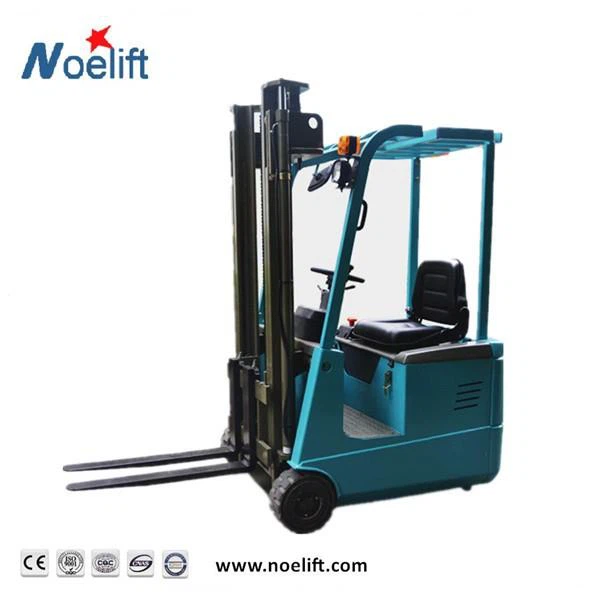

Product Picture
mini 3wheels electric forklift truck TKA series
Product Parameter
Description | 3-wheel electric forklift truck | |
Model | TKA10-30 | TKA15-30 |
Load capacity Kg | 1000 | 1500 |
Load center mm | 500 | 500 |
Max. lifting height mm | 3000 | 3000 |
Wheel type | Polyurethane solid tire | |
Fork size(LxWxT) mm | 920X100X35 | 920X100X35 |
Overall length(without forks) mm | 1350 | 1450 |
Overall width mm | 870 | 1100 |
Overall height mast closed mm | 2070 | 2070 |
Overall height fork raised(without backrest) mm | 3535 | 3535 |
Overhead guard height mm | 1965 | 1965 |
Outside turning radius mm | 1170 | 1272 |
Total weight( with battery) Kg | 1950 | 2170 |
Battery V/Ah | 24/360 | 24/480 |
Charger V/A | 24/40 | 24/50 |
Driving motor Kw | 2.8 AC | 2.8 AC |
Lifting motor Kw | 3.5 | 3.5 |
