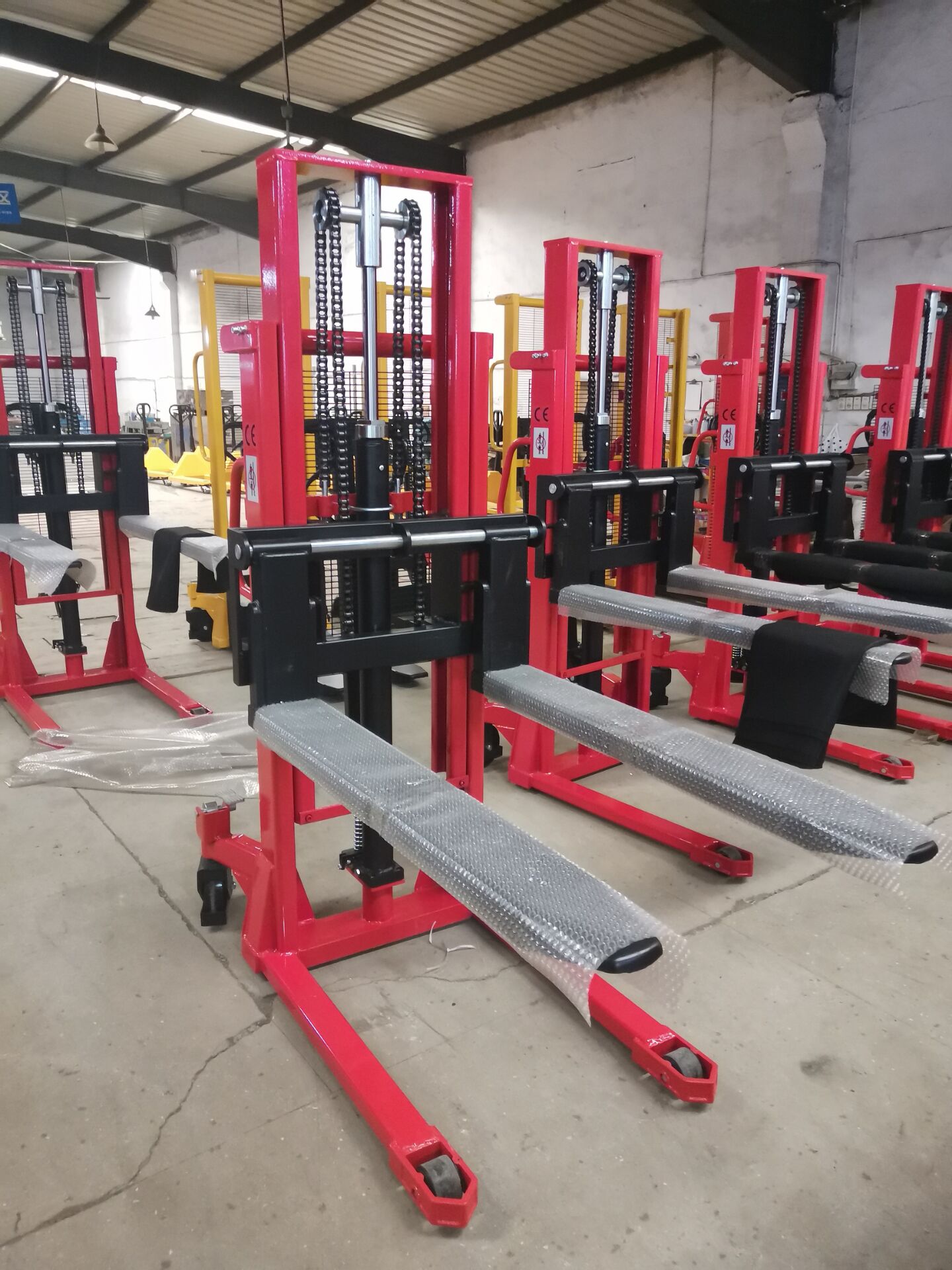

2000kg High Lift 1.6M Manual Hand Stacker
2000kg High Lift 1.6M Manual Hand Stacker applies C type steel structure design,lifting more stable and safe.
Send Inquiry
Product Introduction
Parameter
| Manfacturer | Noelift | ||||
| Model | SYC0516 | SYC1016 | SYC1516 | SYC2016 | |
| Power supply | Manual | Manual | Manual | Manual | |
| Unload type | Hand | Hand | Hand | Hand | |
| Capacity | kg | 500 | 1000 | 1500 | 2000 |
| Lifting height | mm | 1600 | 1600 | 1600 | 1600 |
| Lowered fork height | mm | 85 | 85 | 85 | 85 |
| Fork length | mm | 1000 | 1150 | 1150 | 1150 |
| Fork width | mm | 330-740 | 330-740/550 | 330-740/550 | 330-740/550 |
| Front wheel | mm | Φ80*58 | Φ80*58 | Φ80*58 | Φ80*58 |
| Loaded wheel | mm | Φ180*50 | Φ180*50 | Φ180*50 | Φ180*50 |
| Overall dimension | mm | 1600*760*2030 | |||
| Leg weight | mm | 690 | 690 | 690 | 690 |
| Net weight | kg | 150 | 224 | 240 | 270 |
Detailed Images
Detailed Images
Our Services
1.We promise reply in time. 2.Afford partner with 1 year free maintenance. 3.Afford OEM service.4.Accept the feedback and improve.5. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
