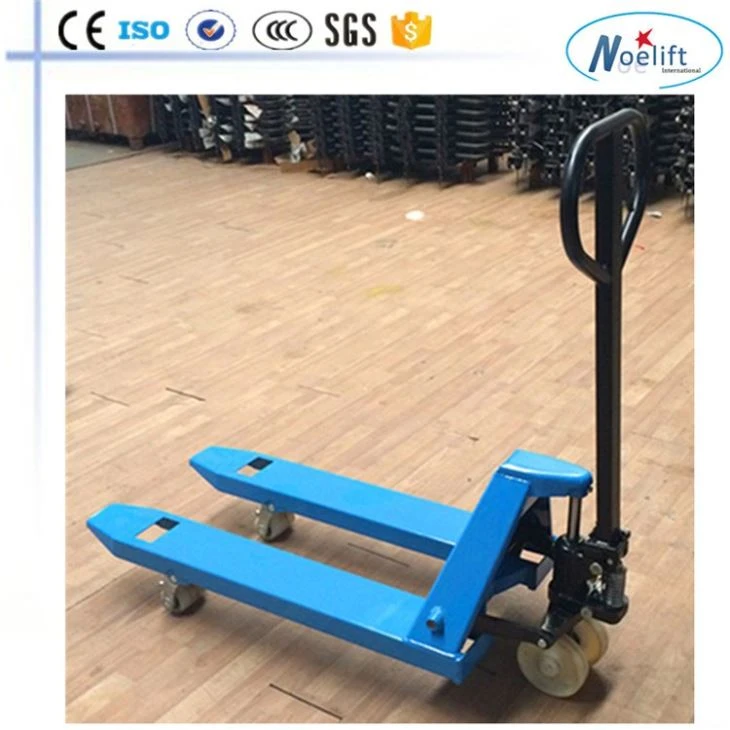

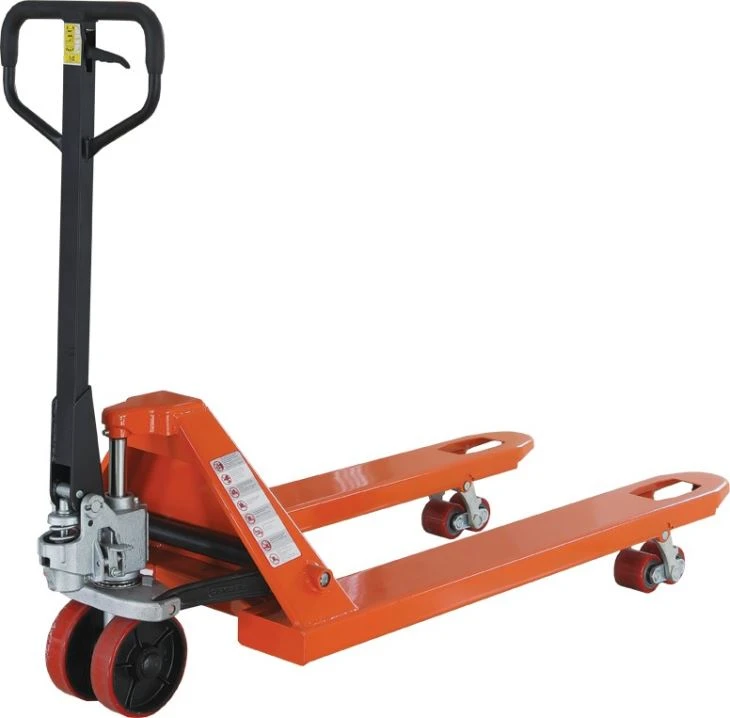

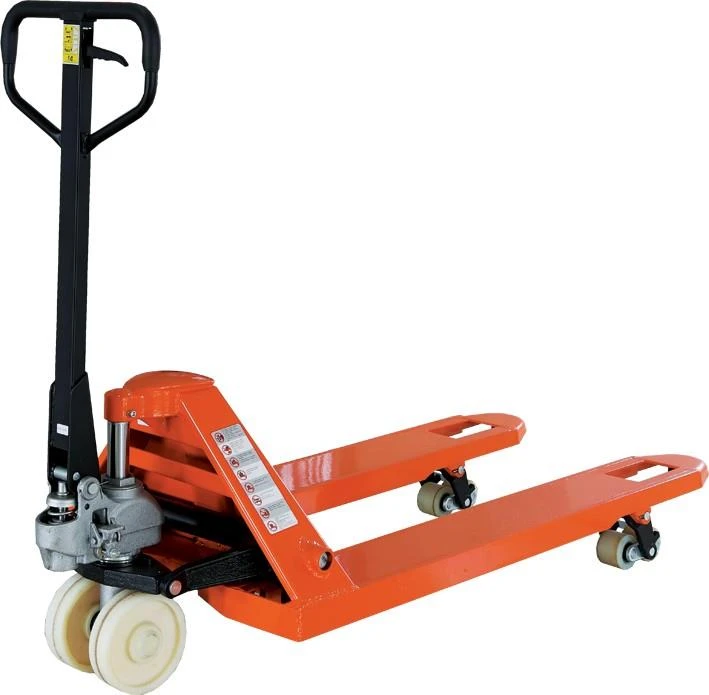

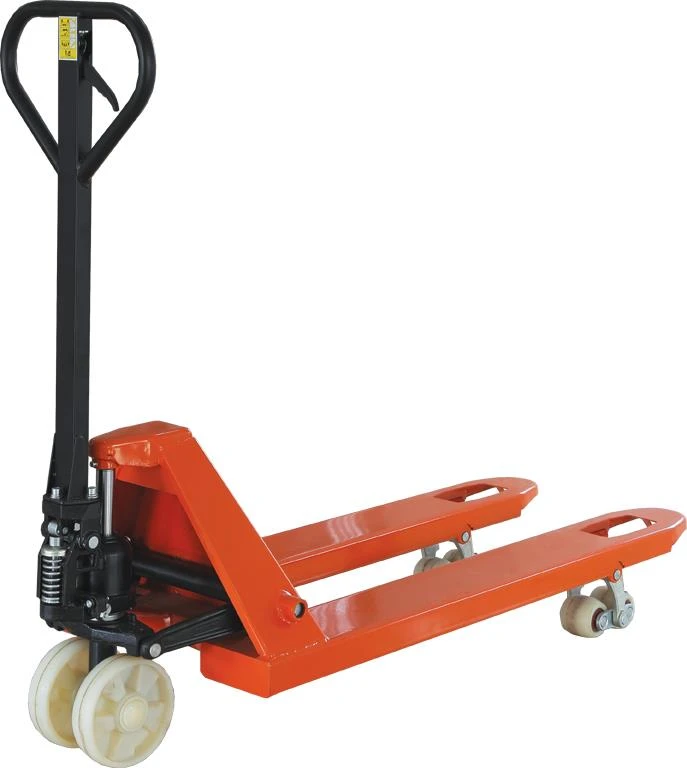

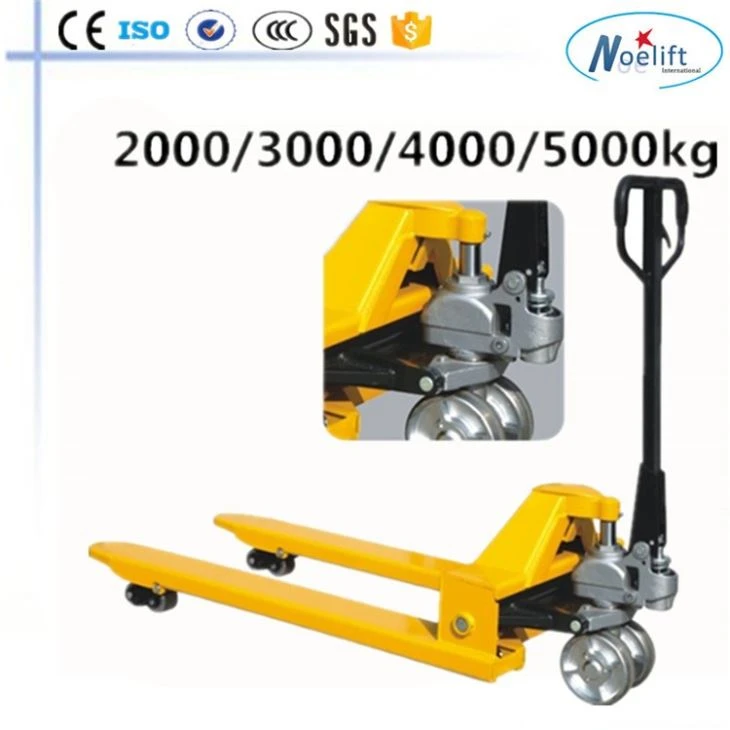

2-5 Tons Attractive Ecnomic High Cost Performance Hand Pallet Truck
Products Description
2-5 tons attractive ecnomic high cost performance hand pallet truck
1.TUV, CE
2.casting pump
3.high quality oil seal
4.ergonomical and innovation design
5.help you to do your work more efficient
Details Images
2-5 tons attractive ecnomic high cost performance hand pallet truck
FAQ
2-5 tons attractive ecnomic high cost performance hand pallet truck
Q1. What is your terms of packing?
A: Generally, we pack our goods in International packing standard way with additional speical fixed. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What's your warranty?
A: Key parts for 12months. Easily damaged parts are not in the range of the warranty. During the warranty term, key parts are damaged (not caused by improper operation), seller will compensate buyer with the replacement parts free of charge. Buyer will show seller clear picture to verify they are damaged indeed. If necessary, seller can ask buyer to return the damaged parts.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
The Failure analysis of gear pump
| Phenomenon | cause | exclusion methods |
| The discharge quantity of oil is little | the level of oil tank is low | add oil to stipulates quantity |
| the Pipeline or oil leak detector was | Clean or replace | |
| The Pressure of Pump is low | Lining board damaged | replace |
| spill valve improperly adjusted | Adjust the pressure of spill valve by pressure gage to specified value | |
| System with air | Re-tighten the oil-absorbing side pipeline | |
| There is noise when Operating | oil suction pipe damaged or Oil filter blocked | Check the pipe or Maintenance the oil filter |
| Loose or leak of the suction side | Tighten the loose | |
| Oil viscosity is too high | Using viscosity oil compatible with operating temperature of the pump | |
| There are bubbles in the oil | Find the cause of bubbles and to take measures | |
| The oil spilled from the pump | Pump oil seal or seal damaged | replace |
| The pump is damaged | replaces |
The Failure analysis of multi-way valve
| Fault | cause | treatment method |
| Lifting oil pressure is not high | Slide-valve block | Cleaning after decomposed |
| Oil hole plug | Cleaning after decomposed | |
| Shock pressure rise slowly | Slide-valve block | Cleaning after decomposed |
| Exhaust is not fully | Full exhaust | |
| Steering oil pressure is greater than the specified value | Slide-valve block | Cleaning after decomposed |
| Oil hole plug | Cleaning after decomposed | |
| Amount of oil does not meet the provisions | spill valve adjusted wrong | adjust |
| noise | spill valve adjusted wrong | adjust |
| Sliding surface wear | Replace the spill valve | |
| External oil leak | O-ring aging or damaged | Replace o-shape sealing ring |
| The set pressure is low | Spring broken | Replace spring |
| Valve seat damage | Adjust or replace the spill valve | |
| Internal leak oil | Valve seat damage | Fix seating faces |
| The set pressure is high | Valve block | Cleaning after decomposed |
Certifications
2-5 tons attractive ecnomic high cost performance hand pallet truck
Contact
2-5 tons attractive ecnomic high cost performance hand pallet truck
Thanks for coming to our Noelift company. if you need more information or technical assistance or any comment or questions, please feel free to contact me as below:
2-5 tons attractive ecnomic high cost performance hand pallet truck
| 项目 Item | 单位 Unit | 型号 Model | |
CBY-II/CBY-III | |||
| 额定载荷 Capacity | kg | 2000/2500/3000 | |
| 货叉宽度 Fork width | mm | 540/685 | |
| 货叉长度 Fork length | mm | 1100/1150/1220 | |
单个货叉规格（宽*厚） Single fork Size( width * thickness ) | mm | 160*60 | |
| 最大起升高度 Max. lifting height | mm | 195 | 185 |
| 最低高度 Lowered fork height | mm | 85 | 75 |
| 载重轮尺寸 Loaded wheel | mm | 180*50 | |
| 前轮尺寸 Front wheel | mm | 单轮 Single( 80*93 ) 双轮 Double( 80*70 ) | |
| 轮子材料 Material of wheel | mm | 尼龙 Nylon 橡胶 Rubber 聚氨酯 Polyurethane | |
| 净重 Net | kg | 65-75 | |
装箱量（20’尺柜） Packing Qty ( 20 feet container ) | sets | 180（货叉宽度550mm或更小） 180（fork width 550mm or less） | 144（货叉宽度685mm） 144（fork width 685mm） |
| 项目 Item | 单位 Unit | 型号 Model | |
CBY-5N | |||
| 额定载荷 Capacity | kg | 5000 | |
| 货叉宽度 Fork width | mm | 550/685 | |
| 货叉长度 Fork length | mm | 1150/1220 | |
单个货叉规格（宽*厚） Single fork Size( width * thickness ) | mm | 180*60 | |
| 最大起升高度 Max. lifting height | mm | 195 | 185 |
| 最低高度 Lowered fork height | mm | 85 | 75 |
| 载重轮尺寸 Loaded wheel | mm | 180*50 | |
| 前轮尺寸 Front wheel | mm | 双轮 Double( 80*70 ) | |
| 轮子材料 Material of wheel | mm | 尼龙 Nylon 铁轮 Iron | |
| 净重 Net | kg | 150/170 | |
装箱量（20’尺柜） Packing Qty ( 20 feet container ) | sets | 120（货叉宽度550mm或更小） 120（fork width 550mm or less） | 96（货叉宽度685mm ) 96（fork width 685mm） |
2-5 tons attractive ecnomic high cost performance hand pallet truck
