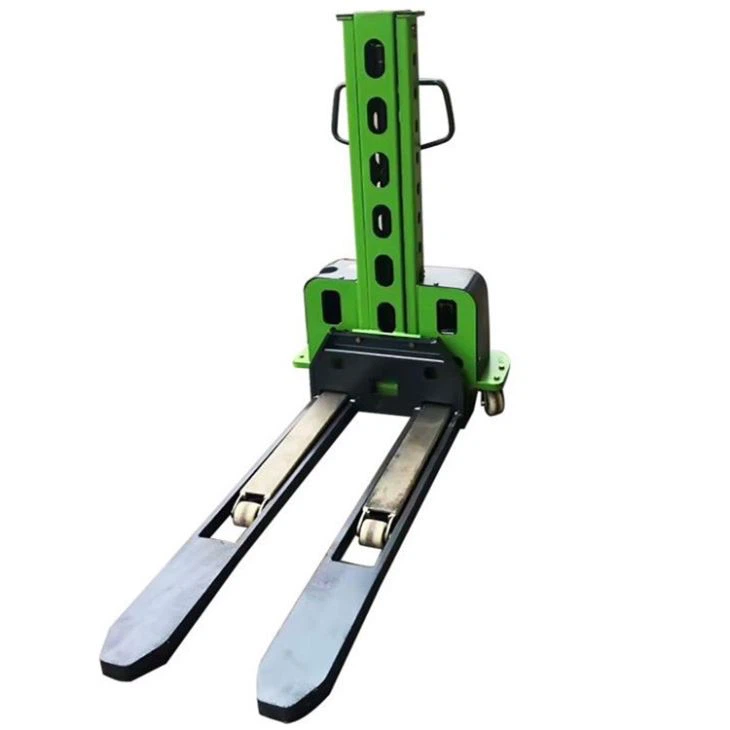

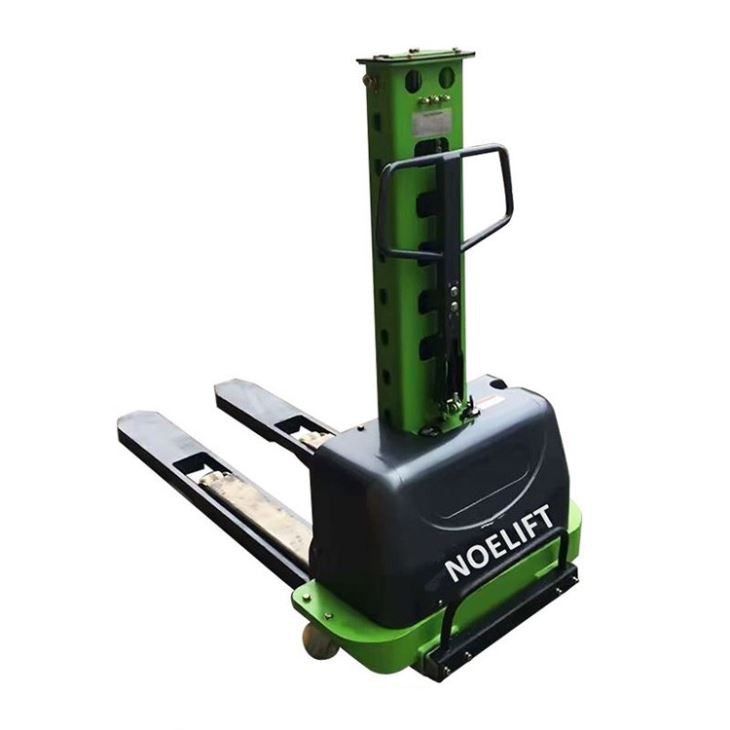

Electric Pallet Stacker Protable 500kg Self Loading Forklift For Sales

Noelift is a manufacturer specializing in portable electric self load stackers. Our CDD series self-elevating stacker cranes can be raised up to 1.6 meters and have a load capacity of 500-1000 kg. Compared to traditional electric stackers, Noelift CDD series jack-up stackers are more portable because they can load and unload items next to trucks. If your cargo is not too heavy, these stackers can even perfectly replace traditional tail lifts.

Self loading forklift, load capacity: 500kg, lift height, 800mm, 1m & 1.3m optional.
1. Steering Chain auxiliary device;
2. The foot brake, more stable;
3. Sealed batteries free of maintenance;safe operation and no pollution;
4. Explosion-proof valve design.down more stable and reliable;

5. Over discharge protection, extending battery life.

Manufacturer		NOELIFT
Model		CDD05Z
Operation		Manual Driving, Electrical Lifting
capacity	kg	500	500	500
loading center	mm	400	400	400
wheelbase	mm	860	860	860
front wheel distance	mm	380	380	380
rear track	mm	670	670	670
min.fork height	mm	90	90	90
max.fork height	mm	800	1000	1300
steeling wheel	mm	Φ100x45	Φ100x45	Φ100x45
loading wheel	mm	Φ70x60	Φ70x60	Φ70x60
overall lenghth	mm	1600	1600	1600
overall width	mm	780	780	780
fork size	mm	1150*540	1150*540	1150*540
forkwidth	mm	535	535	535
turning radius	mm	1100	1200	1200
lifting speed	mm/s	80	80	80
descent speed	mm/s	90	90	90
lifting motor power	kw	12v/0.8	12v/0.8	12v/0.8
battery	V/AH	12/45	12/45	12/45
type of driving		pedestrian	pedestrian	pedestrian
material of wheel		Polyurethane	Polyurethane	Polyurethane
net weight	kg	243	250	265

NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
