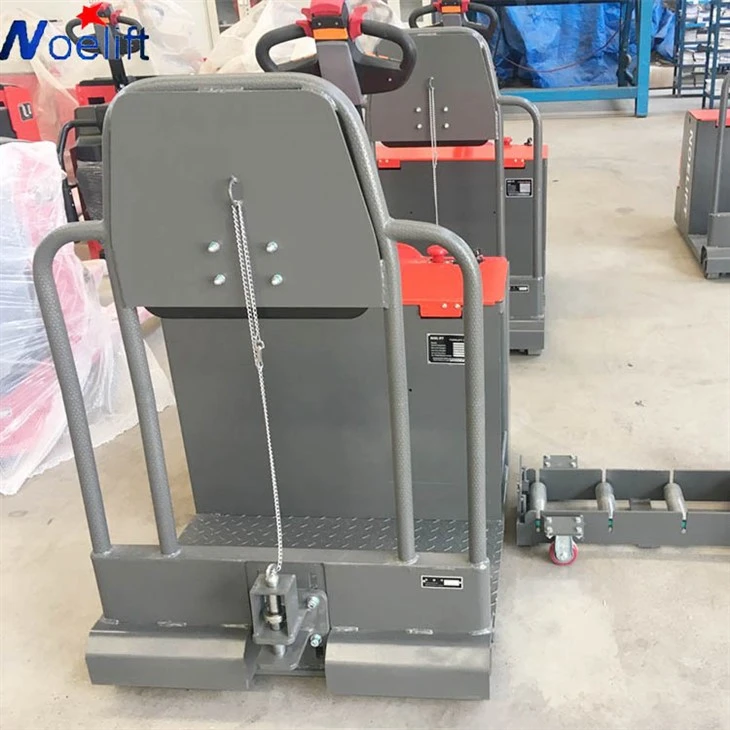

Waterproof Standing Driving 3ton Electric Tow Tractor
with a rated load of 2000KG/3000KG,
which can be connected to various types of trailers.
electric tow tractor Description
product advantage
Maintenance-free high-power AC drive system, providing reliable driving power; 210AH large-capacity battery, strong endurance;
Standard configuration of American CURTIS controller and instrument, reliable and durable
The American AMP waterproof and dustproof plug-in provides reliable protection of the circuit and greatly reduces electrical failure;
Smart charger, convenient and quick to charge, can well protect the battery;
Electromagnetic braking, automatic braking when power off, to ensure that the car will not slip when parking;
Integrated operating handle, safe, labor-saving and flexible operation.
Important parameters
| Specifications | ||||
| Standard | ||||
| 1.1 | Manufacturer | NOELIFT | ||
| 1.2 | Model designation | TG20/30 | ||
| 1.3 | Power unit | Battery | ||
| 1.4 | Operation | stand-on | ||
| 1.5 | Wheelbase | y(mm) | 975 | |
| Weight | ||||
| 2.1 | Service weight(with battery) | kg | 550 | |
| 2.2 | Axle loading, unladen drive/load | kg | 350/200 | |
| 2.3 | Battery weight | kg | 200 | |
| Wheel | ||||
| 3.1 | Tyre,operator/load side | Rubber | ||
| 3.2 | Tyre size,drive | mm | Φ215×75 | |
| 3.3 | Tyre size,load | mm | Φ150×60 | |
| 3.4 | Wheels number, front/back(x=driven) |
1X/2 | ||
| 3.5 | Tread, drive | b3(mm) | / | |
| 3.6 | Tread, load | b2(mm) | 770 | |
| Size | ||||
| 4.1 | Overall height | h14 | 1361 | |
| 4.2 | Towing coupling height | h10(mm) | 140-240 | |
| 4.3 | stand height | h2(mm) | 97 | |
| 4.4 | Overall length | l1(mm) | 1238 | |
| 4.5 | Overall width | b1(mm) | 850 | |
| 4.6 | Ground clearance, centre ofwheelbase |
m2(mm) | 50 | |
| 4.7 | Turning radius | Wa(mm) | 1160 | |
| Function | ||||
| 5.1 | Rated drawbar pull | F(N) | 750 | |
| 5.2 | Service brake | Electromagnetic | ||
| Drive | ||||
| 6.1 | Drive motor rating(S2-60 min) | kw | 1.5(AC) | |
| 6.2 | Battery voltage/rated capacity | V/Ah | 24/210 | |
| 6.3 | Steering System | Mechanical | ||
| Other | ||||
| 7.1 | Battery replaces | Hoisting | ||
