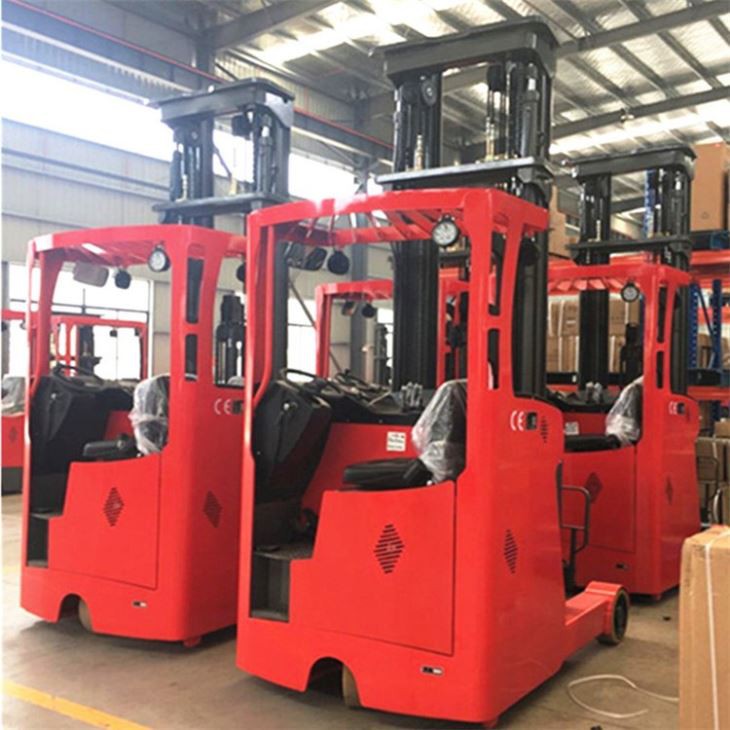

Narrow Aisle Reach Electric Stacker
2, 7.2M lifting height is no problem.
3, Wide vision mast, soft and comfortable design.
Narrow Aisle reach Electric Stacker Specifications
The narrow aisle telescopic forklift is designed to improve work efficiency, safety and intelligent operation. Its unique features enable it to be tailored to different operational needs to achieve optimal performance. First, this forklift has improved maneuverability in a small space through optimized design, making cargo storage and retrieval more flexible and efficient. Secondly, the safety aspect has been specially enhanced, including technologies such as stability systems and smart sensors, which can reduce the risk of accidents and ensure the safety of operators. In addition, this forklift also has intelligent management functions, which can seamlessly connect with the warehouse management system, monitor the operating status of the forklift in real time, and improve the overall operational transparency and management efficiency. Users can choose the functional configuration suitable for their own enterprises according to different operating environments and requirements, making the use of forklifts more targeted and flexible. This tailor-made design concept not only improves the practicality of the equipment, but also saves operating costs for enterprises, and helps the efficient development of the warehousing and logistics industry.
Advantages:
1. All-wheel braking: equipped with front wheel and rear wheel braking, the braking effect is better, and it can be used on wet and icy ground, making the operation safer for operators;
2. Ergonomic design: easy operation bar design and multi-functional intelligent instrument panel, with wheel display function, more comfortable and convenient operation;The front and rear seats can be adjusted to provide the most comfortable operating environment for the operator.


Specifiction parameters
| Manufacturer | NOELIFT | |||||
| Model | TFZ20-30 | TFZ20-45 | TFZ20-75 | TFZ20-80 | TFZ20-90 | |
| Power unit | Electric | Electric | Electric | Electric | Electric | |
| Operation | sit | sit | sit | sit | sit | |
| Capacity | kg | 2000 | 2000 | 2000 | 2000 | 2000 |
| Load center | mm | 500 | 500 | 500 | 500 | 500 |
| front overhang | mm | 215 | 215 | 205 | 205 | 205 |
| Service weight (with battery) |
kg | 3443 | 3824 | 3824 | 3824 | 3824 |
| Tyre | Solid PU | Solid PU | Solid PU | Solid PU | Solid PU | |
| Lift height | mm | 3000 | 4500 | 7500 | 8000 | 9000 |
| Mast Lowered Height | mm | 2175 | 2251 | 3250 | / | / |
| Stand height | mm | 376 | 376 | 376 | 376 | 376 |
| Overall lenght | mm | 2432 | 2432 | 2432 | 2432 | 2432 |
| Overall width | mm | 1270/1290 | 1270/1290 | 1270/1290 | 1270/1290 | 1270/1290 |
| Fork size | mm | 1070/100/40 | 1070/100/40 | 1070/100/40 | 1070/100/40 | 1070/100/40 |
| steering system | Hydraulic and electric power | |||||
| Battery | V/AH | 48/560 | 48/560 | 48/560 | 48/560 | 48/560 |
| Driving motor | kw | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Lifting motor | kw | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 |
| Reach distance | mm | 617 | 617 | 617 | 617 | 617 |
| Overhead guard height | mm | 2200 | 2200 | 2200 | 2200 | 2200 |
| braking method | Mechanical | |||||
Products Certifications
