Stand On Type Reach Truck 2.5t Forklift
Stand On Type Reach Truck 2.0T-3.0T
The TF series is a stand-on type reach truck with load 2.0T - 3.0T. The gantry can be moved forward or retracted as a whole, with a small body and turning radius and higher efficiency.
Applicable to:
Medium storage density, high turnover rate conditions;
Stacking in narrower channels.
Parameter
Manufacturer | NOELIFT | NOELIFT | NOELIFT | |
Model | TF20 | TF25 | TF30 | |
Power type | Battery | Battery | Battery | |
Operate type | Stand on | Stand on | Stand on | |
Service weight（incl.battery） | kg | 2750 | 3300 | 3400 |
Load capacity | Q(kg) | 2000 | 2500 | 3000 |
Load center | C(mm) | 500 | 500 | 500 |
Lift height | h3(mm) | 3000 | 3000 | 3000 |
Fork size | l/e/s(mm) | 1070/100/40 | 1070/100/45 | 1070/125/45 |
Front overhang | x(mm) | 180 | 185 | 185 |
Turning radius | Wa(mm) | 1784 | 1995 | 2192 |
Max.gradeability | 10% | 10% | 10% | |
Traveling speed, laden/unladen | km/h | 9/10 | 9/10 | 8/10 |
Lifting speed,Laden/unladen | mm/s | 220/380 | 240/320 | 220/320 |
Lowering speed,Laden/unladen | mm/s | 310/260 | 340/290 | 340/290 |

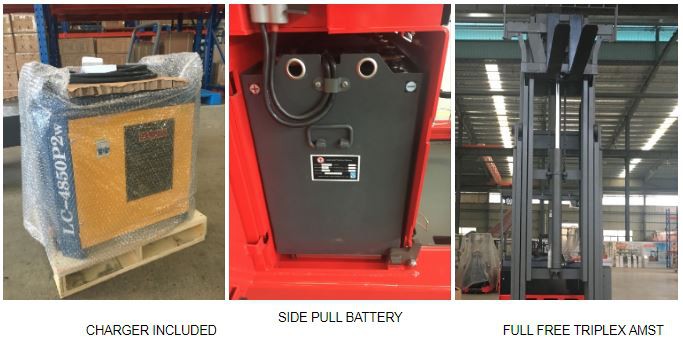

Details
Company Introduction
NOELIFT EQUIPMENT CO., LTD, as one of the professional material handling equipment manufacturer, we provide a whole product range
including diesel/gasoline/LPG forklift truck with load capacities of 1 to 10tons and electric/warehouse trucks, which including
1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic
pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompasses close to 100 different models.
Our Services
1. One-stop solution service.
2. Customized-service all accepted
3. Customer service is on time.
4, Warranty: 12 months.
Any questions please feel free to contact me, I will reply asap!
Noelift would love to provide the most professional service to you!
