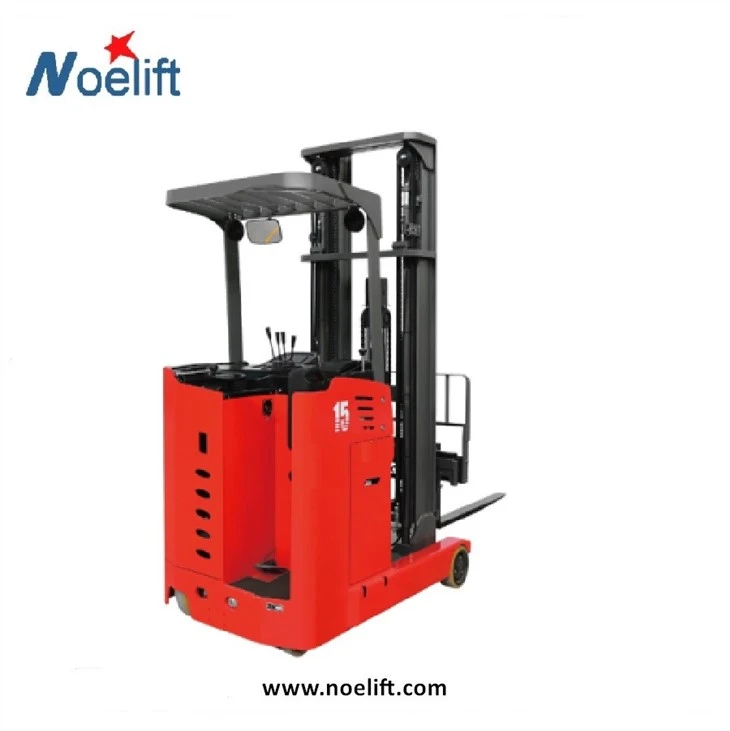

Electric Reach Forklift With3000kg
The TF series is a new forward-moving forklift with 3000kg. The mast can be moved forward or retracted as a whole, with a smaller body and turning radius and higher efficiency.
Send Inquiry
Product Introduction
new electric reach truck forward-moving forklift with a carrying capacity of 1.2 to 3.0 tons
The TF series is forklift with a carrying capacity of 3000 tons. The maintenance-free AC drive system enables the vehicle to respond more quickly and accurately.The mechanical disc brake is released when the brake pedal is stepped on to ensure safe operation
| Brand | NOELIFT | NOELIFT | |
| Model | TF30(Duplex mast) | TF30(Triplex full free mast) | |
| Power type | Battery | Battery | |
| Operation type | Stand on | Stand on | |
| Rated capacity | Q(kg) | 3000 | 3000 |
| Load center | C(mm) | 500 | 500 |
| Service weight(incl. battery) | kg | 3400 | 3680 |
| Wheel type | PU | PU | |
| Front wheel | mm | Φ267×135 | Φ267×135 |
| Drive wheel | mm | Φ380×165 | Φ380×165 |
| Mast closed height | h1(mm) | 2082 | 2292 |
| Free Lift height | h2(mm) | 80 | 1550【1】 |
| Lift height | h3(mm) | 3000 | 4500 |
| Overall length | l1(mm) | 2487 | 2534 |
| Overall width | b1/b2(mm) | 1190/1270 | 1190/1270 |
| Fork size | l/e/s(mm) | 1070/125/45 | 1070/125/45 |
| Driving speed(load/unload) | km/h | 8/10 | 8/10 |
| Lifting speed(load/unload) | mm/s | 220/320 | 200/300【3】 |
| Lowering speed(load/unload) | mm/s | 340/290 | 310/260【3】 |
| Lifting Motor(S3-15%) | kw | 8.6 | 8.6 |
| Battery voltage/capacity | V/Ah | 48/400 | 48/400 |
| Battery weight | kg | 650 | 650 |
| Steering system | EPS | EPS |
