Forward-moving Forklift can bear 1.2 To 3.0 Tons

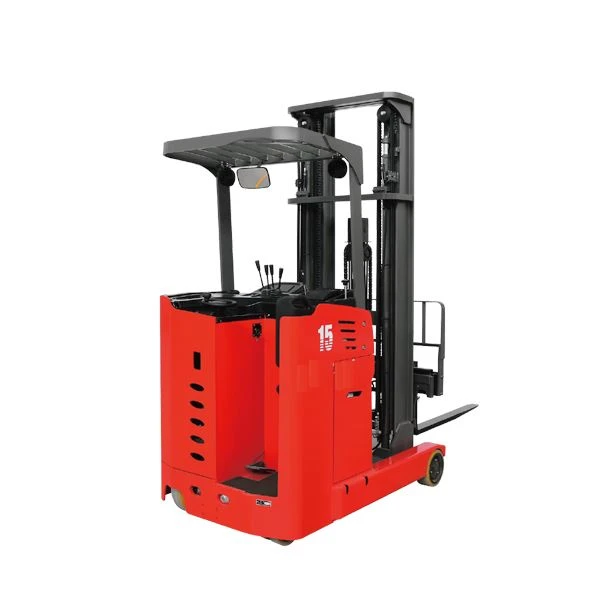

new electric reach truck forward-moving forklift with a carrying capacity of 1.2 to 3.0 tons
The TF series is a new forward-moving forklift with a carrying capacity of 1.2 to 3.0 tons. The mast can be moved forward or retracted as a whole, with a smaller body and turning radius and higher efficiency.
PRODUCT ADVANTAGE
1. The maintenance-free AC drive system enables the vehicle to respond more quickly and accurately.
2. Equipped with pure electric steering, which makes steering more labor-saving, reduces fatigue strength and improves efficiency.
3. The ingenious mast design increases the free lifting height (TF15).
4. The mechanical disc brake is released when the brake pedal is stepped on to ensure safe operation.
5. Smaller body size, smaller turning radius and right-angle stacking channel.
6. With turning speed limit function, turning automatically slows down, effectively protecting the safety of cargo and operators.
| Brand | NOELIFT | NOELIFT | NOELIFT | NOELIFT | |
| Model | TF15D(Duplex mast) | TF15D(Triplex full free mast) | TF15(Duplex mast) | TF15(Triplex full free mast) | |
| Power type | Battery | Battery | Battery | Battery | |
| Operation type | Stand on | Stand on | Stand on | Stand on | |
| Rated capacity | Q(kg) | 1500 | 1500 | 1500 | 1500 |
| Load center | C(mm) | 500 | 500 | 500 | 500 |
| Front overhang | x(mm) | 140 | 140 | 180 | 180 |
| Wheelbase | y(mm) | 1345 | 1345 | 1345 | 1345 |
| Service weight(incl. battery) | kg | 2100 | 2350 | 2450 | 2850 |
| Wheel type | PU | PU | PU | PU | |
| Fork tilt | α/β(°) | 3/5 | 3/5 | 3/5 | 3/5 |
| Mast closed height | h1(mm) | 2080 | 2080 | 2082 | 2142 |
| Free Lift height | h2(mm) | / | 1480【1】 | 400 | 1542【1】 |
| Lift height | h3(mm) | 3000 | 4500 | 3000 | 4500 |
| Overall length | l1(mm) | 2078 | 2106 | 2258 | 2283 |
| Overall width | b1/b2(mm) | 1090/1000 | 1090/1000 | 1090 | 1090/1170 |
