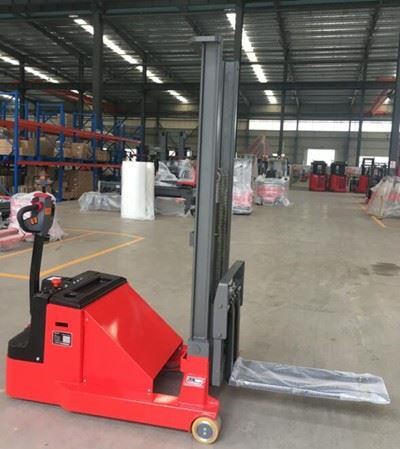

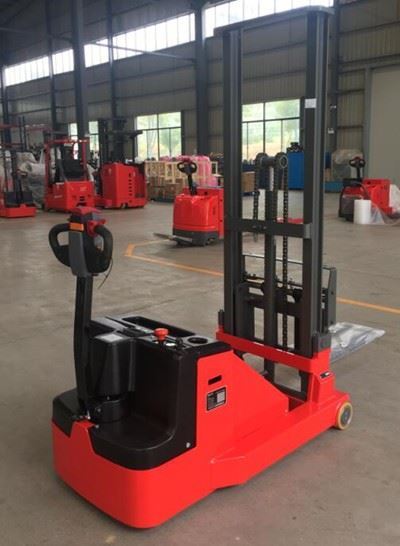

Electric Pallet Stacker TBB0925 900kg Electric Stacker Lift
Electric pallet stacker. Its body is small and light. It is suitable for narrow space such as floor operation and elevator. Its Forkless leg design is suitable for more specifications of pallets.
Send Inquiry
Product Introduction
Product Description
Specification
| Manufacturer | NOELIFT | |
| Model | TBB0925 | |
| Power type | Battery | |
| Operation Type | Walkie | |
| Rated Capacity | Q(kg) | 900 |
| Load Center | C(mm) | 400 |
| Front Overhang | x(mm) | 80 |
| Wheelbase | y(mm) | 1150 |
| Service Weight(incl.battery) | kg | 1160 |
| Bridge load at no load, drive side/load-bearing side | kg | 600/560 |
| Bridge load at full load, drive side/load-bearing side | kg | 227/1833 |
| Mast closed height | h1(mm) | 1745 |
| Free lift height | h2(mm) | / |
| Lift height | h3(mm) | 2500 |
| Mast extended height with load-backrest | h4(mm) | 3100 |
| Overall length | L1(mm) | 2235 |
| Overall width | b1/b2(mm) | 700/875 |
| Fork size | l/e/s(mm) | 850/100/35 |
| Fork carriage width | b3(mm) | 650 |
| Fork outside width | b5(mm) | 220-600 |
| Inner pitch of the Outrigger | b4(mm) | 625 |
| Handle height(min/max) | h14(mm) | 820-1150 |
| Mast ground clearance | (mm) | 50 |
Company profile
Our service
1. ONE-STOP SHOP service
2.Customized service
3. 12 months warranty, free spare parts delivery within one week.
FQA
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below:
L/C, Wester union
