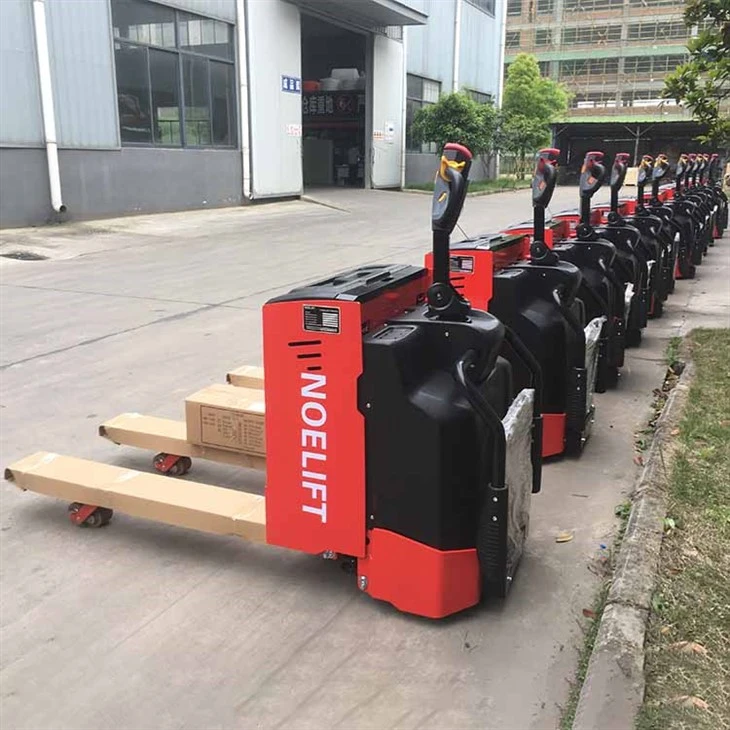

2ton Pallet Truck Driven By Battery Power
with a rated load of 2000KG/6000KG,
It is driven by battery power and pure electric steering.
electric pallet truck Specifications
With its state-of-the-art AC motor technology, the Noelift 2-ton pallet truck ensures exceptional lifting capacity and efficiency. Our pallet trucks with AC stepless power all include state-of-the-art AC motors, superior lifting capacities, and upgraded safety measures. We also have variants with capacities of 2.5 and 6 tons.
Feature:
- Advance ac motor truck
- Brushless, reduce service cost
- With flux ac inverter
- 30% battery efficiency improvement
- Hidden caster wheels, improve safety
- Suitable for both open and closed pallets
- Suspension drive motor allowing to use the truck on uneven surfaces
- Quiet and safe operation
- Environmentally, friendly, durable, reliable truck
- Electric drive, electric lifting
- This truck has cold version for -35 cold storage use
- Lifting capacity
Specifiction parameters
| Model | TE20 | |
| Power type | Battery | |
| Operation type | Stand on | |
| Rated capacity | Q(kg) | 2000 |
| Load center | C(mm) | 600 |
| Load distance | x(mm) | 865 |
| Wheel base | y(mm) | 1345 |
| Service weight(incl. battery) | kg | 676 |
| Axle capacity with full load,drive side/load side | kg | 920/1756 |
| Axle capacity without load,drive side/load side | kg | 547/129 |
| Tyre,operator/load side | PU | |
| Load wheel | mm | Φ80×70 |
| Drive wheel | mm | Φ230×75 |
| Auxiliary wheel | mm | Φ125×50 |
| Number of wheels,load/drive(x=drive )+auxiliary | 4/1X+2 | |
| Tread, drive | b10mm) | 476 |
| Tread, load | b11(mm) | 510 |
| Overall height | h1(mm) | 1380 |
| Lift height | h2(mm) | 120 |
| Fork face min.ground clearance | h3(mm) | 85 |
| Pedal height | h4(mm) | 155 |
| Handle Height | h5(mm) | 1080∽1340 |
| Overall length,pedal off /on | l1(mm) | 1900/2310 |
| Overall width | b1(mm) | 730 |
| Fork outside size | b2(mm) | 680/540 |
| Fork size | l/e/s(mm) | 1150/170/56 |
| Body ground clearance | m2(mm) | 35 |
Products Certifications
