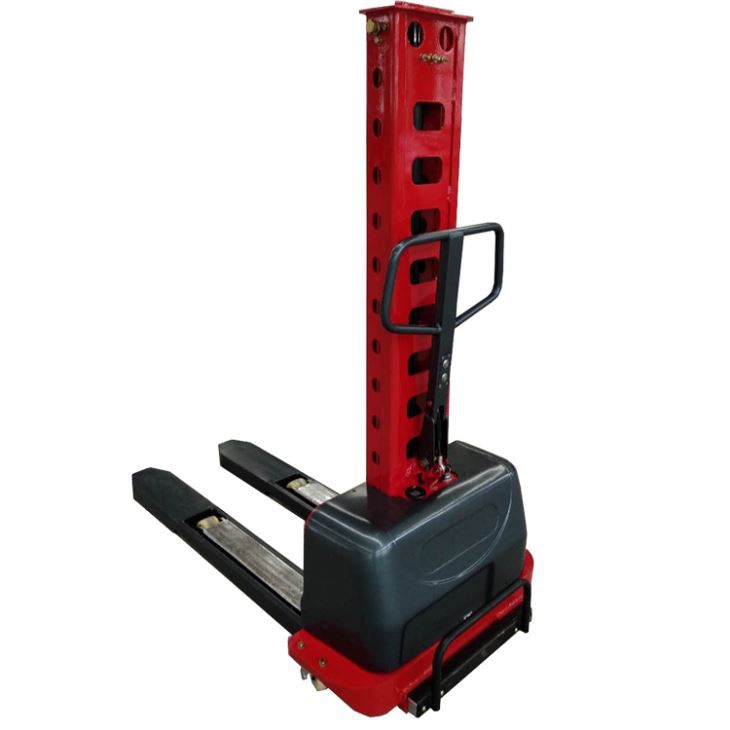

self loading pallet truck

1.2

Power unit

Battery

1.3

Rated capacity

Q

kg

500

1.4

Load center

c

mm

400

1.5

Wheel base

L0

mm

758

1.6

Front track base

W1

mm

380

1.7

Rear track base

W2

mm

665

1.8

Operator type

Pedestrian/Standing

Tyres

2.1

Tyre type(Front/Rear)

Nylon

2.2

Balance/Load wheels

2/2

2.3

Load wheel size

mm

Φ70×60

2.4

Balance wheel size

mm

φ100×45

Demension

3.1

Lowered Fork height

H2

mm

85

3.2

Max.lifting height

H

mm

1200

3.3

Max.fork width

W3

mm

535

3.4

Fork length

L2

mm

1150

3.5

Fork width×Fork thickness

B

mm

155×60

3.6

Overall length

L1

mm

1570

3.7

Total width

W

mm

786

3.8

Overall height(Mast closed)

H1

mm

1597

3.9

Overall height(Fork lowering)

H3

mm

1618

4.0

Min.turning radius

Wa

mm

1100

Performance

4.1

Lifting speed

mm/s

55

4.2

Lowering speed

mm/s

70

4.3

Lifting motor power

kW

DC0.8

4.4

Battery voltage

V

12

4.5

Battery capacity

Ah

45

Weight

5.1

Battery weight

kg

13.5

5.2

Operating weight(with battery)

kg

245
