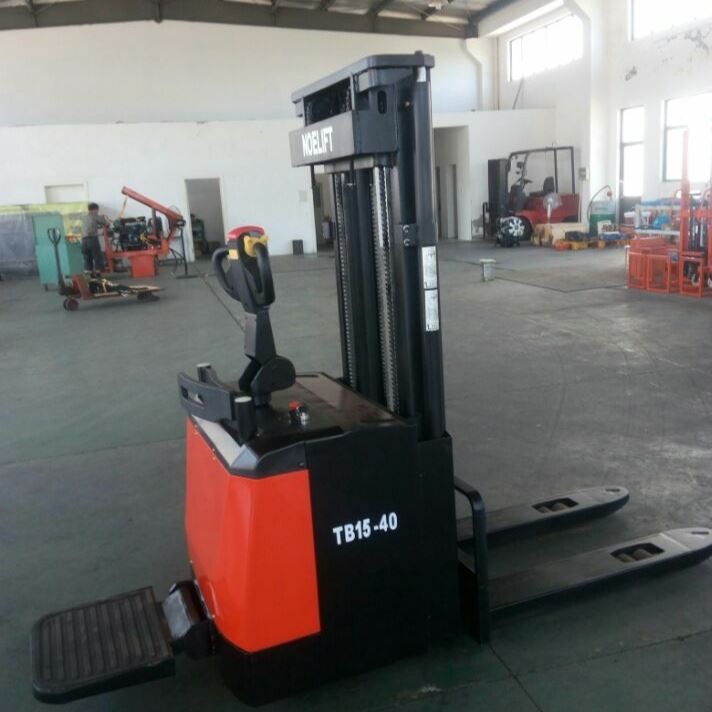

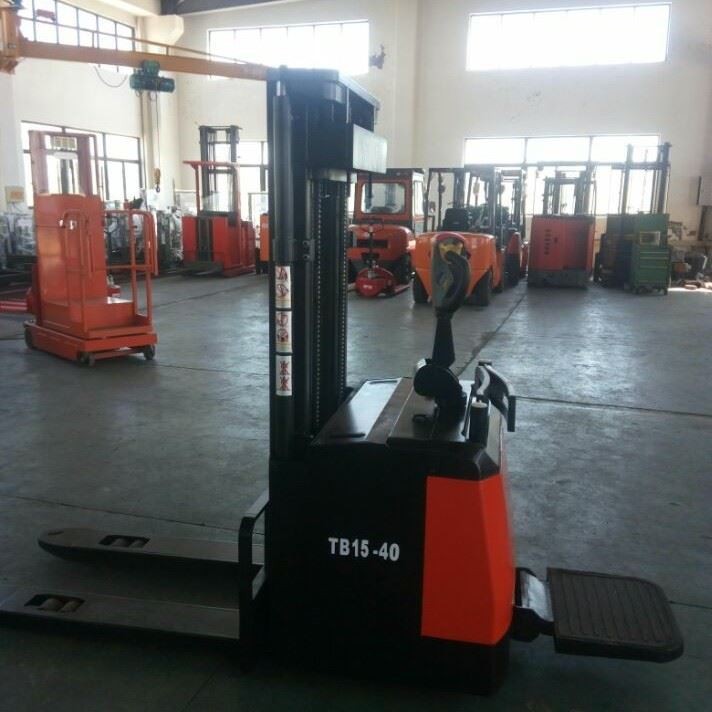

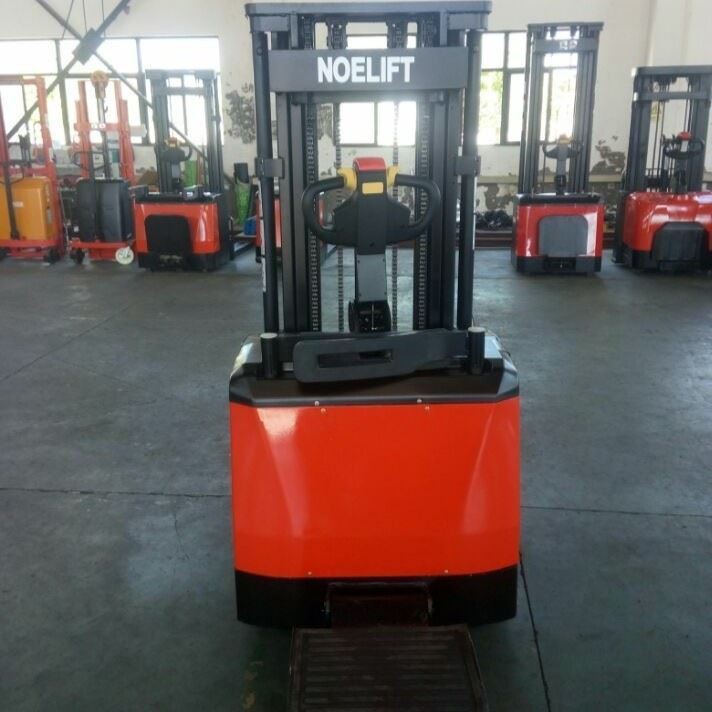

Flat Ground or Container Operation Electric Pallet Stacker

ELECTRIC STACKER TRUCK, WAREHOUSE FORKLIFT FEATURE 24V

1.Speed Limited for high position,to aviod the possibility of products' overturning when high speed in high position;

2.Curve safe control,the forklift will reduce the speed automatic when turning, to aviod the ejection of operator and products from the vehicle by the high speed;

3.Regenerative braking function to reduce the operation cost;

4.Safe cutoff valve,to protect the operator and goods in well condition;

5.Shock Absorption of Pedal,to ensure the comfortable of working and reduce the fatigue.

Description	Electric pallet stacker
Model	TB10	TB10	TB10	TB10	TB15	TB15	TB20
	-16	-25	-30	-35	-25	-30	-16
Load capacity Kg	1000	1000	1000	1000	1500	1500	2000
Load center mm	500	500	500	500	500	500	500
Max. lifting height mm	1600	2500	3000	3500	2500	3000	1600
Wheel type	Polyurethane solid tire
Pedal length mm	500	500	500	500	500	500	500

Fork size(LxW)mm	1150*190
Width of forks(aptotic) mm	680	680	680	680	680	680	680
Overall length mm	2023	2023	2023	2023	2023	2023	2023
Overall width mm	850	850	850	850	850	850	850
Overall height(mast closed)mm	2080	1795	2045	2295	1795	2040	2080
Overall height fork raised mm	2080	2970	3410	3910	2970	3220	2080
Outside turning radius mm	1720	1720	1720	1720	1720	1720	1720
Front wheel to fork tip mm	330	330	330	330	330	330	330
Min. intersecting aisle	2450	2450	2450	2450	2450	2450	2450
Max. walking speeds Km/h	4.0/5.8				4.0/5.8
Grade abitity %	8	8	8	8	8	8	8
Total weight( with battery) Kg	~880	~935	~950	~975	~940	~950	~905

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

1. One-stop solutions offer

2. OEM services offer

3. 24 hours non stop service offer

4. Track the products for you once every two days, until you get the products.

5. During warrarnty, spare parts delivery within one week for free.

NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
