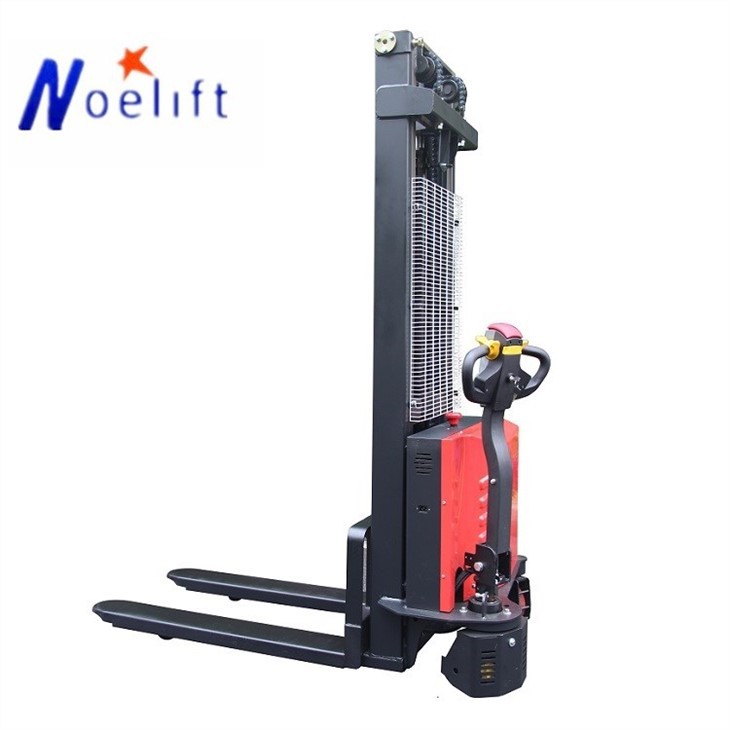

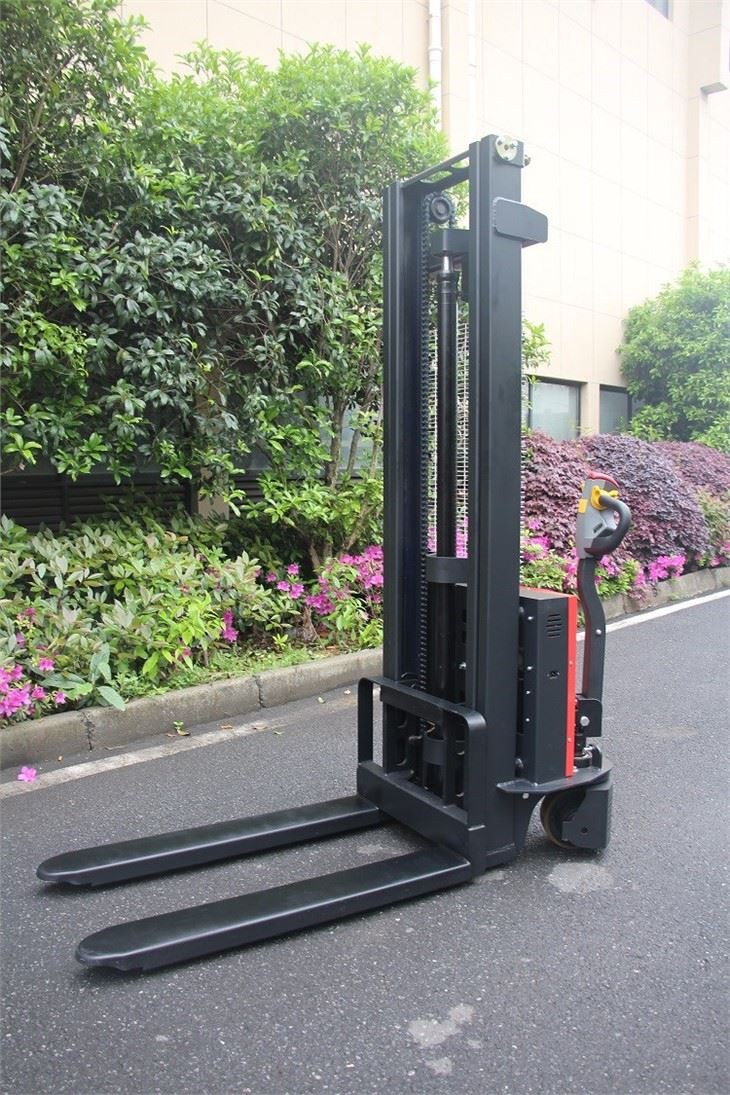

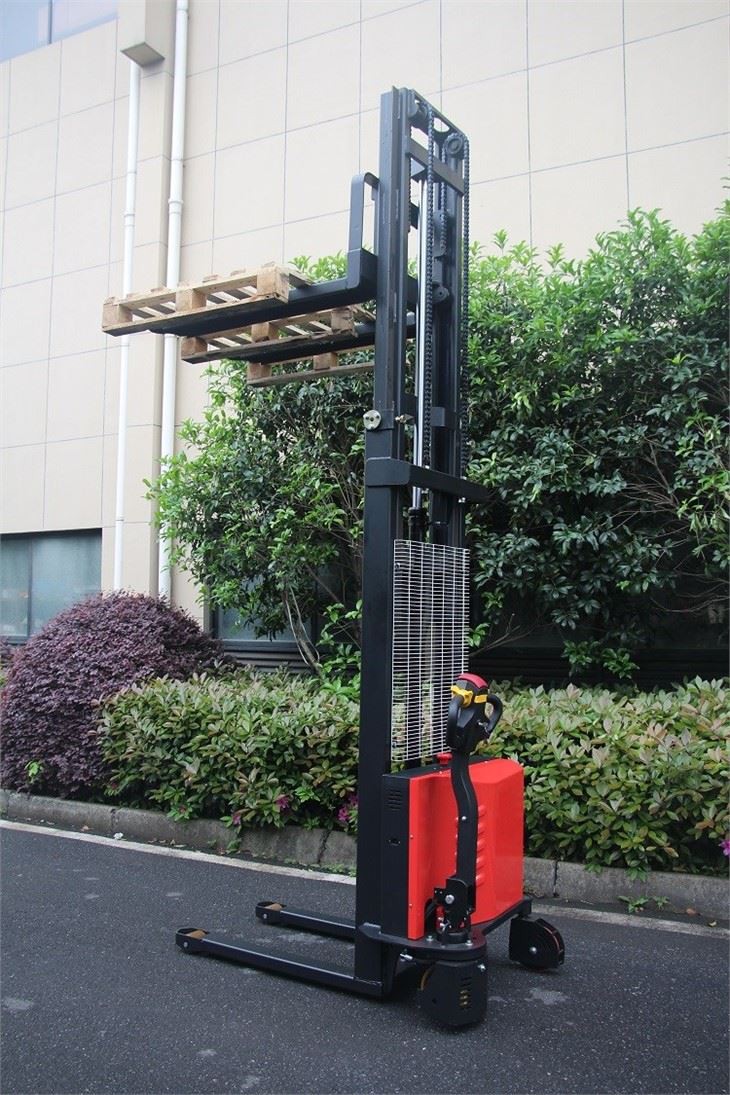

Economic Electric Stacker 1.0 Ton 1.5 Ton Easy Use

1. Compact body of 570kg light weight; it allows to work more portable for confined space.



2. Free maintenanced 24V/75ah big capacity battery for 1500kg loading/lifting.



3. Curtis controller for stable and efficiency operating system.



4. Arched handle is more ergonomic for anti-fatique.



5. Rollers-covered fork particularly be used in cold storage of meats, liquids.



6. Big drive wheel is separatly protected and easy to change.

	Description	Electric Stacker
1	Model	ES10-30
2	Loading Capacity	1000kg
3	Power type	Battery
4	Load center	500mm
5	Operation type	Walkie
6	Wheelbase	1255mm
7	Service weight(incl battery)	480kg
8	Load wheel	PU,Φ100
9	Drive wheel	PU, Φ210
10	Number of wheels	2/1x+2
11	Height of mast, extended	3516mm
12	Mast closed height	2050mm
13	Lift height	3000mm
14	Handle height	1100/1390mm
15	Outside turning radius	1405mm
16	Overall length	1670mm
17	Min. height of fork	70mm
18	Overall width	800mm
19	Driving speed(Unload/Load)	3.0km/h/ 2.5km/h
20	Lifting speed(Unload/load)	100/112 mm/s
21	Fork size	1070*100*35mm
22	Brake type	Electromagnetic
23	Lifting motor	2.2Kw (DC)
24	Driving motor	0.65Kw(AC)
25	Battery	24V/75Ah
26	Controller	Curtis, USA

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

1. One-stop solutions offer

2. OEM services offer

3. 24 hours non stop service offer

4. Track the products for you once every two days, until you get the products.

5. During warrarnty, spare parts delivery within one week for free.

NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!





Hot Tags: economic electric stacker 1.0 ton 1.5 ton easy use, China economic electric stacker 1.0 ton 1.5 ton easy use manufacturers
