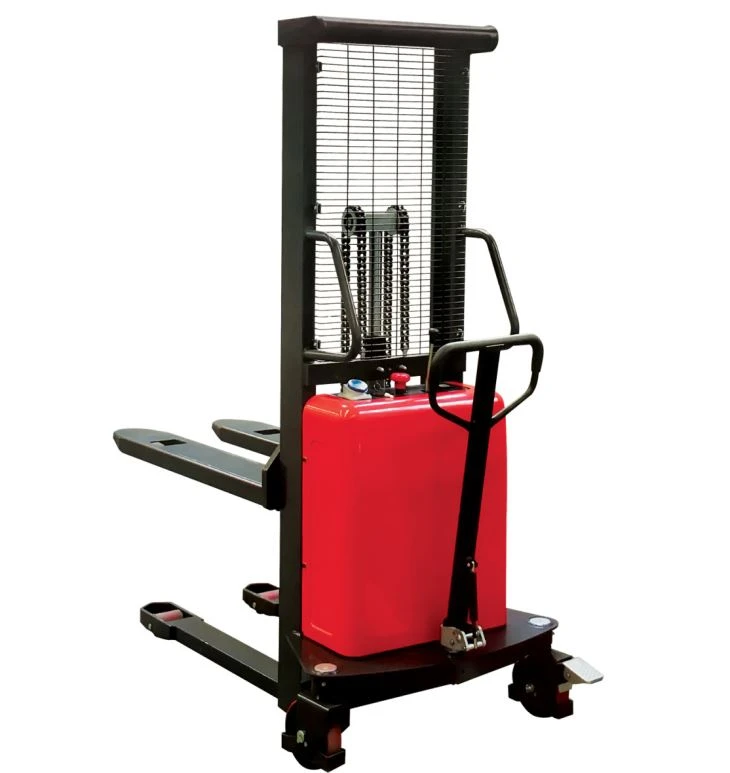

1ton 1.5ton 2ton Semi Electric Pallet Stacker
Electric stacker, lightweight electric stacker,
rated loading capacity 1ton 1.2ton 1.5ton,
max. lifting height 1.6m to 3.5m,
Forks width 560mm or 680mm,
Forks length 1150mm,
Battery 24V, with charger
Packing: by pallet
Warranty period: 1 year
Delivery term: 25 days
Send Inquiry
Product Introduction
Cheap Small half auto Electric Pallet stacker 1000kg 1500kg 2000kg
Semi Electric Pallet Stacker,
Lift by motor and drive by hand push.
DC motors, battery 12V/120Ah, with charger.
Rated loading capacity 1ton 1.5ton and 2ton.
1ton and 1.5ton max. lifting height do 3.5m;
2Tton max. lifting height do 2m.
Forks 1) adjustable 330mm-740mm
2) fixed type, width 560mm or 680mm
Legs 1) fixed legs 2) adjustable legs.

Semi electric stacker specification:
| 1 | Model | DYC1530 | ||
| 2 | Operation type | Walike | ||
| 3 | Power Type | SEMI-ELECTRIC | ||
| 4 | Rated Capacity | kg | 1500 | |
| 5 | Load Centre | mm | 400 | |
| 6 | * Lift Height | mm | 3000 | |
| 7 | Mast type | duplex masts | ||
| 8 | Wheel type | Nylon | ||
| 9 | * Fork Size | L×T | mm | 1150x160 |
| 10 | overall forks width | mm | 540 | |
| 11 | Overall Dimension | *overall leg width | mm | 490 |
| 12 | Overall length | mm | 1660 | |
| 13 | Overall Width | mm | 800 | |
| 14 | Mast Lowered height | mm | 2330 | |
| 15 | Mast extended height | mm | 4060 | |
| 16 | Service weight | kg | 470 | |
| 18 | battery | V/Ah | 12/150 | |
| 19 | Charger | with | ||
| 1 | Model | ES15M | |
| 2 | Operation type | Walkie | |
| 3 | Power Type | ELECTRIC | |
| 4 | Rated Capacity | kg | 1500 |
| 5 | Load Centre | mm | 500 |
| 6 | * Lift Height | mm | 3000 duplex masts |
| 7 | Wheel type | PU | |
| 8 | Wheelbase | mm | 1208 |
| 9 | Fork size L×WxT | mm | 1150x160x50 |
| 10 | Forks overall width | mm | 560(EU type) |
| 11 | Overall length | mm | 1716 |
| 12 | Overall Width | mm | 800 |
| 13 | Mast Lowered height | mm | 2025 |
| 14 | Mast extended height | mm | 3505 |
| 15 | Min. aisle width for pallets | mm | 2150 |
| 16 | Outer Turning Radius | mm | 1378 |
| 17 | Max. Gradeability | % | 3/10 |
| 18 | Service weight | kg | 690 |
| 19 | Controller | PG | |
| 20 | lifting motor | kw | 2.2 DC |
| 21 | drive motor | kw | 1.5 AC |
| 22 | battery | V/Ah | 24/120 |
| 23 | Charger | external type | |
| 24 | Parking brake | Electromagnetic |
