1Ton 3m Electric Order Picker
Rated Load Capacity: 1,000 kg (1.0 Ton total load capacity)
Max Platform Lift Height: 6,000 mm (6.0 Meters)
Working Picking Max Height: Approx. 7.6M
Core Application: High-density rack case picking, e-commerce order fulfillment, and spare parts handling
Drive & Control System: Full electric drive with precision CURTIS AC/DC controller and Electric Power Steering (EPS)

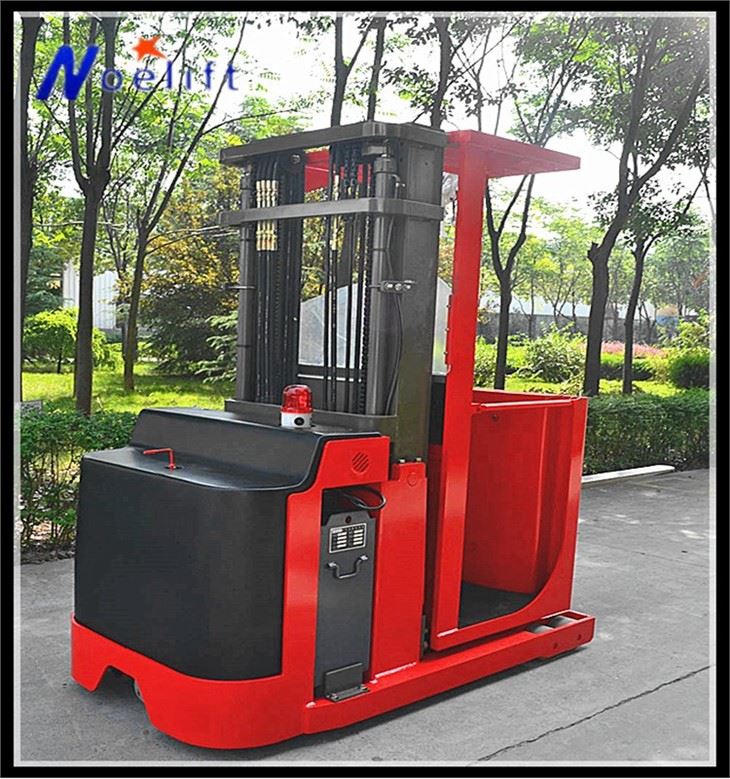

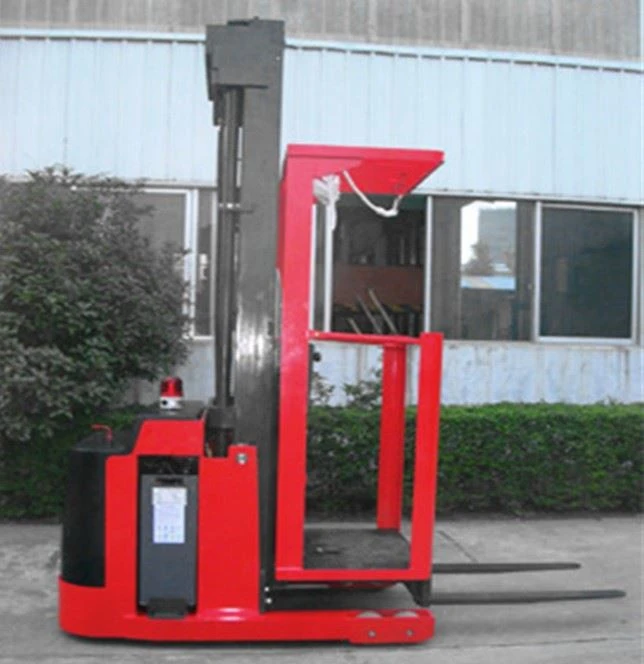

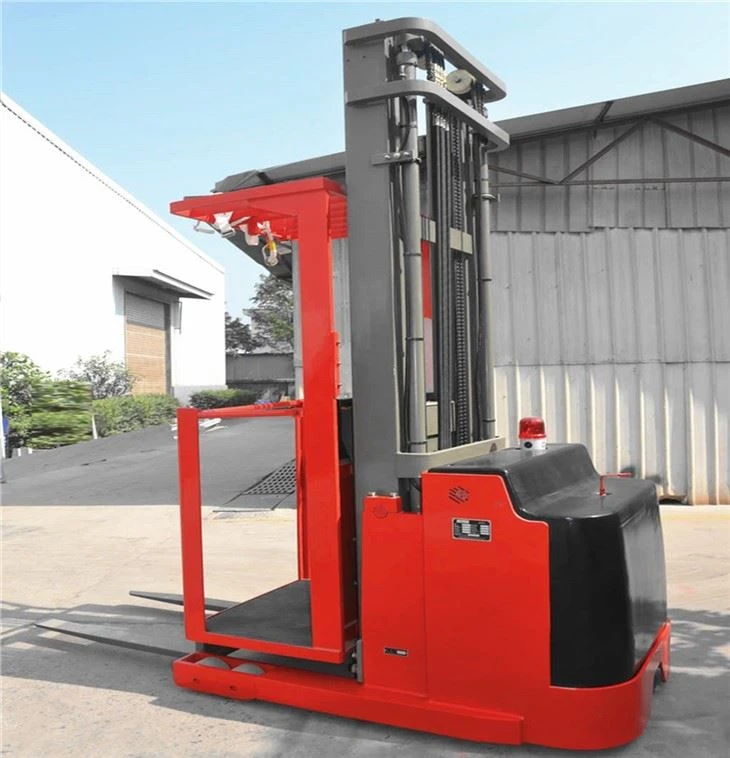

Noelift 1 Ton 3m Electric Order Picker (High-Level Order Picking Truck)
The Noelift Electric Order Picker is designed to maximize picking efficiency and safety in high-density warehousing and narrow aisle environments. Built for split-case picking, piece selection, and part fulfillment, it elevates both the operator and the order platform up to 6.0 meters (achieving a working picking height of up to 6.0 – 7.6 meters). Powered by an advanced electric drive system and imported CURTIS controller, this order picker ensures smooth travel, precise elevation, and effortless maneuvering in tight warehouse spaces.
Key Features & Advantages

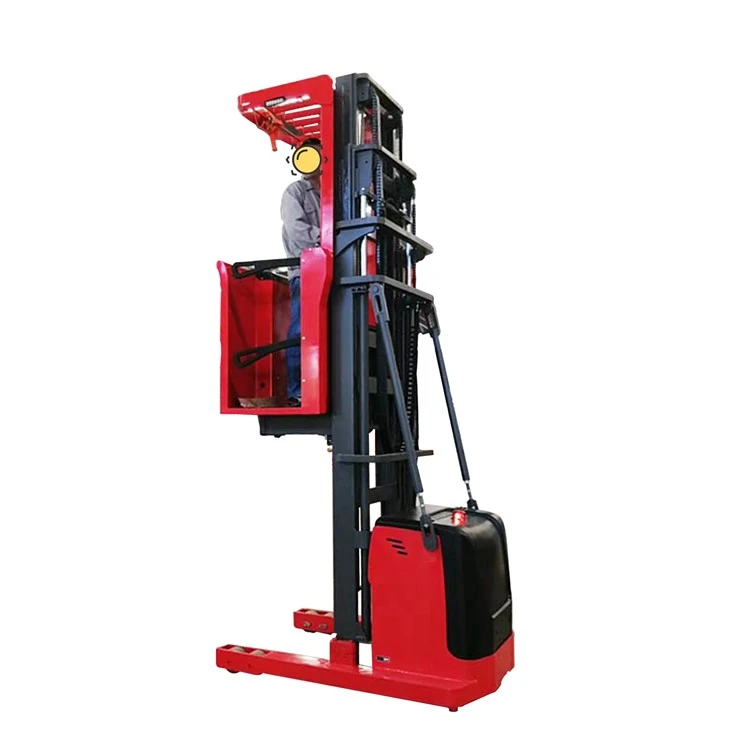

Person-Up Operation for Efficient Split-Case Picking
Elevates the operator directly to the shelf height, allowing safe and quick manual selection of individual items, cartons, or components without extra ladders or scaffolding
Narrow Aisle Maneuverability & EPS Steering
Featuring a compact turning radius and Electric Power Steering (EPS), operators can effortlessly navigate tight storage aisles and turn in extremely confined warehouse layouts
Comprehensive Safety Protection at Height
Equipped with safety interlocking guardrails, anti-falling safety harness attachments, automatic speed reduction at elevated heights, and an emergency lowering valve in case of power failure
Ergonomic Cabin & Intuitive Controls
Designed with a cushioned floor mat to reduce operator standing fatigue, intuitive multi-function control joystick, clear battery status indicator, and spacious tray storage for picked goods
Specifiction parameters
|
Model |
|
THA10 |
|
Power Type |
|
Battery |
|
Operation Type |
|
Stand on |
|
Load Capacity |
Q(kg) |
1000kg |
|
Service Weight(incl. battery) |
kg |
2800 |
|
Max. Lifting Height |
mm |
6000 |
|
Auxiliary Lifting |
mm |
700 |
|
Max. Picking Height |
mm |
7600 |
|
Travelling Speed, load/unload |
km/h |
6/6.3 |
|
Lift Speed, load/unload |
mm/s |
115/140 |
|
Lowering Speed, laden/unladen |
mm/s |
165/125 |
Target Applications & Industries
E-Commerce & Retail Logistics
Rapid piece-picking and order fulfillment in high-density shelving
Auto Parts & Hardware Warehouses
Retrieving small-to-medium components from multi-tier racks
Pharmaceutical & Cosmetics Storage
Clean, zero-emission indoor operation for sensitive inventory.
Supermarket Distribution Centers
Restocking and selecting packaged goods for retail store supply
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
