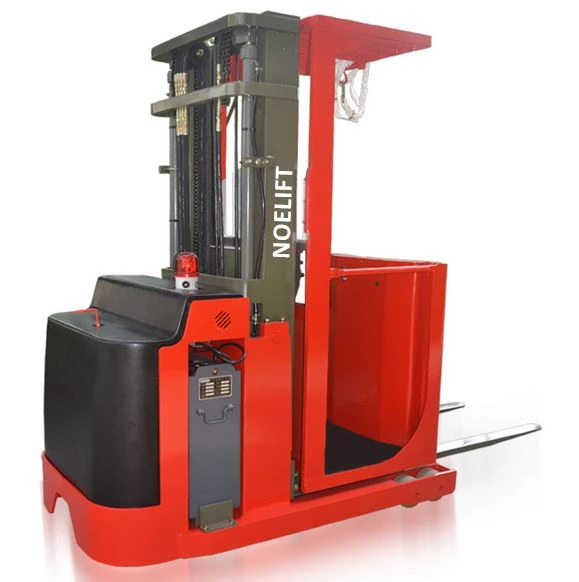

Full Electric Order Picker Truck Medium Position Forklift
Optional lift height: 3000-4500mm.
Order picker Specifications
A picker is a device used to help operators comfortably reach high-level shelves in warehouses or distribution centers, especially for handling high-level order picking tasks. Noelift's picker can rise to a height of 390 inches, which can easily cope with the needs of operations above the second-level shelves, greatly improving the efficiency and safety of operators when picking at high levels. This electric order picker is widely used in warehouses, especially for those occasions where frequent picking tasks need to be performed at heights.
The design of the picker enables it to flexibly shuttle between narrow aisles in the warehouse and reduce collisions with shelves when picking boxes. Its compact structure and excellent maneuverability enable it to be easily manipulated in space-constrained environments, avoiding damage to shelves and equipment, and ensuring that goods remain safe during picking and moving. When the operator stands on the lifting platform, he can easily reach the goods at high altitudes without the help of ladders or other equipment, thereby reducing the risks of traditional manual operations.
In addition, Noelift's order picker also has good stability and flexibility, making operators more comfortable and confident when working at heights. Its electric lifting system ensures the smooth lifting of the platform, is easy to operate, reduces reliance on physical strength, and is suitable for long-term, high-intensity use.
Cherry picker forklift are indispensable equipment in modern warehouse management. They not only improve the speed and efficiency of goods picking, but also perform well in narrow spaces, helping companies optimize the utilization of warehouse space and reduce operational difficulty and risk.
Future:
1. Loaded Capacity: 1000kg. Optional lift height: 3000-4500mm.
2. Environment-Friendly: Low noise and non-pollution electricity enegy adopted ensure Noelift electric order picker Environment-Friendly.
3. Reliability:
3.1:American imported CURTIS controller, quick reaction, strong ability of accerleration and deceleration control, ensure equipment longer service life.
3.2: EPS technology adopted(Electric steering system), more convenient and easy to operate.
3.3: Bruthless AC driving motor, ensure 30% energy saving, lower maintenance cost.
3.4: Mast buffer function can lower noise from impact of buffer mast's junction points during lifting operation.Chain of anti-fracture.
3.5: Equipped personnel safety protection rope to ensure operator's safety.
4. Strict Quality Inspection System: ISO9001-2008, CE approved.






Specifiction parameters
| Standard标准 | ||||
| 1.1 | Manufacturer | NOELIFT | NOELIFT | |
| 1.2 | Model | THA1030 | THA1060S | |
| 1.3 | Power Type | Battery | Battery | |
| 1.4 | Operation Type | Stand on | Stand on | |
| 1.5 | Rated Capacity | Q(kg) | 1000 | 1000 |
| 1.6 | Load Center | C(mm) | 500 | 500 |
| 1.8 | Front Overhand | x(mm) | 148 | 160 |
| 1.9 | Wheelbase | y(mm) | 1410 | 1410 |
| Weight重量 | ||||
| 2.1 | Service Weight(incl.battery) | kg | 2490 | 2830 |
| 2.2 | Weight distribution when loaded,drive side/load side | kg | 940/2550 | 1130/2700 |
| 2.3 | Weight distribution when unloaded,drive side/load side | kg | 1410/1080 | 1610/1220 |
| Wheel车轮 | ||||
| 3.1 | Wheel Types | PU | PU | |
| 3.2 | Load Wheel | mm | φ150×90 | φ150×90 |
| 3.3 | Drive wheel | mm | φ254×100 | φ254×100 |
| 3.4 | Balance wheel | mm | / | / |
| 3.5 | Number of wheels,,front/rear(x=drive wheel) | 4/1X | 4/1X | |
| 3.6 | Wheel tread,drive side | b10(mm) | / | / |
| 3.7 | Wheel tread,load side | b11(mm) | 1008 | 1008 |
| Size尺寸 | ||||
| 4.2 | Mast closed height | h1(mm) | 2300 | 2815 |
| 4.4 | Lift height | h3(mm) | 2760 | 5760 |
| Max lift height of fork | h25(mm) | 3530 | 6530 | |
| 4.5 | Mast extended height | h4(mm) | 5010 | 7955 |
| 4.7 | Overhead guard height | h6(mm) | 2250 | 2250 |
| 4.8 | Platform min.ground clearance | h7(mm) | 240 | 240 |
| 4.11 | Auxiliary lift height | h9(mm) | 700 | 700 |
| 4.14 | Platform max.ground clearance | h12(mm) | 3000 | 6000 |
| 4.14.1 | Picking height(h12+1600mm) | h28(mm) | 4600 | 7600 |
| 4.15 | Fork face min.ground clearance | h13(mm) | 70 | 70 |
| 4.19 | Overall length | l1(mm) | 2825 | 2835 |
| 4.20 | Length to forkface | l2(mm) | 1755 | 1765 |
| 4.21 | Overall width | b1/b2(mm) | 1150 | 1150 |
| 4.22 | Fork size | l/e/s(mm) | 1070/100/40 | 1070/100/40 |
| 4.25 | Fork outside width | b5(mm) | 700 | 700 |
| 4.31 | Mast ground clearance | m1(mm) | 50 | 50 |
| 4.32 | Body ground clearance | m2(mm) | 50 | 50 |
| 4.33 | Aisle width for pallet 1000*1200 | Ast(mm) | 3120 | 3130 |
| 4.34 | Aisle width for pallet 800*1200 | Ast(mm) | 3230 | 3245 |
| 4.35 | Turning radius | Wa(mm) | 1625 | 1625 |
