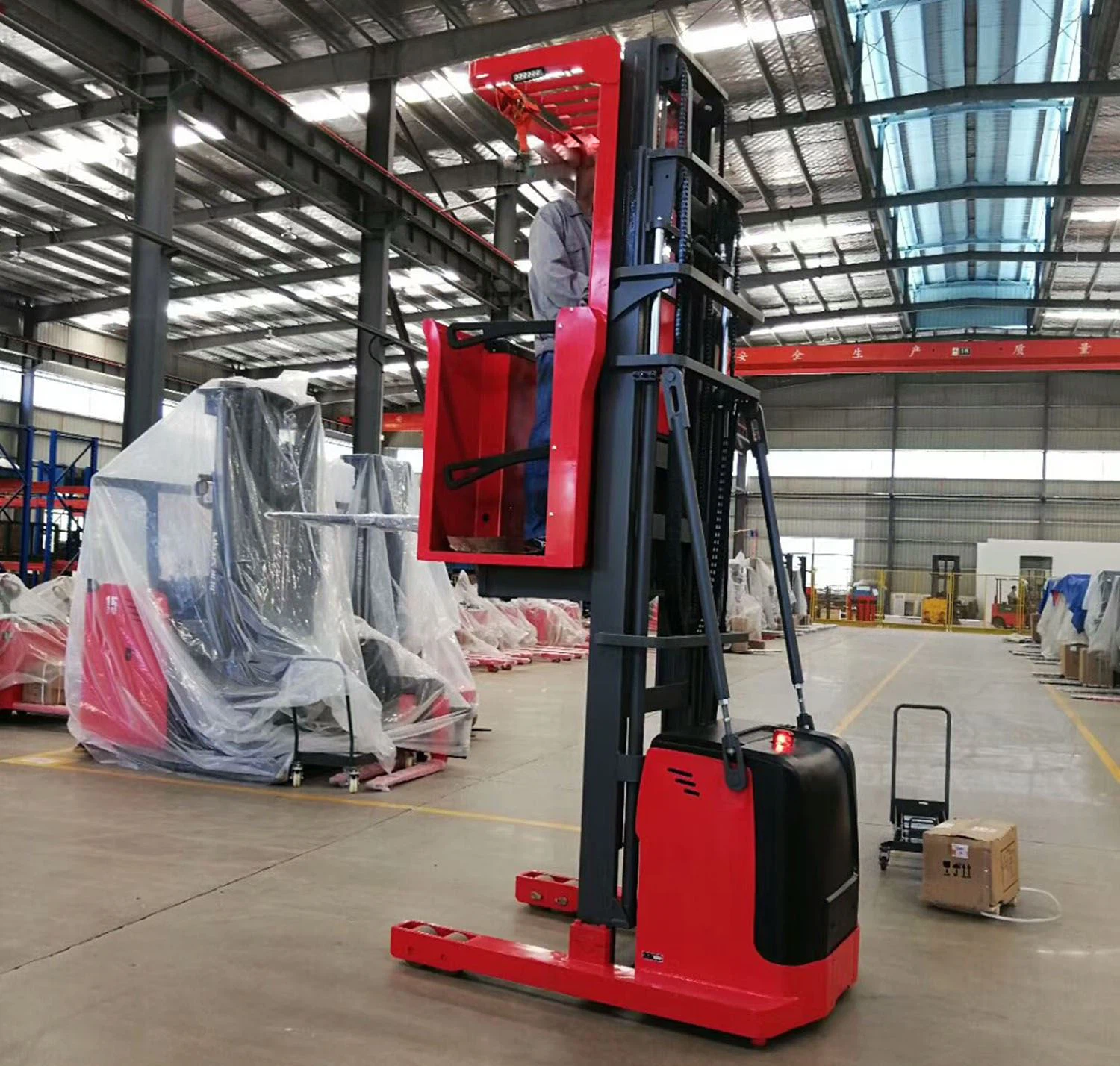

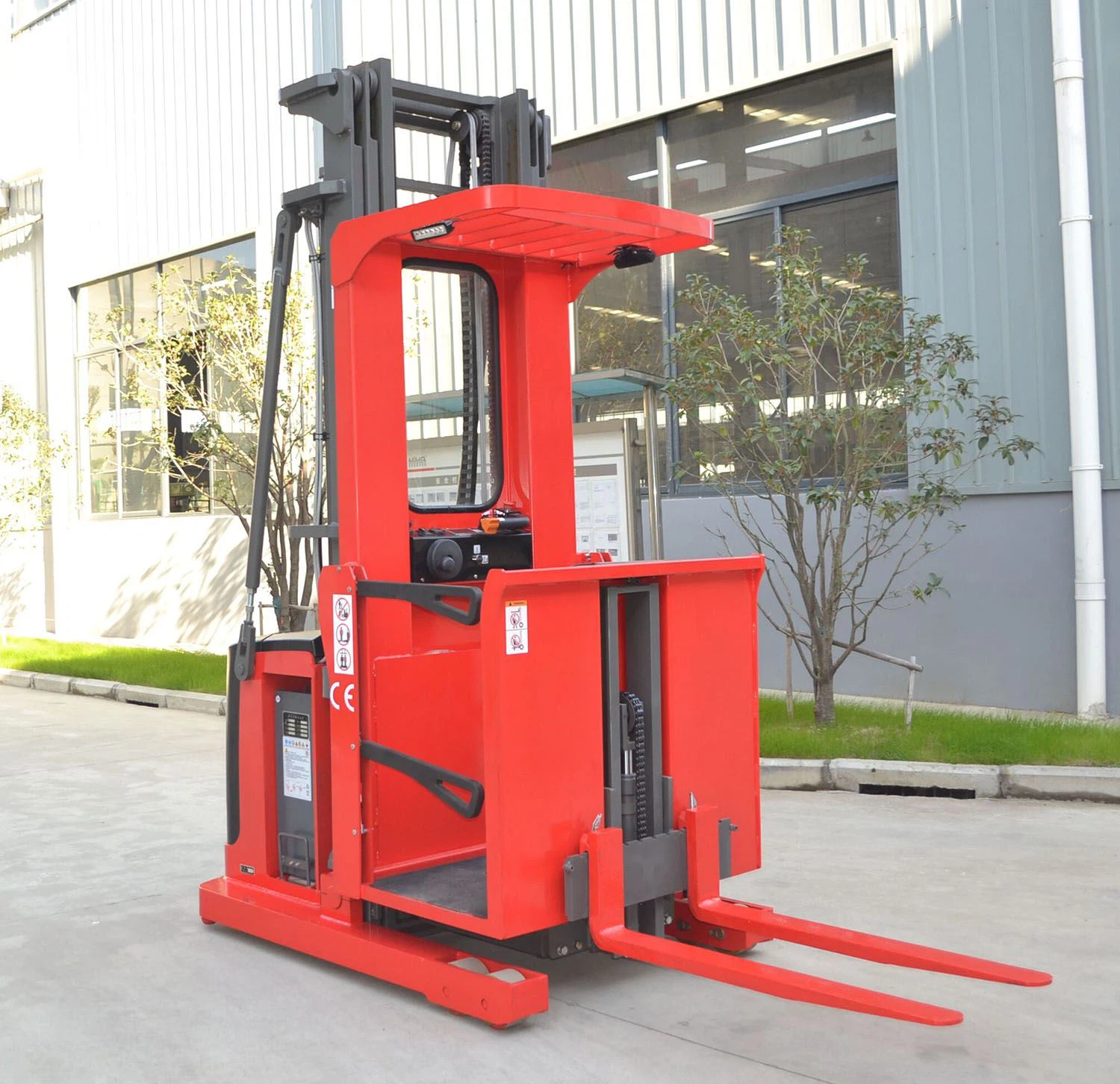

1000KG HIGH-LEVEL VERTICAL ORDER-PICKER

Characteristics

• Options: vertical, high-level

• Working height: 1,500 mm, 4,550 mm (59.06 in) 6000mm

• Carrying capacity: 1,000 kg (2,200 lb)

Description

ERGONOMIC WORKSPACE FOR NARROW AISLES
The THA10 vertical order picker has been designed for order picking tasks at the first and second racking levels, as well as occasional working up to a height of 6 meters. The cab and all the control elements meet all the ergonomic requirements for effortless working. The truck is available with a walk-on loading platform or auxiliary lift. Various lift motors, and chassis, cab and mast variants can be configured in almost any combination. The equipment can, therefore, be adapted to individual requirements and achieve a high level of picking frequency performance. It can be used with mechanical or inductive guidance or be freely movable - in each case with a maximum load of 1000 kilograms.

CHARACTERISTICS

Safety
The driver must touch two hand sensors, as well as the dead man's switch to be able to move the truck. This prevents misuse or operating errors. With a platform height greater than 1.20 meters, the electrically monitored side barriers must be closed to be able to operate the truck. When the cab is raised and when negotiating corners, the truck slows down automatically. Depending on lift height and steering angle, the optional assistance system adjusts the speed automatically and completely variably.
•Three-point operation
•Automatic speed reduction on cornering and with cab raised
•Good view from large mast width
•Electrically monitored side cabinets

Ergonomics

Thanks to simple and ergonomic control, the driver can operate the tha10 precisely and effortlessly. The cab provides plenty of space for the picking procedure. It is spring-suspended and protects the operator from shock.
