Multi Direction Reach Truck
Rated Load Capacity: 2,000 kg – 3,500 kg (Customizable options available)
Lifting Height: 3,000 mm - 8,000 mm
Core Advantage: Lateral/side traveling mode for long profiles, pipes, and timber
Drive & Control System: Full AC Drive Motor with Imported CURTIS Controller
Steering: Electric Power Steering (EPS) with one-key directional switching

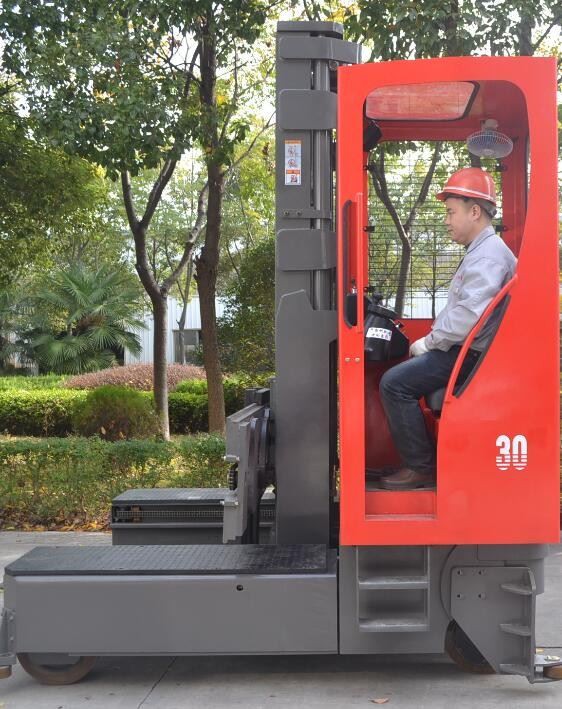

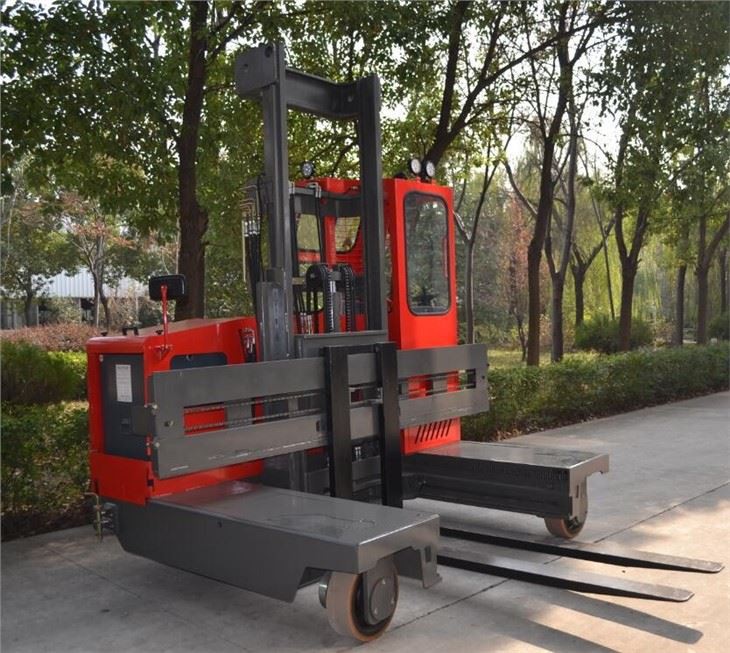

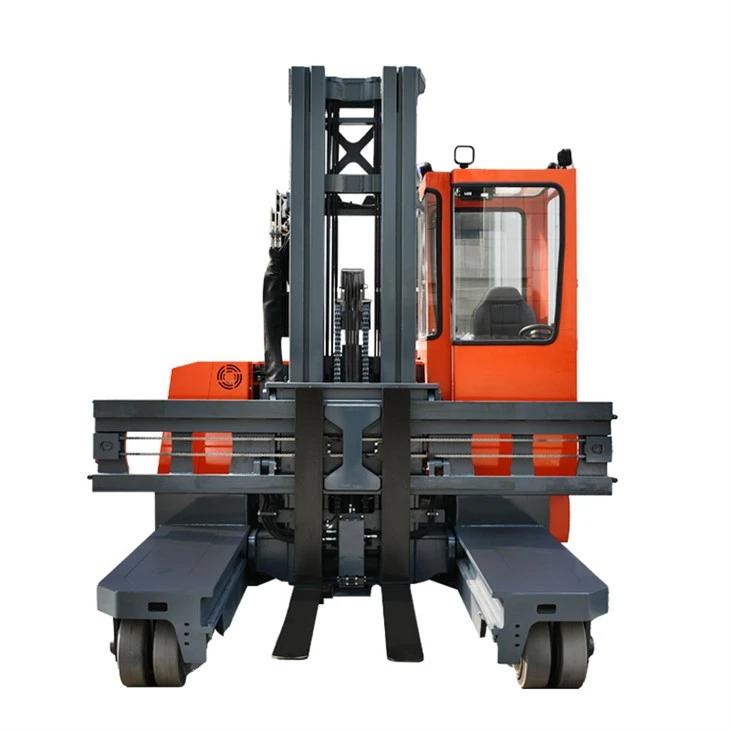

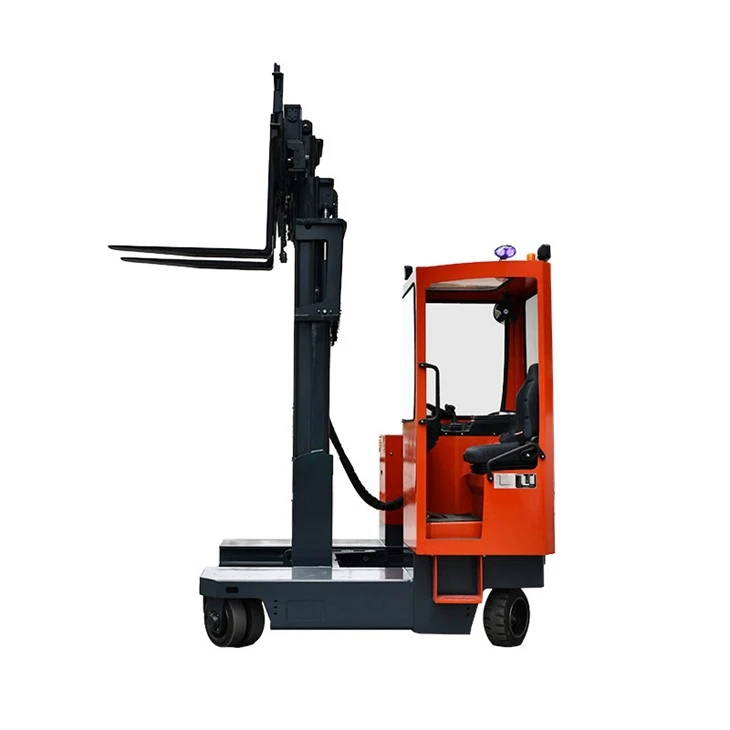

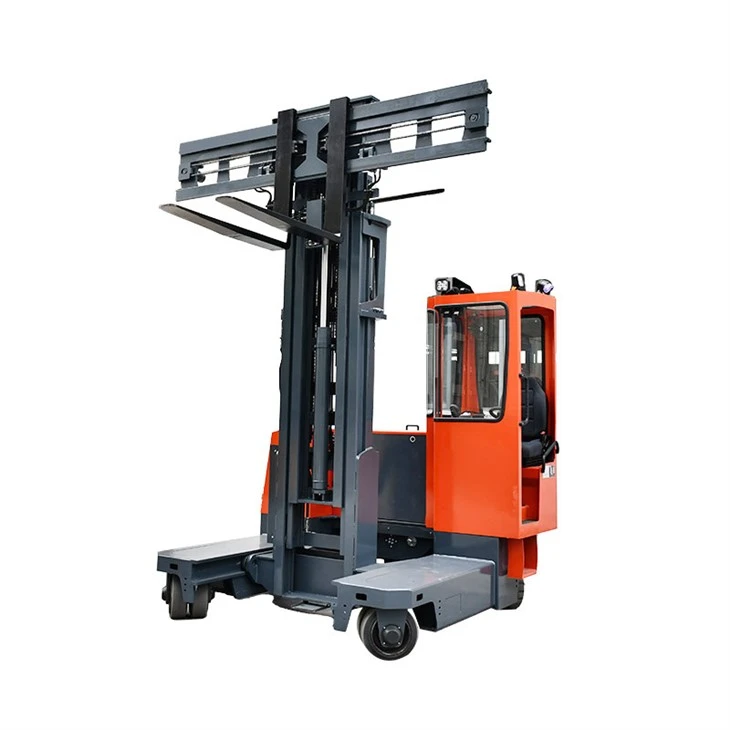

Noelift Multi-Directional Electric Reach Truck (4-Way Stacker)
The Noelift Multi-Directional Reach Truck is engineered specifically for the efficient handling and stacking of extra-long materials in very narrow aisles (VNA). Unlike standard reach trucks, it features multi-directional driving capabilities (forward, backward, and lateral sideways travel), allowing operators to transport long loads safely without turning the vehicle. This maximizes warehouse storage capacity by over 50%.
Key Features & Advantages
Provides clear visibility from all angles for safer and more comfortable operation.
Equipped with a wireless camera and high-definition video display, offering enhanced visibility for high-level stacking, improving operational safety and efficiency
Large-capacity lead-acid/lithium batteries provide ample power for impressive driving speeds, adaptability to various working conditions, and quick charging function.
Optional Lithium Battery
Specifiction parameters
|
Model |
|
TQC25 |
TQC30 |
|
Power type |
|
Battery |
Battery |
|
Driving type |
|
Seated |
Seated |
|
Load capacity |
Q(kg) |
2500 |
3000 |
|
Load center distance |
C(mm) |
600 |
600 |
|
Service weight (incl. battery) |
kg |
5385 |
5585 |
|
Fork tilt range: front/ rear |
α/β(°) |
2/4 |
2/4 |
|
Lift height |
h3(mm) |
6000 |
6000 |
|
Overall length |
l1(mm) |
2300 |
2300 |
|
Overall width |
b1/b2(mm) |
1850/2160 |
1850/2160 |
|
Fork dimensions |
l/e/s(mm) |
1070/125/45 |
1070/125/45 |
|
Fork outside spread |
b5(mm) |
550-2100 |
550-2100 |
|
Reach distance |
l4(mm) |
900 |
900 |
|
Travelling speed, laden/unladen |
km/h |
8.0-9.0 |
8.0-9.0 |
|
Battery voltage/nominal capacity |
V/Ah |
48/500 |
48/500 |
Applications & Suitable Industries

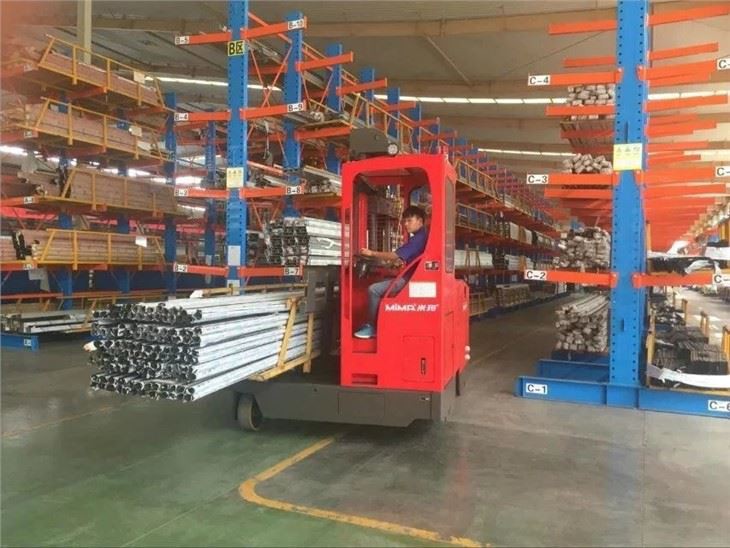

Steel & Metal Profiles
Transporting long pipes, tubes, channels, and structural steel
Lumber & Wood Processing
Handling long wooden boards, timber, and furniture panels
Building Materials
Storing PVC piping, plastic profiles, and aluminum extrusions
Products Certifications
F Q A
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
