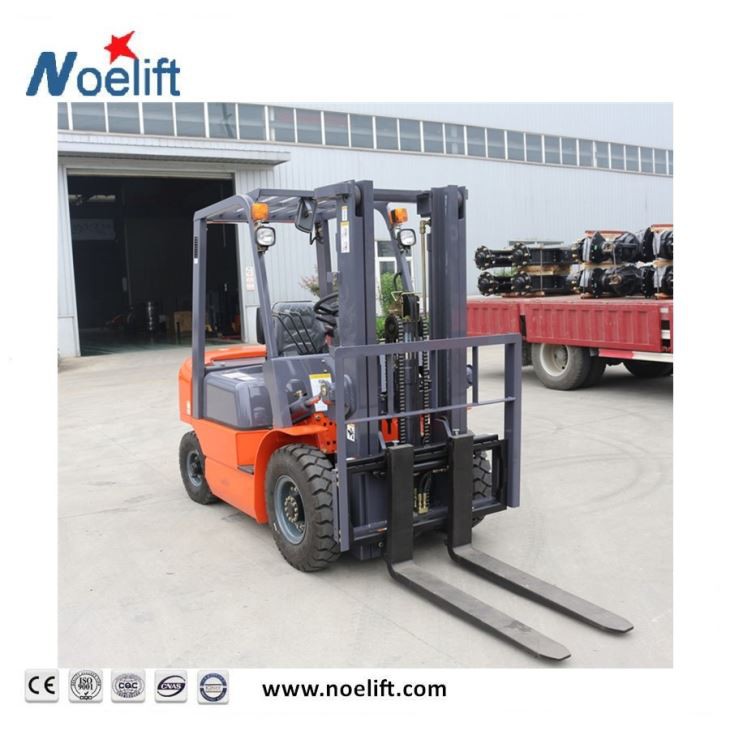

Four-wheel Drive Rough Terrain Diesel Forklift
capacity: 1500kg 1800kg 2000kg 2500kg 3000kg 3500kg 4000kg 5000kg 6000kg 7000kg 8000kg 10000kg
lift: 3000mm-6000mm
mast: 2 stages 3 maters
main configuration: xin chai engine，Electronic hydraulic shift, electronic flameout, warning light, armrest seat
Send Inquiry
Product Introduction
Products Description
1.Low noise and exhaust emissions make Noelift forklift environment friendliness.
2. Powerful engine with global warranty and parts service
3. Competitive price with high performance
4. Real warranty supplied by original manufacturer
5. The efficiency is improved.
Details Images
NOELIFT EQUIPMENT CO.,LTD
Certifications
diesel forklift from 1.5ton to 10ton
| Model | unit | FD15 | FD18 | FD20 | FD25 | FD30 | FD35 | FD40 | FD45 | FD50 | FD60 | FD70 | FD80 | FD100 |
| Power type | DIESEL | |||||||||||||
| Rated capacity | kg | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 5000 | 6000 | 7000 | 8000 | 10000 |
| Load center | mm | 500 | 600 | |||||||||||
| Operator type | Drive in seat | |||||||||||||
| Height of mast | mm | 1985 | 1985 | 2000 | 2000 | 2065 | 2180 | 2150 | 2330 | 2500 | 2500 | 2500 | 2500 | 2840 |
| Free lift height | mm | 125 | 125 | 170 | 170 | 160 | 170 | 150 | 140 | 205 | 205 | 205 | 205 | 100 |
| Overhead guard height | mm | 2070 | 2070 | 2070 | 2070 | 2090 | 2090 | 2105 | 2245 | 2450 | 2450 | 2450 | 2450 | 2560 |
| Wheelbase | mm | 1400 | 1400 | 1600 | 1600 | 1700 | 1700 | 1900 | 2100 | 2250 | 2250 | 2250 | 2250 | 2800 |
Min. turning radius (outside) | mm | 2060 | 2060 | 2170 | 2240 | 2400 | 2420 | 2700 | 2740 | 3250 | 3370 | 3370 | 3370 | 4080 |
| Fork size | mm | 920*100*35 | 920*100*40 | 1070*100*40 | 1070*125*45 | 1070*125*50 | 1070*130*50 | 1220*150*55 | 1220*150*55 | 1220*150*60 | 1220*150*70 | 1220*150*75 | 1220*175*80 | |
| Quantity of wheels | 2X/2 | 4X/2 | ||||||||||||
| Type of tyres | Penumatic | |||||||||||||
| Battery | v/ah | 12/80 | 24/2*80 | |||||||||||
