Manual Stacker Series SYC
It applies C type steel structure design , Lifting more stable and safe.
Send Inquiry
Product Introduction

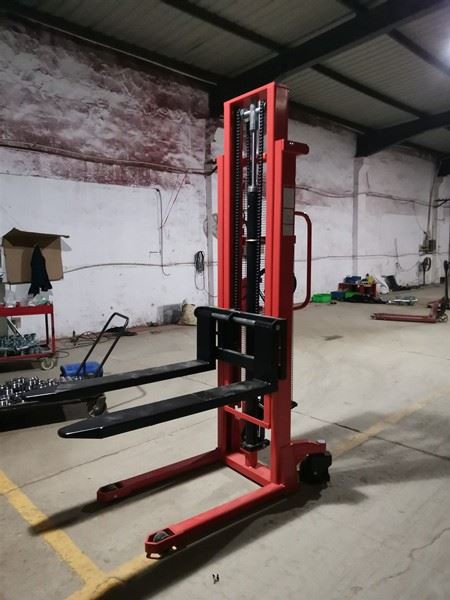

Manual stacker Series SYC
1.It applies C type steel structure design , Lifting more stable and safe.
2.AIll Manual stacker have been equipped with wheel frame protection device.
3.The handle have been surround with rubber.With lengthening design,Using more comfortable.
| Manufacturer | NOELIFT | NOELIFT | NOELIFT | |
| Model | SYC1020/1520/2020 | SYC1025/1525 | SYC1030/1530 | |
| Power type | Manual | Manual | Manual | |
| Rated load | kg | 1000/1500/2000 | 1000/1500 | 1000/1500 |
| Load center | mm | 500 | 500 | 500 |
| Service Weight | kg | 290 | 310 | 330 |
| Load wheel size | mm | Φ180*50 | Φ180*50 | Φ180*50 |
| Front wheel size | mm | Φ80*58 | Φ80*58 | Φ80*58 |
| Number of wheels,front/rear | 2/2 | 2/2 | 2/2 | |
| Max. Lift height | mm | 2000 | 2500 | 3000 |
| Minimum height of fork surface | mm | 85 | 85 | 85 |
| Overall dimension | mm | 1600*760*1580 | 1600*760*1840 | 1600*760*2080 |
| Fork Length | mm | 1150 | 1150 | 1150 |
| Fork width | mm | 330-740 | 330-740 | 330-740 |
| Leg width | mm | 690 | 690 | 690 |
| Mast type | Duplex mast | Duplex mast | Duplex mast |
