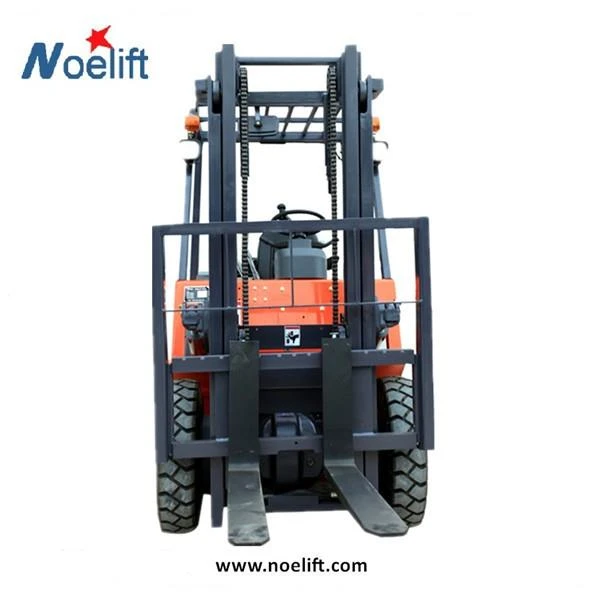

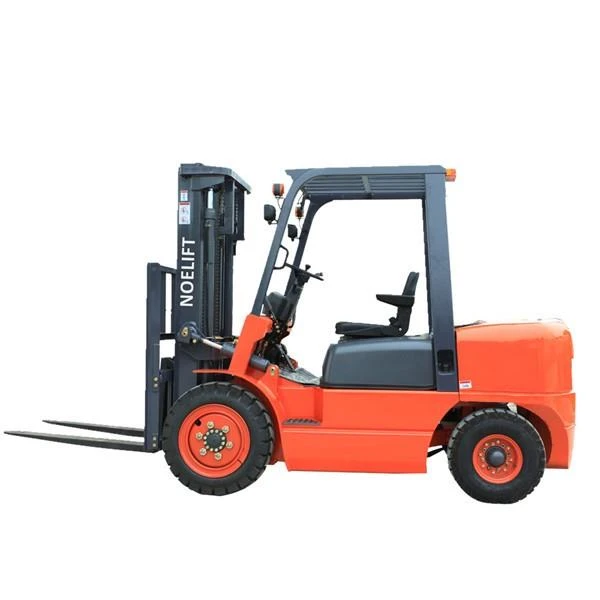

4t Diesel Forklift
--Adopt gradeability improving style electronic hydraulic transmission,
compare with other models:
efficiency 5% improved, climbing torque 8% increased, noise 3~5dB reduced, thermal equilibrium temperature 8-10°decreased;
Diesel Forklift Specifications
4.0T Diesel Forklift Truck, forklift trucks Feature
High quality
--Adopt gradeability improving style electronic hydraulic transmission,compare with other models:efficiency 5% improved,climbing torque 8% increased,noise 3~5dB reduced,thermal equilibrium temperature 8-10°decreased;
--The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle; -- Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve operation comfort.
High security
--Introducing advances technology from Germany,the unique single chain has greatly enhanced he front view while working.
--All car LED lights, high brightness, long life, energy saving and environmental protection.
High comfort
--The new suspension system,adjustable seat,allowing the driver to feel more comfortable and reducing fatigue during long operations;
--The combined color instrument has strong human-machine interaction and timely and accurately feedback the running state of vehicles.
--Spacious control space, comfortable seats, enjoy the pleasure of riding.
Rich options
ISUZU engine, high exhaust device, air prefilter, fireproof cap, solid tire, two stage free lift mast, three stage free lift mast , widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.




Optional Engine:

Specifiction parameters
| Model | Diesel 4.0T | ||||
| FD40 | |||||
| FD40 | |||||
| 1 | Power | Engine | Model | Isuzu 4JG2PE | |
| 2 | Rated Power | kw/r.p.m | 44.9/2450 | ||
| 3 | Rated Torque | Nm/r.p.m | 184.7/1700 | ||
| 4 | Bore×Stroke | mm | 95.4x107 | ||
| 5 | Cylinder Amount | 4 | |||
| 6 | Displacement | L | 3.059 | ||
| 7 | Gears | 1/1 Power Shift | |||
| 8 | Working Pressure | Mpa | 17.5 | ||
| 9 | Battery | Voltage | V/Ah | 12/90 | |
| 10 | Features | Rated Load | kg | 4000 | |
| 11 | Lifting Height | mm | 3000 | ||
| 13 | Free Lifting Height | mm | 85 | ||
| 12 | Load Center | mm | 500 | ||
| 14 | Fork Size | Long×Wide×Thick | mm | 1070x125x50 | |
| 15 | Mast Dip Angle | Front/Rear | . | 6/12 | |
| 16 | Minimum Turning Radius | mm | 2700 | ||
| 17 | Minimum Stacking Right Angle Aisle Width | mm | 4400 | ||
| 18 | Minimum Right Angle Aisle Width | mm | 2685 | ||
| 19 | Minimum Ground Clearance | mm | 120 | ||
| 20 | Front Overhang | mm | 500 | ||
| 21 | Performance | Max.Travelling Speed | Full load | km/h | 18.5 |
| 22 | Max. Lifting Speed | Full load | mm/s | 410 | |
| 23 | Max. Traction | Full load | KW | 20 | |
| 24 | Max. Gradeability | % | 20 | ||
| 25 | Max. Fork Lifting height | With Load Backrest | mm | 4270 | |
| 26 | Dimension | Overall Length | Without Fork | mm | 2930 |
| 27 | Overall Width | mm | 1410 | ||
| 28 | Overhead Guard Height | mm | 2090 | ||
| 29 | Mast Landing Height | mm | 2155 | ||
| 30 | Chassis | Tire | Front | 250-15-160PR | |
| 31 | Rear | 6.50-10-10PR | |||
| 32 | Wheel Base | mm | 1900 | ||
| 33 | Wheel Tread | Front/Rear | mm | 1160/1065 | |
| 34 | Fuel Tank Volume | L | 80 | ||
| 35 | Curb Weight | No-load | Kg | 5300 | |
