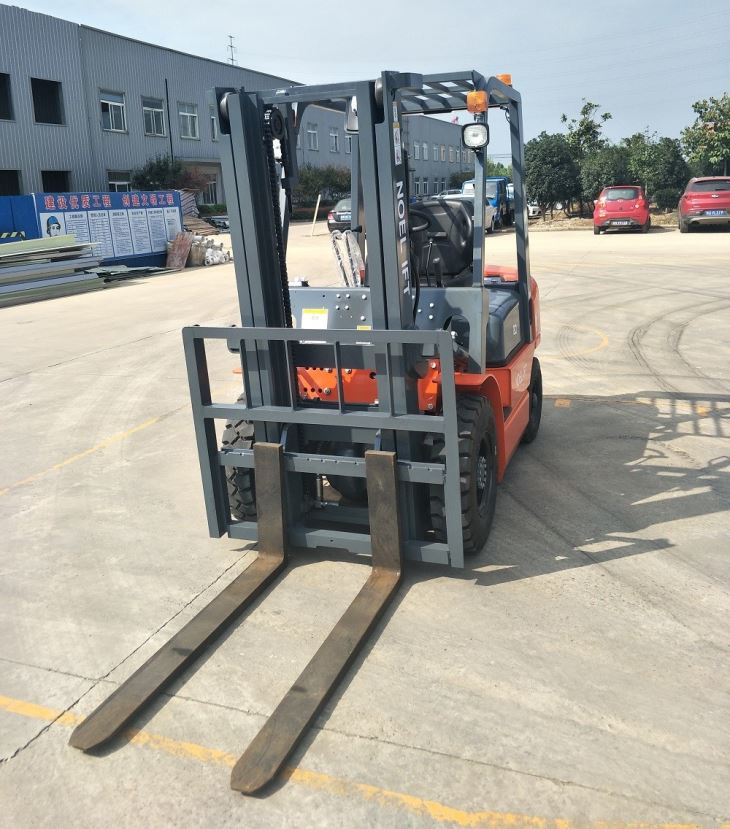

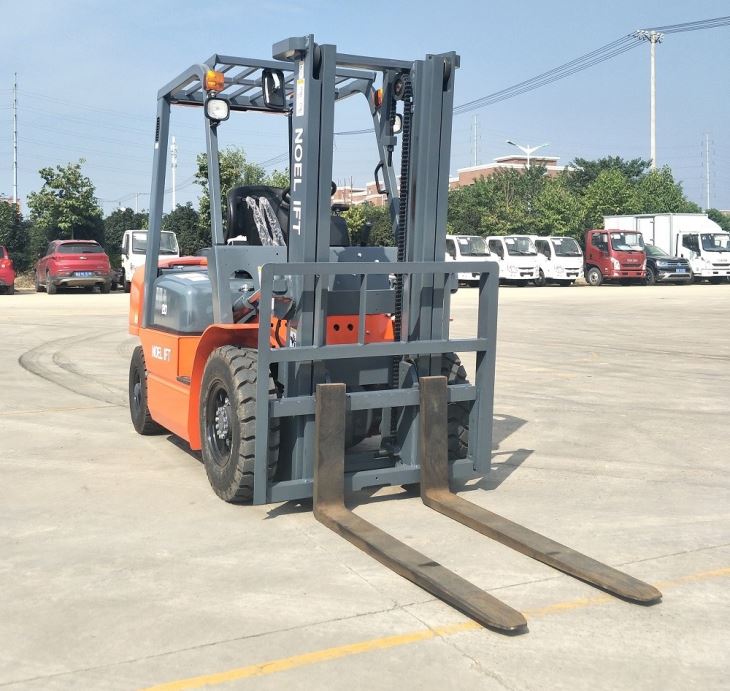

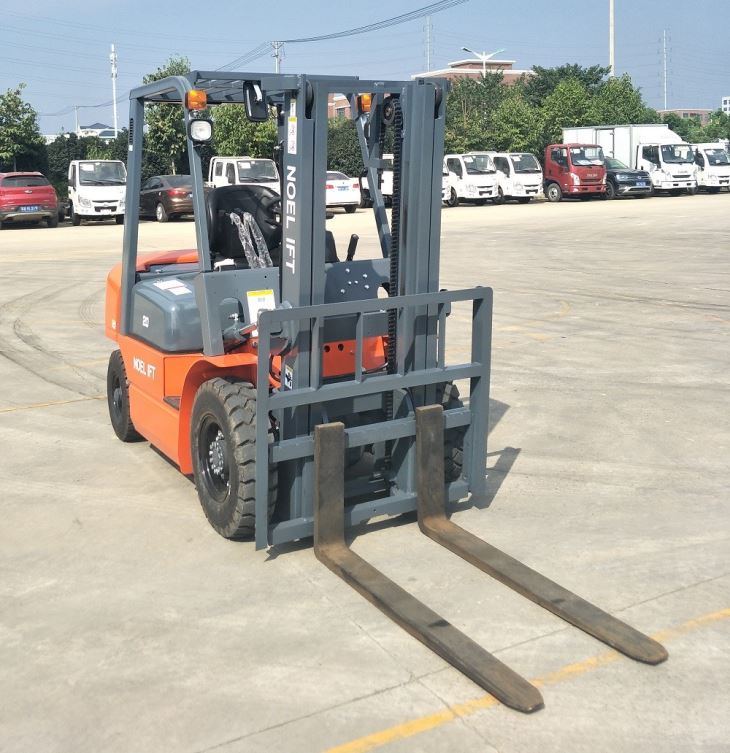

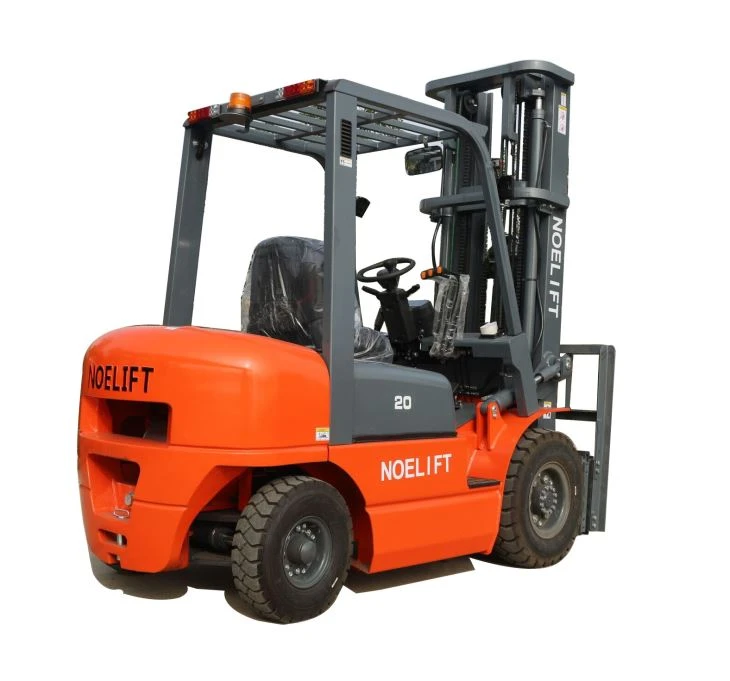

2T Diesel Forklift Truck
1.8t automatic diesel forklift with side shifter and triplex full free mast
Send Inquiry
Product Introduction
High-level Configuration Counterbalance 2T Diesel Fork Lift
1) Features
Redesigned counterweight and cooling system assists in improving the longevity of engines.
Shock-absorbing rubber mounted steering axle provides improved operator comfort and steering control.
Foot-operated park brake offering easy and safe engagement.
Electric direction change lever, conveniently and ergonomically placed for effortless forward and reverse selection.
2) Specification Data
| Model | FD20 | |
| Power type | Diesel | |
| Rated capacity | kg | 2000 |
| Load center | mm | 500 |
| Dimension | Lift height H | mm |
| Free lift height H4 | mm | 162 |
| Fork size L*W*T | mm | 920*100*40 |
| Mast tilt angle α/β | deg | 6/11 |
| Front overhang X | mm | 408 |
| Overall dimension | Length to fork face L1 | mm |
| Overall width B1 | mm | 1080 |
| Mast lowered height H1 | mm | 1995 |
| Mast extended height H3 | mm | 4042 |
| Overhead guard height H2 | mm | 2100 |
| Performance | Turning radius R | mm |
| Travel speed (full load/no load) | km/h | 12/14 |
| Lift speed (full load/no load) | mm/sec | 460 |
| Max. Gradeability | % | 20 |
| Service weight | kg | 2740 |
| Chassis | Tyre | Front |
| Rear | 5.00-8-10PR | |
| Tread | Front B2 | mm |
| Rear B3 | mm | 920 |
| Wheelbase | mm | 1450 |
| Ground clearance (full load/no load) | Mast | |
| Frame | mm | 100/110 |
| Drive units & Control | Engine | Apply to truck model |
| Engine type | Diesel | |
| Engine Name Code | W1 | |
| Model | ISUZU C240PKJ | |
| Rated output | kw/rpm | 34.5/2500 |
| Rated torque | N.m/rpm | 139/1800 |
| No.of cylinder | 4 | |
| Bore*stroke(mm) | mm | 86*102 |
| Displacement | (L) | 2.369 |
