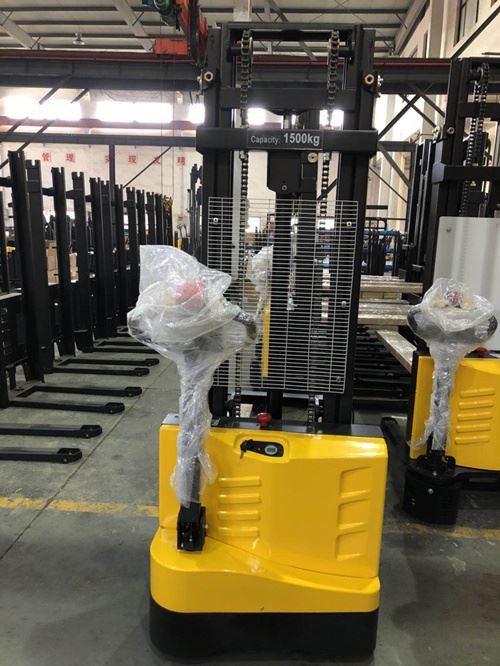

Chinese Electric Pallet Stacker 1500kg Lift 3000mm 3500mm

Chinese Full Electric Pallet Stacker 1500kg lift 1600mm/2500mm/3000mm /3500mm

Features of Chinese Electric Pallet Stacker 1500kg Lift 3000mm 3500mm

1: Smart body, with attractive appearance. High-strength frame designed for tough pallet handling tasks.

2: Lower consumption, Lower service cost, while higher performance.

3: 24V/65AH(80AH optional) maintenance free battery contributes to strong power and easier operation.

4: Compact structure and reasonable layouts provides steadiness and durability during operation.

Performance

1: Ergonomically designed and built Handle is increasing your comfort during operation. Dustproof and sealing structure prevent it from dust pollution damages and improve service life.

2: Intelligent and modular controlling system ensures the steadiness and safety for walking, lifting, lowering and braking.

3: Handle is utilized for easier operation and less turing radius, suitable for confined space and narrow aisle.

Safety

1: The Anti-Reverse safety button mounted at the top of the handle reverses the truck direction to prevent the operator from being caught between the truck and the obstacle on unexpected occasions.

2: Intelligent controller takes protection measures in case of over voltage, low voltage, over current, over temperature and short circuit occasions.

3: Especially innovated speed deceleration system automatically reduces the travel speed when turning and greatlyimproved the loading stability, avoiding possibility of load tipping over and making operate safer.(Optional)

Serviceability

1: Self-Diagnostics provided direct fault code readout during operation and start up, which is ease of service andmaintenance.

2: 24V/65AH(80AH optional) maintenance free battery contributes to strong power and easier operation, meeting most requirements for light and medium duty applications

3: Built-in charger practically eliminates contamination entry, which can result in failure.

Manufacturer		NOELIFT	NOELIFT	NOELIFT	NOELIFT	NOELIFT
Model		ESC15M16	ESC15M25	ESC15M30	ESC15M33	ESC15M35
Rated load	kg	1500	1500	1500	1500	1500
Load center	mm	600	600	600	600	600
Wheelbase	mm	1245	1245	1245	1245	1245
Service Weight (without battery)	kg	470	520	540	570	600
Service Weight (incl.battery)	kg	520	570	590	620	650
Wheel type		PU	PU	PU	PU	PU
Stabilizing wheel size	mm	124	124	124	124	124
Number of wheels	psc	6	6	6	6	6
Mast closed height	mm	2065	1785	2035	2185	2260
Mast extended height with load-backrest	mm	2065	3000	3500	3800	3975
Lift height	mm	1600	2500	3000	3300	3500
Overall length	mm	1770	1770	1770	1770	1775
Overall width	mm	820	820	820	820	820
Fork width	mm	160	160	160	160	160
Fork length	mm	1150	1150	1150	1150	1150
Fork outside width	mm	560/680	560/680	560/680	560/680	560/680

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

1. One-stop solutions offer

2. OEM services offer

3. 24 hours non stop service offer

4. Track the products for you once every two days, until you get the products.

5. During warrarnty, spare parts delivery within one week for free.

NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
