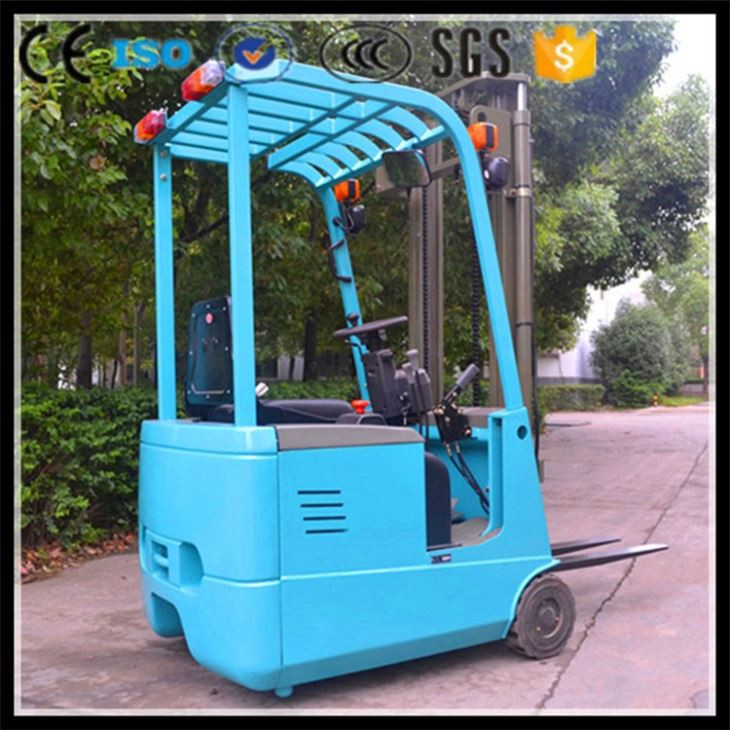

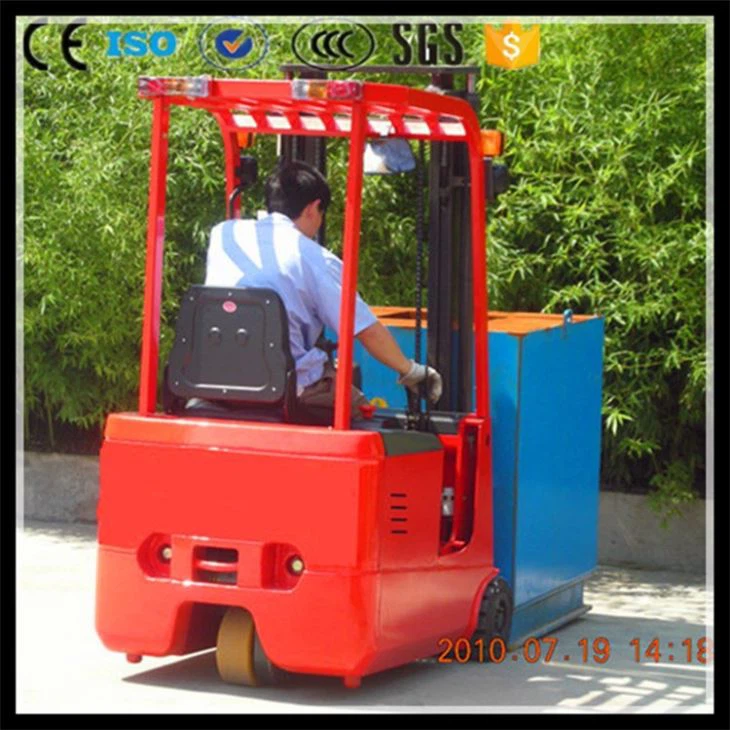

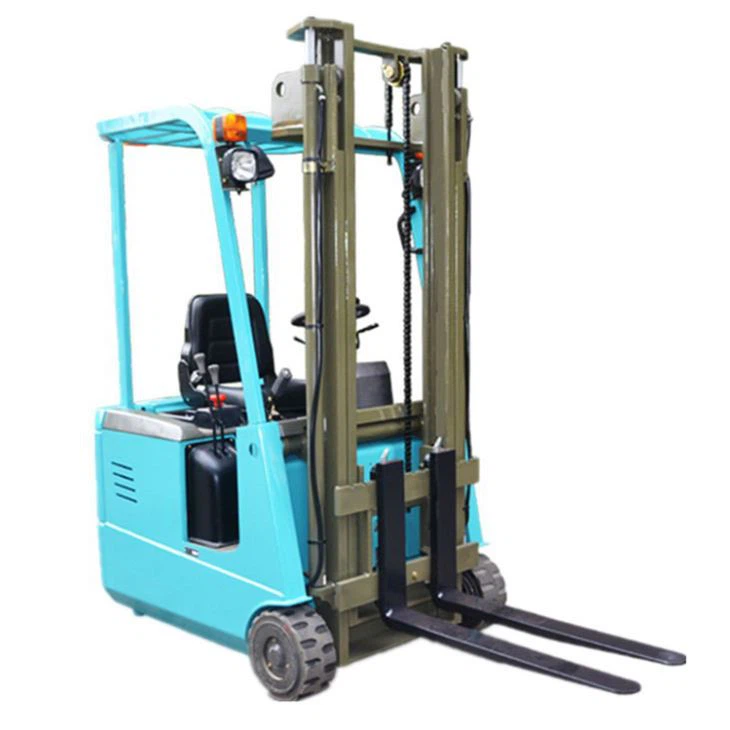

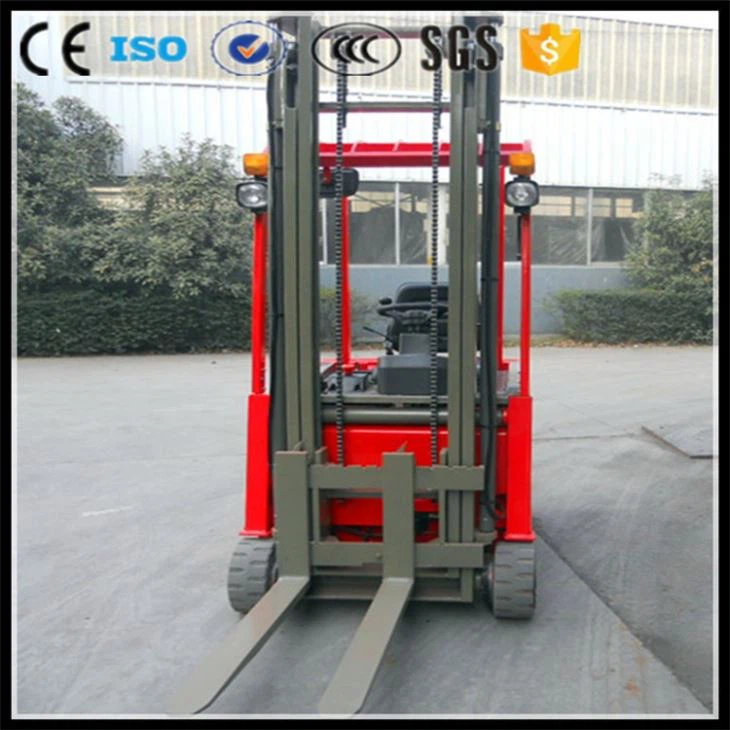

1.6 Ton Three Wheel Electric Forklift
Forward cylinder security locks and variable wheelbase to ensure more security in forklift running;
High-strength overhead guard to ensure safety of the operating personnel;
Certificates:
Factory:
Product Parameter
TKA- 3-wheel electric forklift truck 24V
1 | Description | 3-wheel electric forklift truck | |
2 | Model | TKA10-30 | TKA15-30 |
3 | Load capacity Kg | 1000 | 1500 |
4 | Load center mm | 500 | 500 |
5 | Max. lifting height mm | 3000 | 3000 |
6 | Tilting angle(forward- backward) deg | 2/4 | 2/4 |
7 | Free lift mm | 0 | 0 |
8 | Wheel type | Polyurethane solid tire | |
9 | Fork size(LxWxT)mm | 920*100*35 | 920*100*35 |
10 | Fork spread mm | 545 | 655 |
11 | Overall length(without forks) mm | 1350 | 1450 |
12 | Overall width mm | 870 | 1100 |
13 | Overall height mast closed mm | 2070 | 2070 |
14 | Overall height fork raised(without backrest) mm | 3535 | 3535 |
15 | Overhead guard height mm | 1965 | 1965 |
16 | Outside turning radius mm | 1170 | 1272 |
17 | Min. intersecting aisle mm | 2700 | 3050 |
18 | Max. walking speeds Km/h | 7.2 | 7.0 |
19 | Lifting speeds (Loaded/ Unloaded)mm/s | 125/170 | 125/170 |
20 | Grade abitity % | 8 | 8 |
21 | Total weight( with battery) Kg | 1950 | 2170 |
22 | Front tire | Φ305*127 | Φ305*140 |
23 | Rear tire | Φ267*127 | Φ267*127 |
24 | Wheel base(adjustable)mm | 880-961 | 950-1031 |
25 | Ground clearance mm | 90 | 90 |
26 | Service brake | hydraulic | |
27 | Parking brake | mechanical | |
28 | Battery V/Ah | 24/360 | 24/480 |
29 | Charger V/A | 24/40 | 24/50 |
30 | Driving motor Kw | 2.8 AC | 2.8 AC |
31 | Lifting motor Kw | 3.5 | 3.5 |
