Vna 4 Way Forklift

Product Picture side loaders 4 WAY electric reach forklift Battery recharging Sole Battery on trolley quickly easy Recharging Product Description 2.5T 4 direction electric reach truck TFB Series with AC driving motor. Rated load capacity: 2500kg, Lifting height: 7200mm. Product Advantages 1....
Send Inquiry
Product Introduction


Product Description

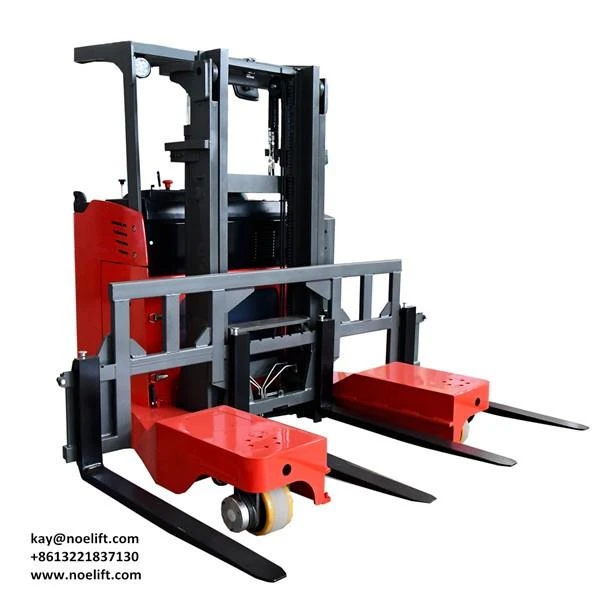

48V 4 direction Electric Reach Track TFB series

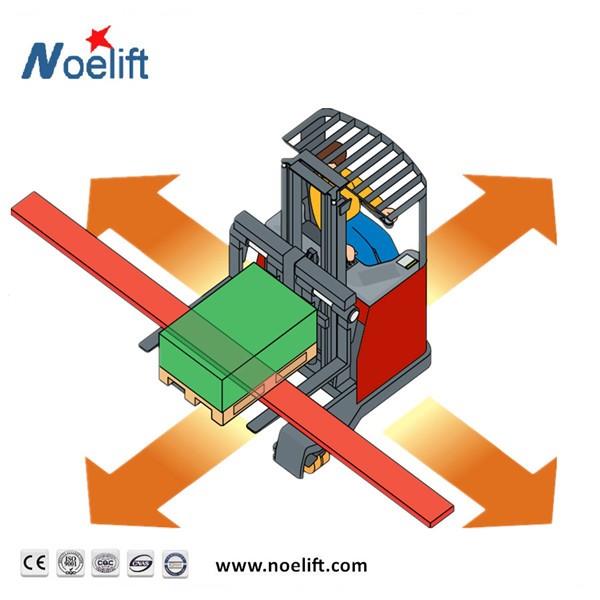

TFB 4-direction reach truck with 4 direction changing and moving;

Rated load capacity: 2500kg; Max lift height: 7200mm.

The user-friendly display allows you to tare off containers up to 100% of the scale range

or you can input the known tare weight of a loaded. Made stronger than the original truck.

All our weighing machines are made using high quality load cells that have a very good repeatability.


TF Series with AC driving motor, Rated load capacity: 1500kg, lift height: 3000mm, it's popular in every industries;
1. Safety Device for neutral position to increase the safety of forklift;
2. High Strength frame to protect the operator;
3. Oil-way stop Valve,to protect the operator and goods;
4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;
5. Inching capacity, the forklift can finish the extremely adjustment during moving;

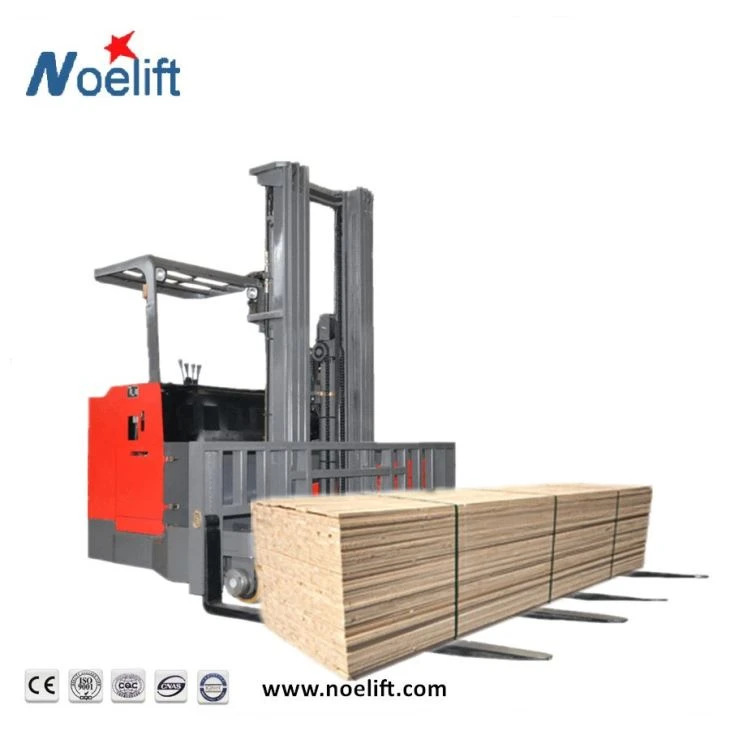

2.5t 4-way 8000mm electric reach trucks for arm rack system



Battery recharging

2.5t 4-way 8000mm electric reach trucks for arm rack system


Sole Battery on trolley quickly easy Recharging

2.5t 4-way 8000mm electric reach trucks for arm rack system




Product Parameter


TFB 4-direction reach truck


1

Description

4-direction reach truck


2

Model

TFB15

TFB20

3

Loading capacity Kg

1500

2000

4

Loading center mm

500

500

5

Lifting height mm

3000

3000

6

Fork size mm

1070×100×35

1070×120×40

7

Mast inclination deg

3/5

3/5

8

Overall length mm

2240

2470

9

Overall width mm

1398

1520

10

Top support protection height mm

2320

2320

11

Mast forwarding length mm

560

685

12

Ground clearance mm

80

80

13

Drving speed (Load/ Unload) km/h

7.5/8.5

7.5/8.5

14

Drving speed (Side) km/h

5

5

15

Lifting speed Load/Unload mm/s

160/315

160/315

16

Gradeability %

≤10

≤10

17

Total weight(with battery) Kg

2600

3480

18

Front wheel mm

Φ267×114

Φ267×114

19

Driving wheel mm

Φ343×108

Φ343×108

20

Balance wheel mm

Φ180×76

Φ180×76

21

Battery Ah

48V/300Ah

48V/400Ah

22

Driving motor Kw

5.5(AC)

5.5(AC)

23

Lifting motor Kw

6.3

7.5

Product Detail show Pictures


2.5t 4-way 8000mm electric reach trucks for arm rack system2.5t 4-way 8000mm electric reach trucks for arm rack system

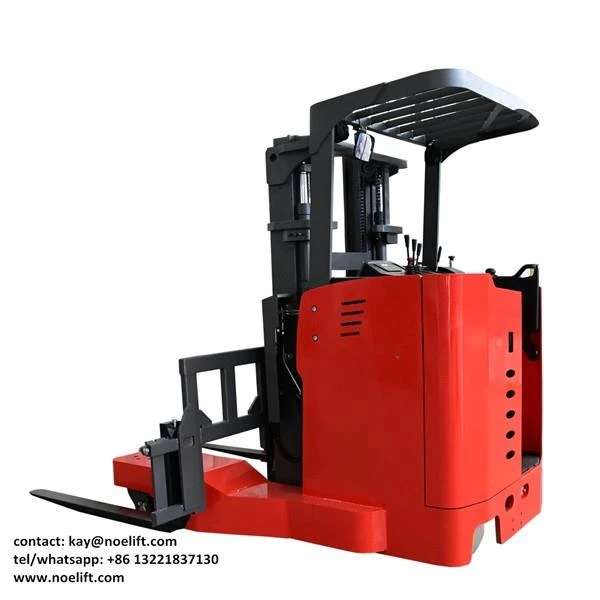

4 way electric reach truck
