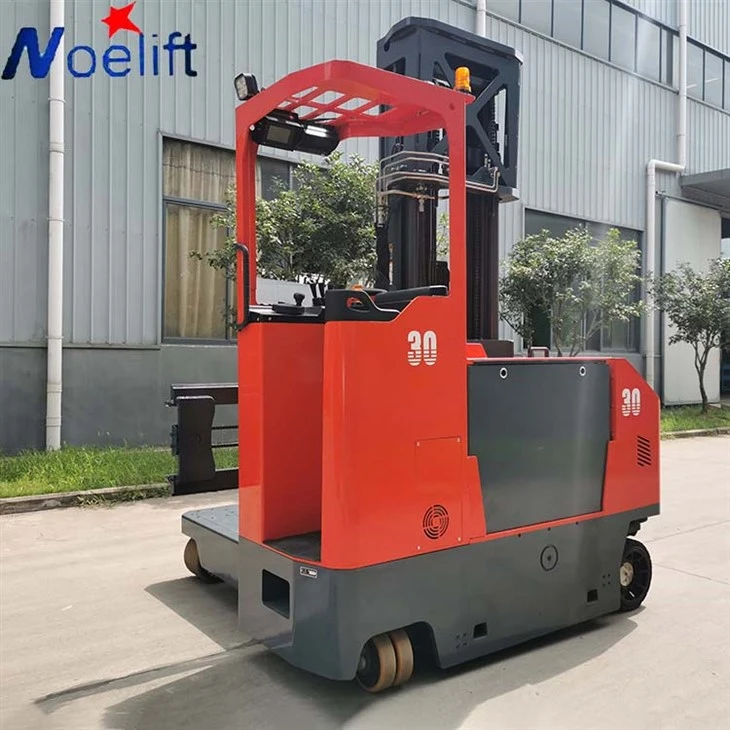

4 Way Electric Reach Truck
Battery recharging Sole Battery on trolley quickly easy Recharging
Product Description :
2.5T 4 direction electric reach truck TFB Series with AC driving motor.
Rated load capacity: 2500kg,
Lifting height: 7200mm.
4-Way electric reach forklift Specifications
1.Special forklift truck suitable for long material handling and long material stacking in narrow aisle. Such as metal profiles, pipes, wood and other long materials.
2.Loading weight is 1.5-2.5t, lifting height is 3-8m.

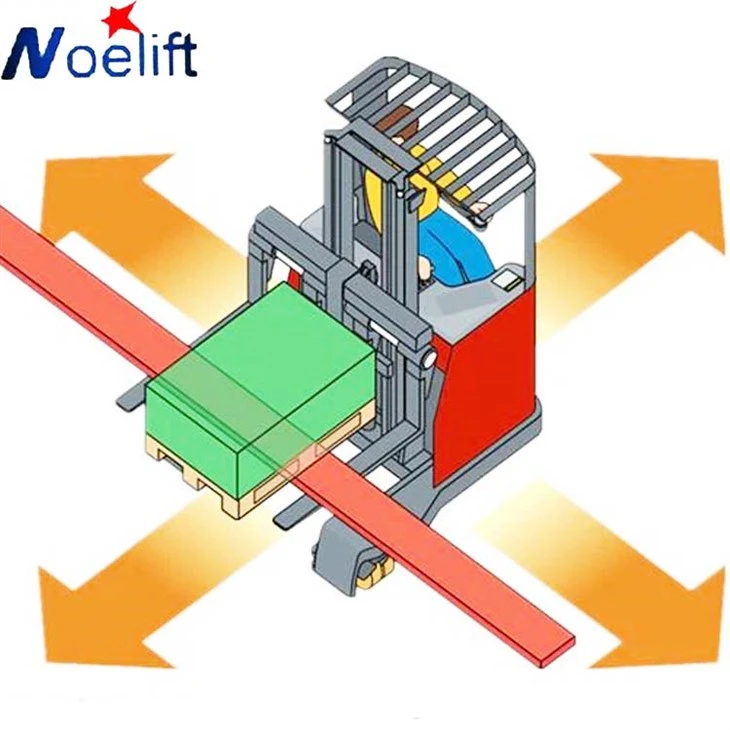

3.It has many driving modes, such as straight line, side line, oblique line, right angle turning, 360 degree in-situ turning and so on.

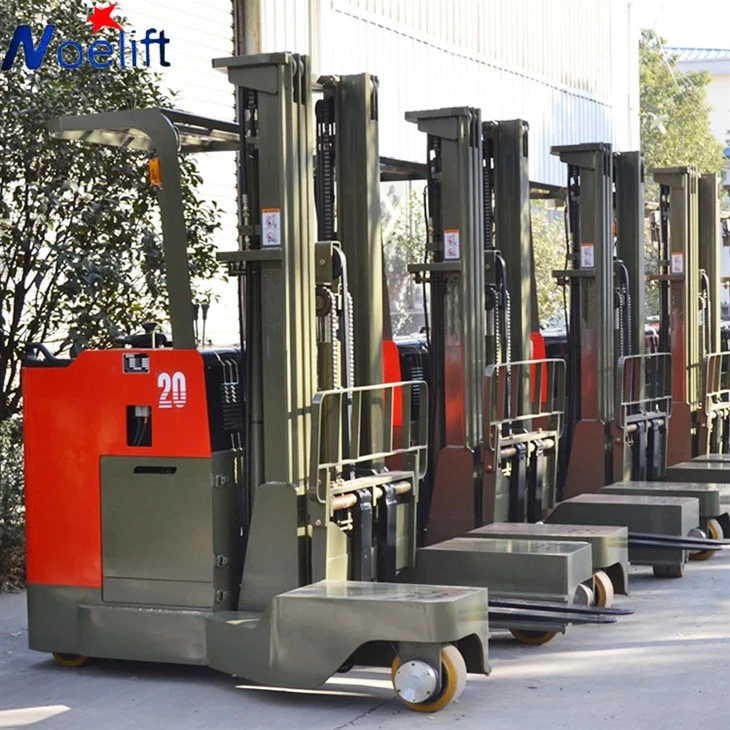

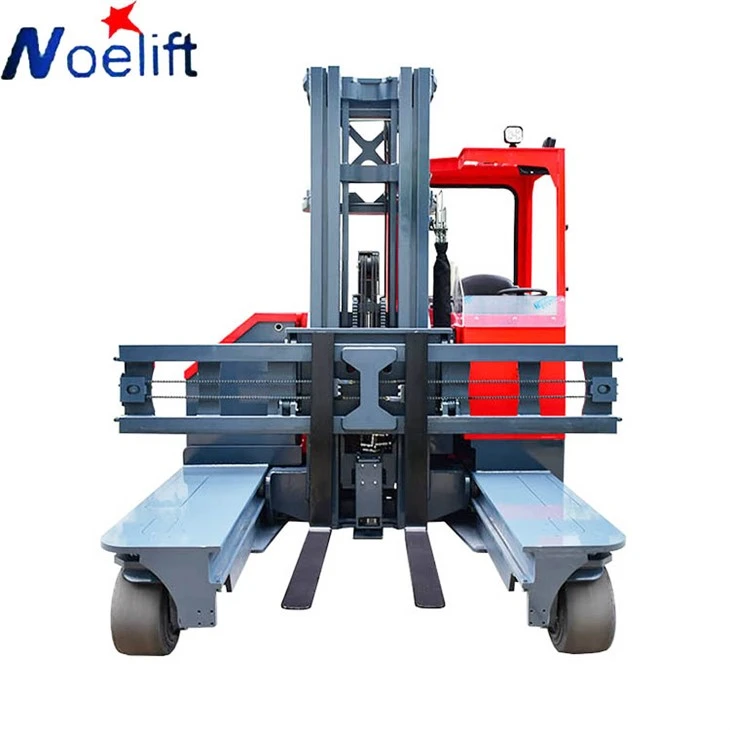

Detail picture
Specifiction parameters
|
1 |
Description |
4-direction reach truck |
|
|
2 |
Model |
TFB15 |
TFB20 |
|
3 |
Loading capacity Kg |
1500 |
2000 |
|
4 |
Loading center mm |
500 |
500 |
|
5 |
Lifting height mm |
3000 |
3000 |
|
6 |
Fork size mm |
1070×100×35 |
1070×120×40 |
|
7 |
Mast inclination deg |
3/5 |
3/5 |
|
8 |
Overall length mm |
2240 |
2470 |
|
9 |
Overall width mm |
1398 |
1520 |
|
10 |
Top support protection height mm |
2320 |
2320 |
|
11 |
Mast forwarding length mm |
560 |
685 |
|
12 |
Ground clearance mm |
80 |
80 |
|
13 |
Drving speed (Load/ Unload) km/h |
7.5/8.5 |
7.5/8.5 |
|
14 |
Drving speed (Side) km/h |
5 |
5 |
|
15 |
Lifting speed Load/Unload mm/s |
160/315 |
160/315 |
|
16 |
Gradeability % |
≤10 |
≤10 |
|
17 |
Total weight(with battery) Kg |
2600 |
3480 |
|
18 |
Front wheel mm |
Φ267×114 |
Φ267×114 |
|
19 |
Driving wheel mm |
Φ343×108 |
Φ343×108 |
|
20 |
Balance wheel mm |
Φ180×76 |
Φ180×76 |
|
21 |
Battery Ah |
48V/300Ah |
48V/400Ah |
|
22 |
Driving motor Kw |
5.5(AC) |
5.5(AC) |
|
23 |
Lifting motor Kw |
6.3 |
7.5 |
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warrarnty, spare parts delivery within one week for free.
Products Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
