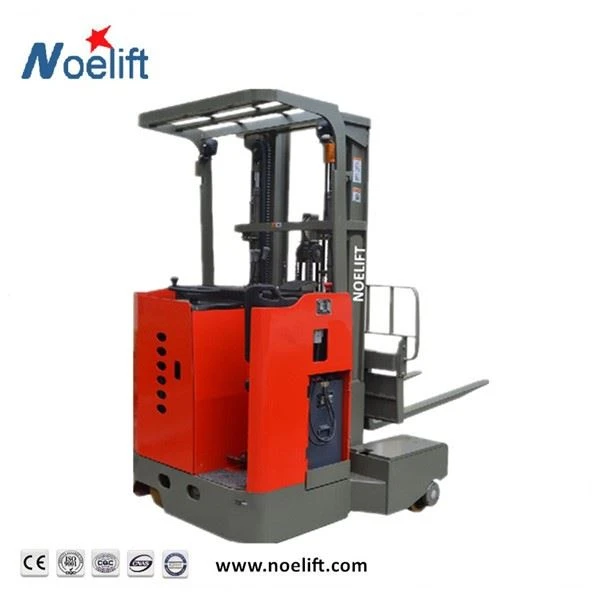

4 DIRECTION Electric Reach Truck
Product Descriptions
TFB MODEL
1.Special forklift truck suitable for long material handling and long material stacking in narrow aisle. Such as metal profiles, pipes, wood and other long materials.
2.Loading weight is 1.5-2.5t, lifting height is 3-8m.
3.It has many driving modes, such as straight line, side line, oblique line, right angle turning, 360 degree in-situ turning and so on.
Battery recharging
Sole Battery on trolley quickly easy Recharging
Product Parameter
TFB 4-direction reach truck
1 | Description | 4-direction reach truck | |
2 | Model | TFB15 | TFB20 |
3 | Loading capacity Kg | 1500 | 2000 |
4 | Loading center mm | 500 | 500 |
5 | Lifting height mm | 3000 | 3000 |
6 | Fork size mm | 1070×100×35 | 1070×120×40 |
7 | Mast inclination deg | 3/5 | 3/5 |
8 | Overall length mm | 2240 | 2470 |
9 | Overall width mm | 1398 | 1520 |
10 | Top support protection height mm | 2320 | 2320 |
11 | Mast forwarding length mm | 560 | 685 |
12 | Ground clearance mm | 80 | 80 |
13 | Drving speed (Load/ Unload) km/h | 7.5/8.5 | 7.5/8.5 |
14 | Drving speed (Side) km/h | 5 | 5 |
15 | Lifting speed Load/Unload mm/s | 160/315 | 160/315 |
16 | Gradeability % | ≤10 | ≤10 |
17 | Total weight(with battery) Kg | 2600 | 3480 |
18 | Front wheel mm | Φ267×114 | Φ267×114 |
19 | Driving wheel mm | Φ343×108 | Φ343×108 |
20 | Balance wheel mm | Φ180×76 | Φ180×76 |
21 | Battery Ah | 48V/300Ah | 48V/400Ah |
22 | Driving motor Kw | 5.5(AC) | 5.5(AC) |
23 | Lifting motor Kw | 6.3 | 7.5 |
Product Detail show Pictures
