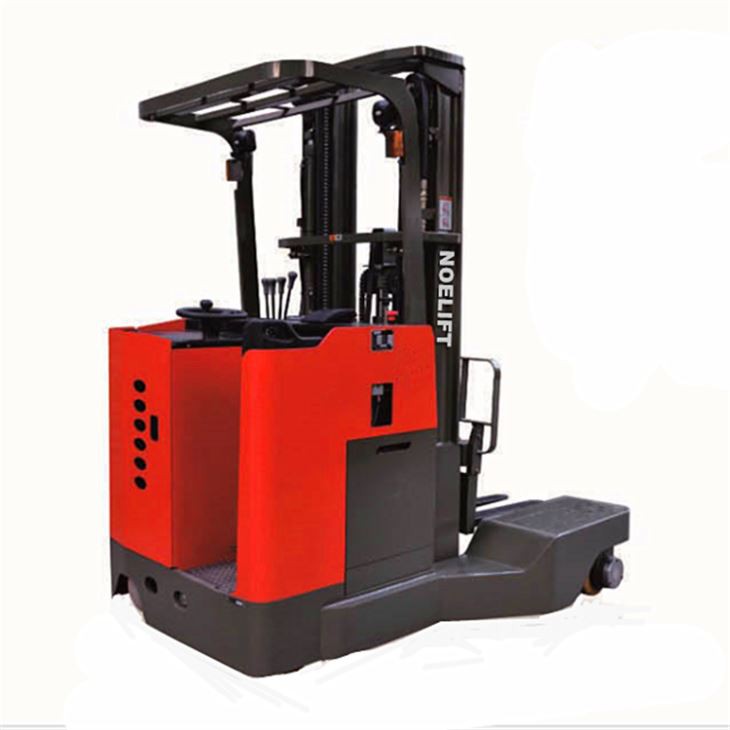

Sit Type Omnidirectional Direction Electric Motor Reach Truck
Max. Lifting Height:8 meters
Max. Loading Capacity:4000kg
Send Inquiry
Product Introduction
Product details
1. EPS steering+one switch change mode+multi-funtional instrument with driving wheel position display+soft cushion, making operation easy and comfortable;
1. EPS steering+one switch change mode+multi-funtional instrument with driving wheel position display+soft cushion, making operation easy and comfortable;
2. Side pull design as standard, making battery maintenance easy;
Certification :
| Description | Multi directional forklift | ||
| Model | TFB2530 | TFB2545SQ | |
| Operate type | Stand on | Stand on | |
| Rated capacity | kg | 2500 | 2500 |
| Load center | mm | 500 | 500 |
| Wheelbase | mm | 1700 | 1700 |
| Service weight(incl. battery) | kg | 3700 | 3900 |
| Wheel type | PU | PU | |
| Left front wheel, double wheels | mm | Φ254*65 | Φ254*65 |
| Right front wheel, single wheel | mm | Φ254*135 | Φ254*135 |
| Rear drive wheel, single wheels | mm | Φ380*165 | Φ380*165 |
| Rear balance wheel, double wheels | mm | Φ204*76 | Φ204*76 |
| Mast closed height | mm | 2082 | 2292 |
| Free lift height | mm | 80 | 1320 |
| Lifting height | mm | 3000 | 4500 |
| Mast height with backrest | mm | 3960 | 5460 |
| Overhead guard height | mm | 2300 | 2300 |
| Overall length | mm | 2250 | 2300 |
| Overall width | mm | 1752 | 1752 |
| Fork size | mm | 920*120*40 | 920*122*40 |
| Turning radius | mm | 1975 | 1975 |
| Driving motor(S2-60min) | kw | 5.5AC | 5.5AC |
| Lifting motor(S3 15%) | kw | 8.6AC | 8.6AC |
| Battery voltage/capacity | V/Ah | 48/400 | 48/400 |
| Battery weight | kg | 665 | 665 |
| Brake type | Electromagnetic | Electromagnetic | |
| Steering system | EPS | EPS | |
