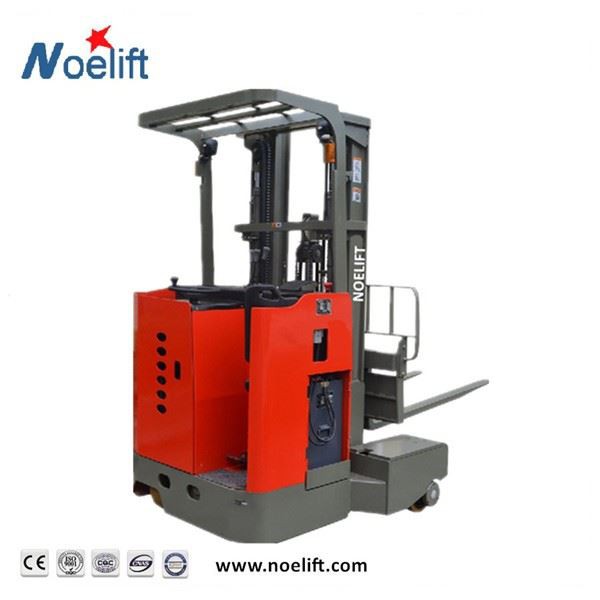

4 Direction Electric Forklift
Product Descriptions
vna forklift, 4 way electric reach truck for sale.
contact us and get quotation.
load capacity 2.5t.
Optional lift height: 3-8meters.
Optional mast type: 2 stage mast, full free 3 stage mast.
Controller: US original CURTIS
brushless AC motor.
Warranty: 12 months.
Battery recharging pictures
Sole Battery on trolley quickly easy Recharging
Product Specifications
TFB 4-direction reach truck
1 | Description | 4-direction reach truck | |
2 | Model | TFB15 | TFB20 |
3 | Loading capacity Kg | 1500 | 2000 |
4 | Loading center mm | 500 | 500 |
5 | Lifting height mm | 3000 | 3000 |
6 | Fork size mm | 1070×100×35 | 1070×120×40 |
7 | Mast inclination deg | 3/5 | 3/5 |
8 | Overall length mm | 2240 | 2470 |
9 | Overall width mm | 1398 | 1520 |
10 | Top support protection height mm | 2320 | 2320 |
11 | Mast forwarding length mm | 560 | 685 |
12 | Ground clearance mm | 80 | 80 |
13 | Drving speed (Load/ Unload) km/h | 7.5/8.5 | 7.5/8.5 |
14 | Drving speed (Side) km/h | 5 | 5 |
15 | Lifting speed Load/Unload mm/s | 160/315 | 160/315 |
16 | Gradeability % | ≤10 | ≤10 |
17 | Total weight(with battery) Kg | 2600 | 3480 |
18 | Front wheel mm | Φ267×114 | Φ267×114 |
19 | Driving wheel mm | Φ343×108 | Φ343×108 |
20 | Balance wheel mm | Φ180×76 | Φ180×76 |
21 | Battery Ah | 48V/300Ah | 48V/400Ah |
22 | Driving motor Kw | 5.5(AC) | 5.5(AC) |
23 | Lifting motor Kw | 6.3 | 7.5 |
Product Detail show Pictures
