Side Loaders 4 WAY Electric Reach Forklift
Rated load capacity: 2500kg, Lifting height: 7200mm. Product Advantages 1....
production Description

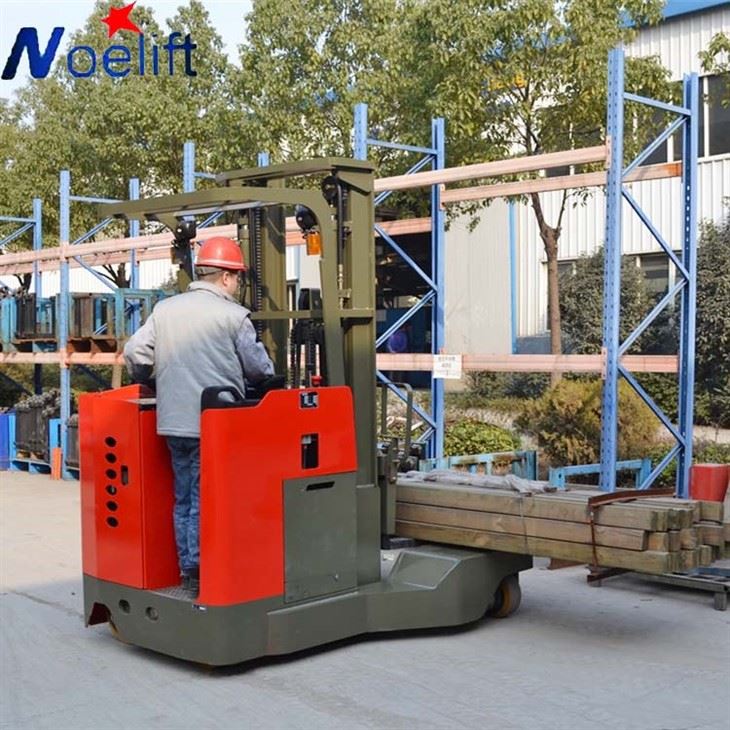

side loaders 4 WAY electric reach forklift
2.5T 4 direction electric reach truck
TFB Series with AC driving motor.
Rated load capacity: 2500kg,
Lifting height: 7200mm.
Battery recharging
Sole Battery on trolley quickly easy Recharging
Products advantages
1. Safety device for neutral position to increase the safety of forklift;
2. High strength frame to protect the operator;
3. Oil-way stop Valve,to protect the operator and goods;
4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;
5. Inching capacity, the forklift can finish the extremely adjustment during moving. It means front wheel steering to change the travel direction-do not need to turn the body.
Important parameters
TFB 4-direction reach truck
|
1 |
Description |
4-direction reach truck |
|
|
2 |
Model |
TFB15 |
TFB20 |
|
3 |
Loading capacity Kg |
1500 |
2000 |
|
4 |
Loading center mm |
500 |
500 |
|
5 |
Lifting height mm |
3000 |
3000 |
|
6 |
Fork size mm |
1070×100×35 |
1070×120×40 |
|
7 |
Mast inclination deg |
3/5 |
3/5 |
|
8 |
Overall length mm |
2240 |
2470 |
|
9 |
Overall width mm |
1398 |
1520 |
|
10 |
Top support protection height mm |
2320 |
2320 |
|
11 |
Mast forwarding length mm |
560 |
685 |
|
12 |
Ground clearance mm |
80 |
80 |
|
13 |
Drving speed (Load/ Unload) km/h |
7.5/8.5 |
7.5/8.5 |
|
14 |
Drving speed (Side) km/h |
5 |
5 |
|
15 |
Lifting speed Load/Unload mm/s |
160/315 |
160/315 |
|
16 |
Gradeability % |
≤10 |
≤10 |
|
17 |
Total weight(with battery) Kg |
2600 |
3480 |
|
18 |
Front wheel mm |
Φ267×114 |
Φ267×114 |
|
19 |
Driving wheel mm |
Φ343×108 |
Φ343×108 |
|
20 |
Balance wheel mm |
Φ180×76 |
Φ180×76 |
|
21 |
Battery Ah |
48V/300Ah |
48V/400Ah |
|
22 |
Driving motor Kw |
5.5(AC) |
5.5(AC) |
|
23 |
Lifting motor Kw |
6.3 |
7.5 |
Products Certifications
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warranty, spare parts delivery within one week for free.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plastic films+cardboard+knit belt. It is ok to pack it based on customized requirements.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Company Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
