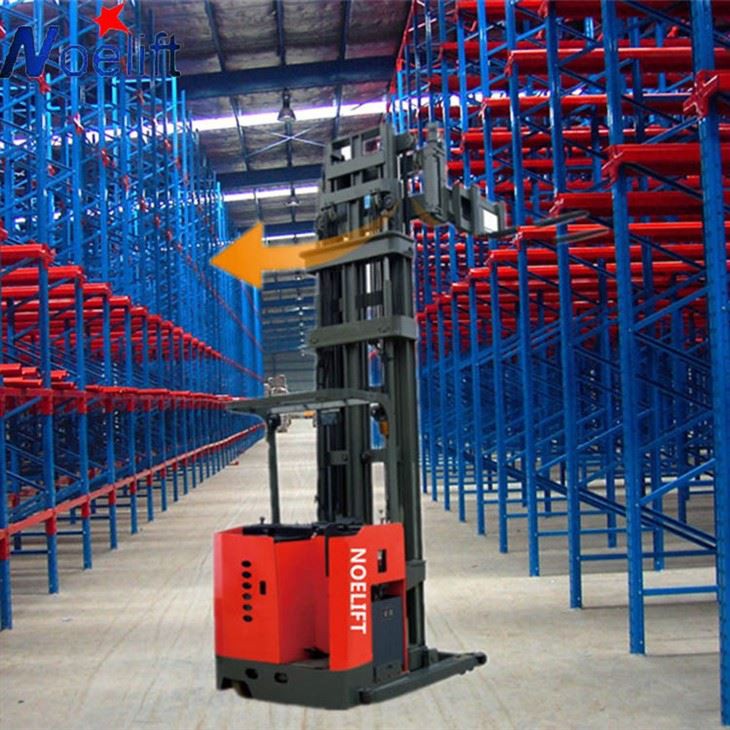

Narrow Aisle Three-Way Electric Stacker
Lift height 3000mm-7500mm
Condition New Name 1000kg to 1500kg
Narrow Aisle Three-Way Electric Forklift
Three - Way stacker Specifications
1. Full AC system, maintenance-free, high efficiency and energy saving, strong endurance;
2. The minimum working aisle is 1480mm, and the maximum lifting height is 9000mm. Forklifts do not need to turn, and the stacking and taking of goods on both sides ,it can be realized through the rotation of the fork, effectively increasing the storage capacity ;
3. The mast is made of KRUPP steel from Germany, with good load capacity and stability. When the MC10 load center is 500mm, it is not lost loading at 6000mm, and when the MC15 load center is 550mm,it is not lost loading at 5000mm ;
4. Turning speed limited, high speed limited, mast buffer and other safety functions escort;.
Specifiction parameters
| Specification | ||||
| Manufacturer | - | Noelift | Noelift | |
| Operation type | - | Standing posture | Standing posture | |
| Model | - | TC10-60 | TC15-60 | |
| Power type | - | Full-Electric | Full-Electric | |
| Capacity | kg | 1000 | 1500 | |
| Max lifting height | mm | 6000 | 6000 | |
| Load center | mm | 500 | 500 | |
| Wheel type | - | Pu solid tire | Pu solid tire | |
| Fork dimensions | mm | 1070*100*35 | 1070*125*50 | |
| Fork spread | - | 260-820 | 265-760 | |
| Overall length including fork | mm | 2890 | 3010 | |
| Overall width | mm | 1370 | 1550 | |
| Height-mast Lowered | mm | 3250 | 3125 | |
| Turning radius | mm | 1880 | 2000 | |
| The height of overhead guards | mm | 2325 | 2280 | |
| Min ground clearance | mm | 40 | 40 | |
| Max travel speed | km/h | 7.0/8.0 | 6.8/7.8 | |
| Lifting speed | mm/s | 180/315 | 120/270 | |
| Total weight | kg | 5250 | >5600 | |
| Driving wheel | mm | Φ380×165 | Ø382*142 | |
| front wheel | mm | Φ140×100 | Ø145*100 | |
| Balance wheel | mm | Φ204×76 | Ø180*76 | |
| Battery capacity | V/Ah | 48V /400 AH | 48/400 | |
| Charger-intelligent | V/A | 48V /50 A | 48/50 | |
| Driving motor | kw | 5.5 (AC) | 5.0(AC) | |
| Lifting motor | kw | 7.5 | 7.5(DC) | |
| Transmission controller type | - | Electric | Electric | |
| Walking adjustable type | - | Holzer type accelerator | Holzer type accelerator | |
| Braking type | - | Electromagnetic | Electromagnetic |
|
