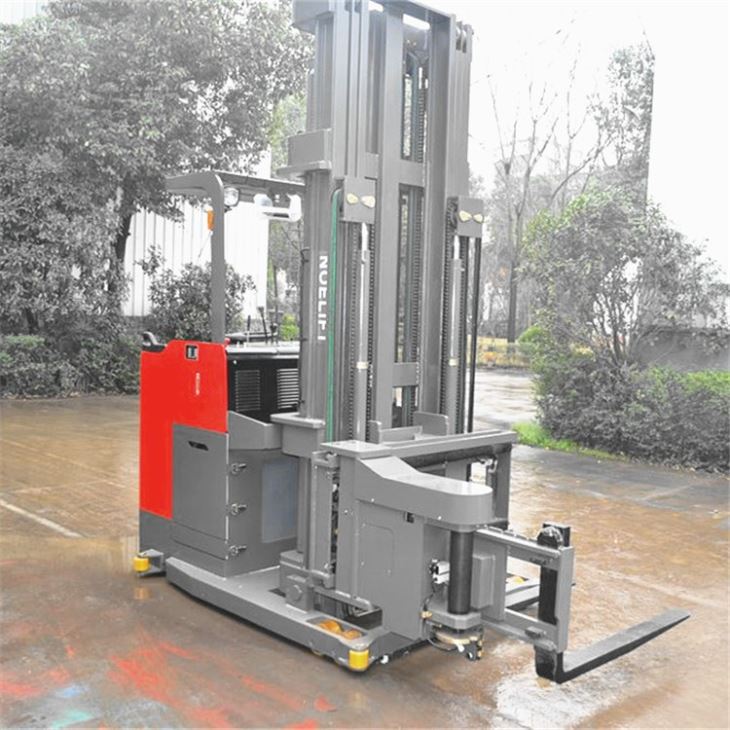

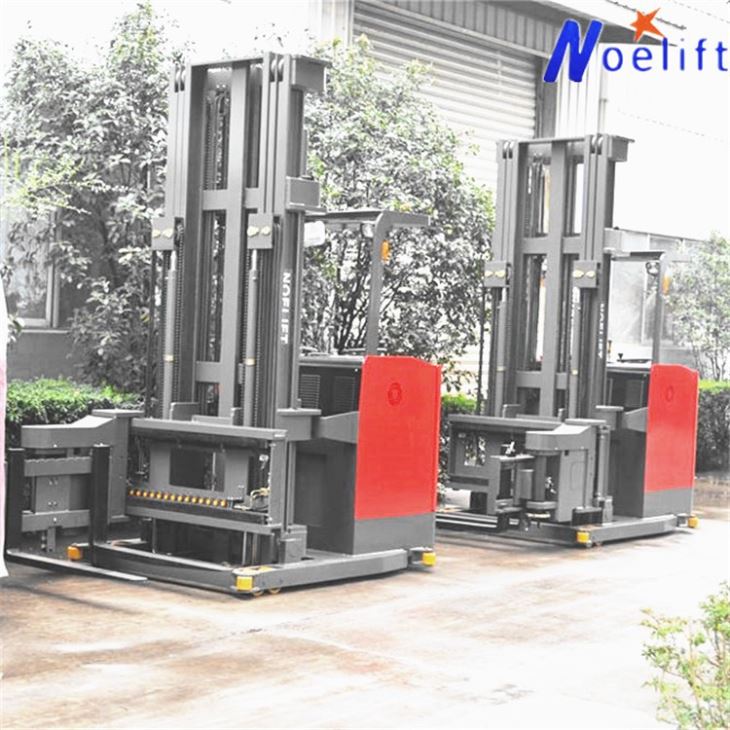

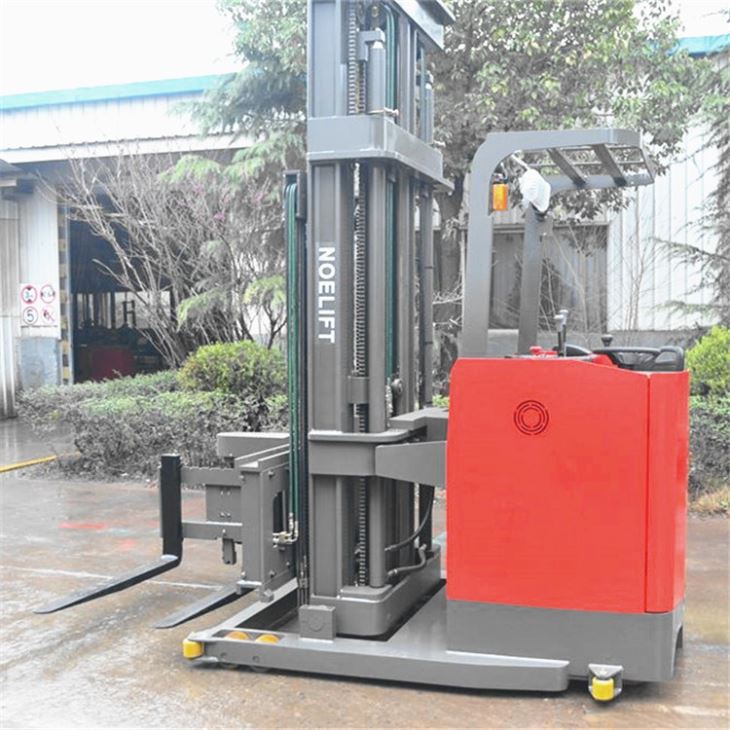

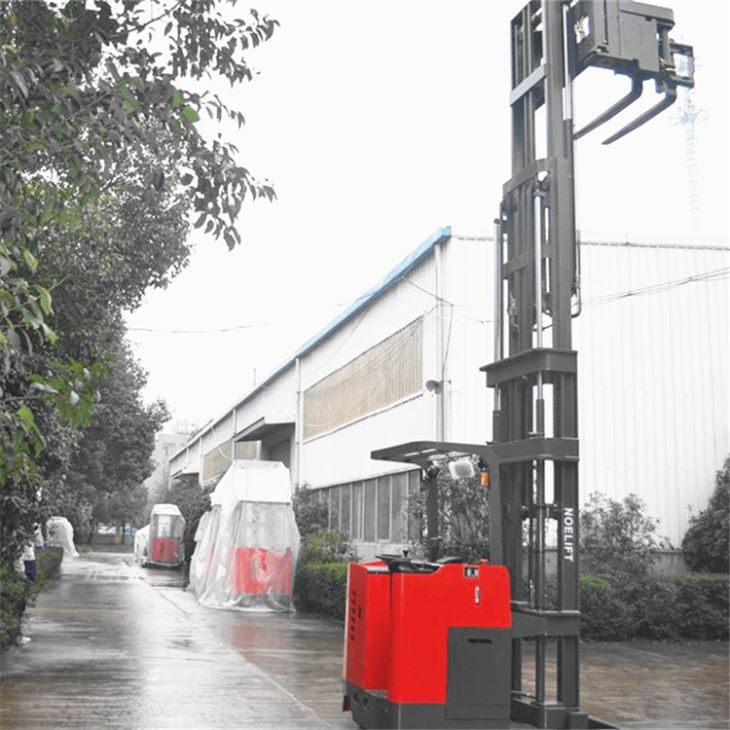

Narrow Aisle Forklift Trucks Truck Electric Stacker
Lift height 3000mm-7500mm
Load capacity: 1000kg to 1500kg
Condition: New
Three-Way Electric Forklift Specifications
The three-way electric stacker forklift is designed for narrow aisles and is equipped with an EPS electronic steering system, which can greatly reduce the required aisle width, allowing it to operate flexibly in a small space. This type of electric stacker not only has efficient three-way operation capabilities, but also can accurately handle cargo stacking and handling tasks in the warehouse.
This stacker is equipped with a large-capacity battery with a long battery life, which can meet the needs of long-term continuous operation, reduce the trouble of frequent charging, and improve work efficiency. In addition, it adopts a full AC electric system with higher energy efficiency and lower maintenance costs. The full AC motor not only provides smooth power output, but also improves the durability and reliability of the equipment.
This three-way electric stacker is particularly suitable for storage environments that require high-density storage and precise stacking. With its efficient battery performance and flexible operating system, it can freely shuttle in narrow warehouse aisles and is an ideal choice for improving efficiency and space utilization in modern warehouse management.
Advantages:
1. Turning speed limited, high speed limited, mast buffer and other safety functions escort;.
2. Electric steering, easy to operate rod design and multi-functional intelligent instrument panel, with wheel display function, easy to operate, with soft cushion, reduce driving fatigue ;
3. The whole system is equipped with wireless camera, video color display and rotary positioning function of cargo fork, which makes stacking more safe and efficient ;



Specifiction parameters
| Specification | ||||
| Manufacturer | - | Noelift | Noelift | |
| Operation type | - | Standing posture | Standing posture | |
| Model | - | TC10-60 | TC15-60 | |
| Power type | - | Full-Electric | Full-Electric | |
| Capacity | kg | 1000 | 1500 | |
| Max lifting height | mm | 6000 | 6000 | |
| Load center | mm | 500 | 500 | |
| Wheel type | - | Pu solid tire | Pu solid tire | |
| Fork dimensions | mm | 1070*100*35 | 1070*125*50 | |
| Fork spread | - | 260-820 | 265-760 | |
| Overall length including fork | mm | 2890 | 3010 | |
| Overall width | mm | 1370 | 1550 | |
| Height-mast Lowered | mm | 3250 | 3125 | |
| Turning radius | mm | 1880 | 2000 | |
| The height of overhead guards | mm | 2325 | 2280 | |
| Min ground clearance | mm | 40 | 40 | |
| Max travel speed | km/h | 7.0/8.0 | 6.8/7.8 | |
| Lifting speed | mm/s | 180/315 | 120/270 | |
| Total weight | kg | 5250 | >5600 | |
| Driving wheel | mm | Φ380×165 | Ø382*142 | |
| front wheel | mm | Φ140×100 | Ø145*100 | |
| Balance wheel | mm | Φ204×76 | Ø180*76 | |
| Battery capacity | V/Ah | 48V /400 AH | 48/400 | |
| Charger-intelligent | V/A | 48V /50 A | 48/50 | |
| Driving motor | kw | 5.5 (AC) | 5.0(AC) | |
| Lifting motor | kw | 7.5 | 7.5(DC) | |
| Transmission controller type | - | Electric | Electric | |
| Walking adjustable type | - | Holzer type accelerator | Holzer type accelerator | |
| Braking type | - | Electromagnetic | Electromagnetic |
|
Products Certifications

FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warrarnty, spare parts delivery within one week for free.
Products Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
