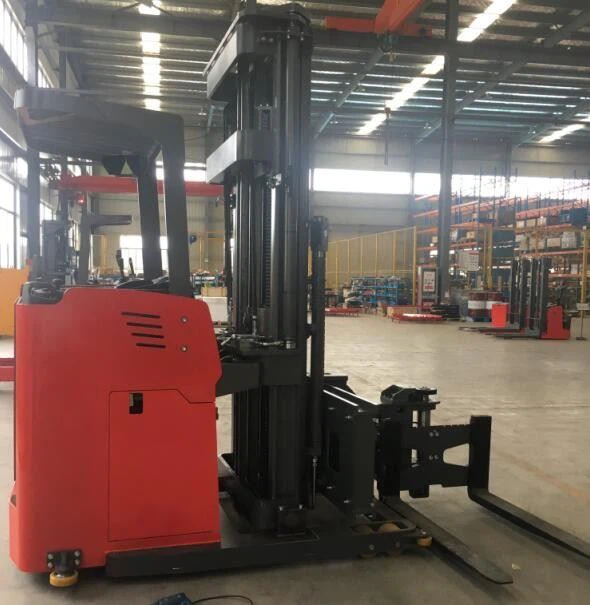

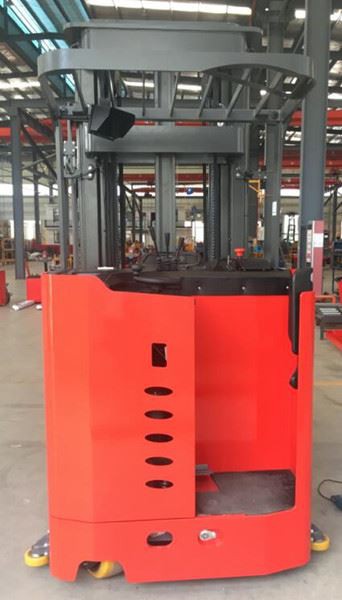

TC1045 1ton High-position Three-way Stacker
Product Description
| Brand | NOELIFT | |
| Model | TC10 （Duplex mast) | |
| Power type | Battery | |
| Operation type | Stand on | |
| Rated capacity | Q(kg) | 1000 |
| Load center | C(mm) | 500 |
| Front overhang | x(mm) | 657 |
| Wheelbase | y(mm) | 1605 |
| Service weight(incl.battery) | kg | 4235 |
| Wheel type | PU | |
| Load wheel | mm | φ140×100 |
| Drive wheel | mm | φ380×165 |
| Auxiliary wheel | mm | φ204×76 |
| Number of wheels,front/rear(x=drive wheel) | 4 /1x+2 | |
| Wheel tread,drive side | b10(mm) | 726 |
| Wheel tread,load side | b11(mm) | 1210 |
| Mast closed height | h1(mm) | 2595 |
| Free lift height | h2(mm) | 0 |
| Lift height | h3(mm) | 3000 |
| Mast extended height with load backrest | h4(mm) | 4085 |
| Overhead guard height | h6(mm) | 2260/2300 |
| Stand board height | h7(mm) | 355 |
| Overall length | l1(mm) | 2906 |
| Overall width | b1(mm) | 1450 |
| Fork size | l/e/s(mm) | 1000/125/50 |
| Installation level | II A | |
| Fork outside width | b5(mm) | 265~760 |
| Min.ground clearance | m1(mm) | 40 |
| Aisle width for pallet 1000x1000mm | Ast(mm) | 1500 |
| Turning radius | Wa(mm) | 1880 |
Company profile
NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1 to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.
We have invested two industrial base in Hefei city and Luan city of anhui province and zhejiang province with covering an area of 97,000 square meters and more than 410 employees and 190 millions U.S.Dollars of total assets. we have annual production output capacity 4,980 units forklifts and 7,580 units warehouse equipments. The company have advance producing equipment with automatic painting line, vehicle assembly line, CNC flame plasma cutting machine, drilling machines, system intergrated coating equipment, as well as international advanced performance testing of production line, which all are fully guanranteed our products quality and ensure the business growth.
Certificate
packing
Other products
Noelift catalog
1-12tons diesel forklift truck & 1-3.5tons gasoline/lpg forklift truck
1-5tons electric forklift truck, 3-6m
1-2.5tons electric reach truck,1.6-12.5m
1-2tons electric pallet stacker,1.6-5.5m
1-8tons electric pallet truck
0.3/1.0t electric order picker, 1.6-5.0m
Very narrow aisle forklift truck, 3-12.5m
Customize design model
More than 100 model for your optional.
More about NOELIFT , PLEASE CHECK WITH OUR WEBSITE: WWW.NOELIFT.COM
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
L/C, Wester union
